12. Application Example: AP + WDS Bridge / WDS Bridge + AP Mode
133
AirLive WLA-9000AP User’s Manual

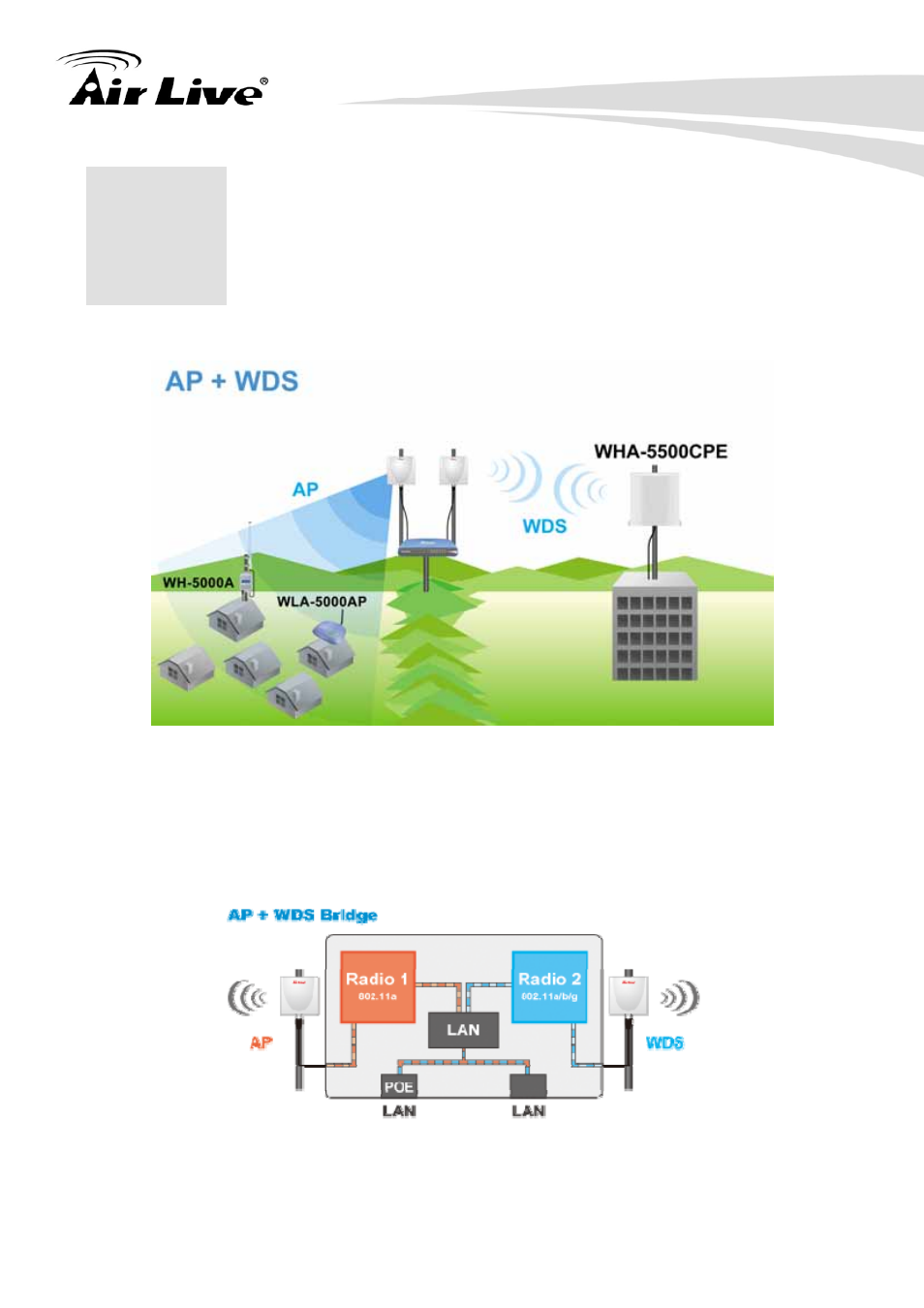

In this mode, one Radio is in Access Point mode and the other in WDS Bridge Mode.
z
In this mode, the AP can act as a signal repeating station in a wireless backbone
network. In addition, it can also function as directing station for NLOS application.
z
The image in AP + WDS Bridge / WDS Bridge + AP mode UI helps to indicate data flow
related to the Wireless and the Ethernet ports.
12
12.
Application Example:
AP + WDS Bridge / WDS
Bridge + AP Mode
