8. Application Example: Duplex Mode
AirLive WLA-9000AP User’s Manual 126

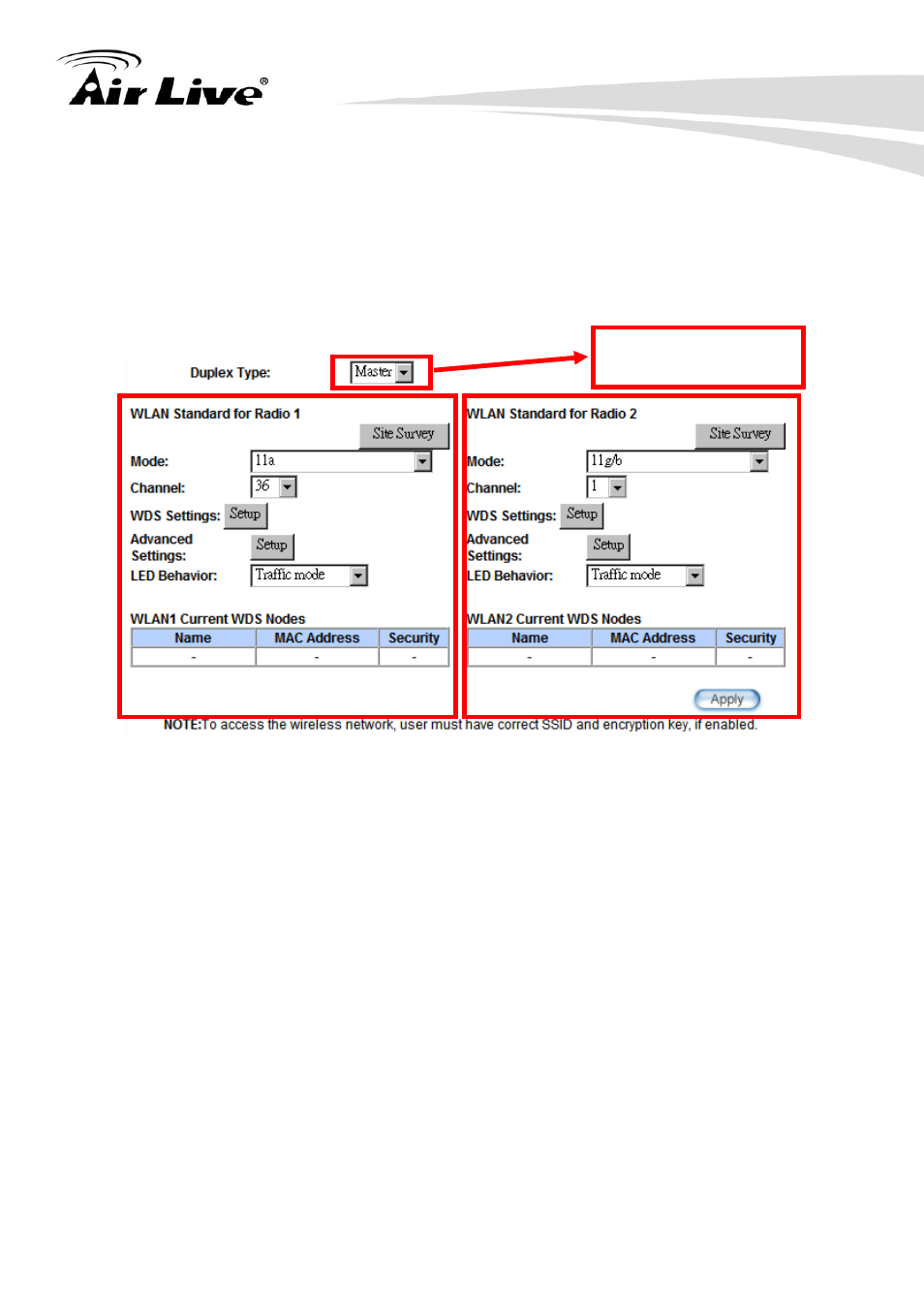

z The image in Duplex mode UI helps to indicate data flow related to the Wireless and
the Ethernet ports.
Both radios are using WDS mode for communication.
One WLA-9000AP is configured as a Master where as the other WLA-9000AP is configure
to be a Slave.
To configure the WDS mode, please refer to section 4.4 WDS Bridge Settings.
One set to Master, the
other set to Slave
WDS Mode WDS Mode
