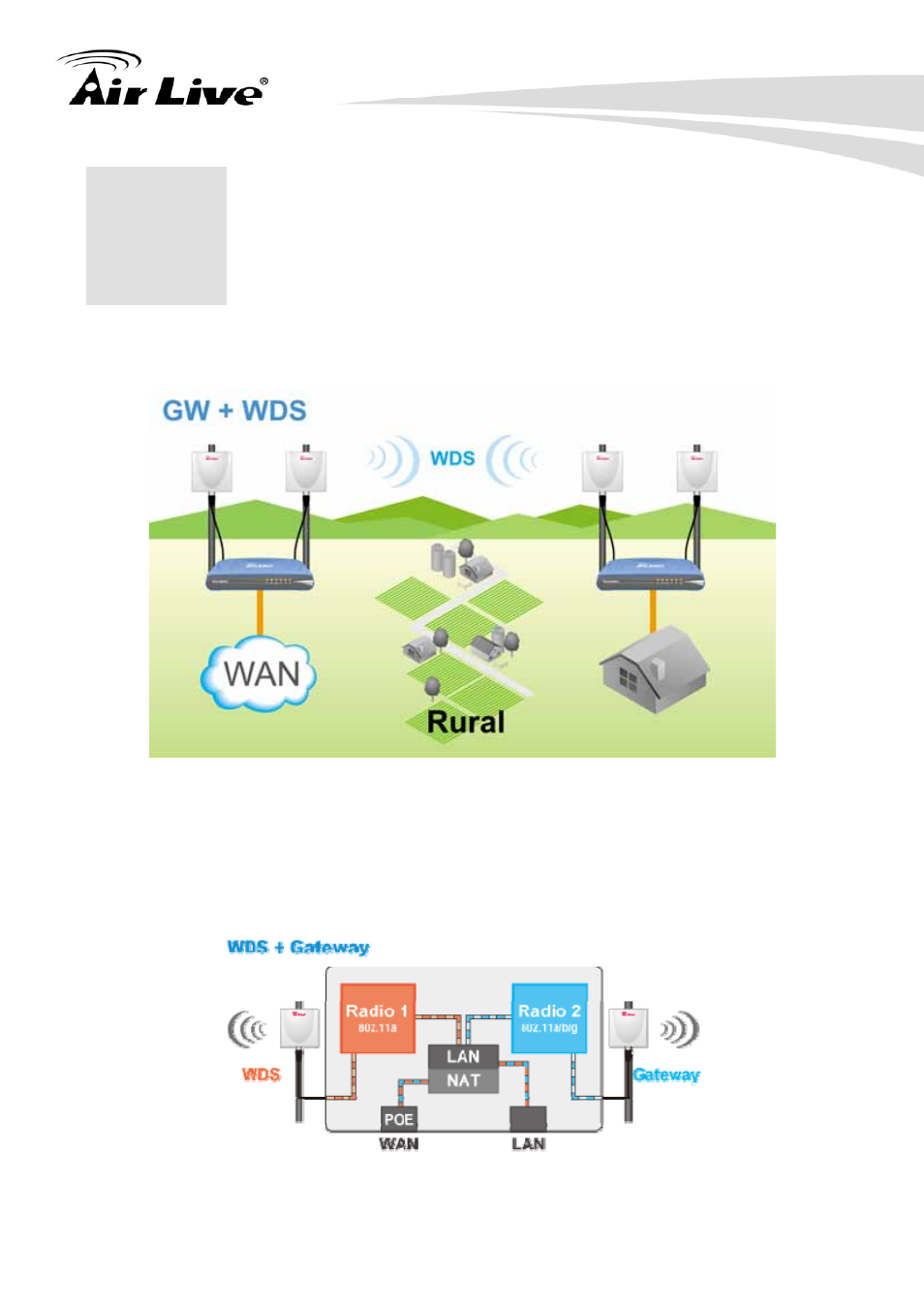

13. Application Example: WDS + Gateway / Gateway + WDS Mode
135
AirLive WLA-9000AP User’s Manual
In this mode, one radio acts as an AP router and the other a WDS bridge. One of the RJ-45
ports as the WAN interface to the internet.
z
The remote location can access the internet by way of this Access Point which acts as
a gateway device of the network.
z
The image in WDS + Gateway / Gateway + WDS mode UI helps to indicate data flow
related to the Wireless and the Ethernet ports.
13
13.
Application Example:
WDS + Gateway /
Gateway + WDS
