4. Wireless and WAN Settings
79
AirLive AirMax DUO Lite User’s Manual
Because the Ethernet interface is also controlled by the Bandwidth Manager, it is
recommended that devices on the Ethernet side to use a wider IP subnet mask that will
cover the IP range of the controlled IP segment. Therefore, the devices on Ethernet
interface will not be limited by bandwidth control and still can communicate with the IP
segment. For example, if your IP segment is set to 192.168.1.20 / 255.255.255.248, then
the devices on the Ethernet side should be 192.168.1.X / 255.255.255.0.
MAC address: To limit the bandwidth of one single MAC address
Port Range: This is available only in WISP router and AP Router
mode. It can limit the bandwidth by application ports.
Application: This option is available only in WISP router and AP Router
mode. It can limit the bandwidth of HTTP, FTP, BitTorrent, and eDonkey
traffic.
Downlink Max: Enter the speed you wish to limit the download traffic in kbps
Uplink Max: Enter the speed you wish to limit the upload traffic in kbps

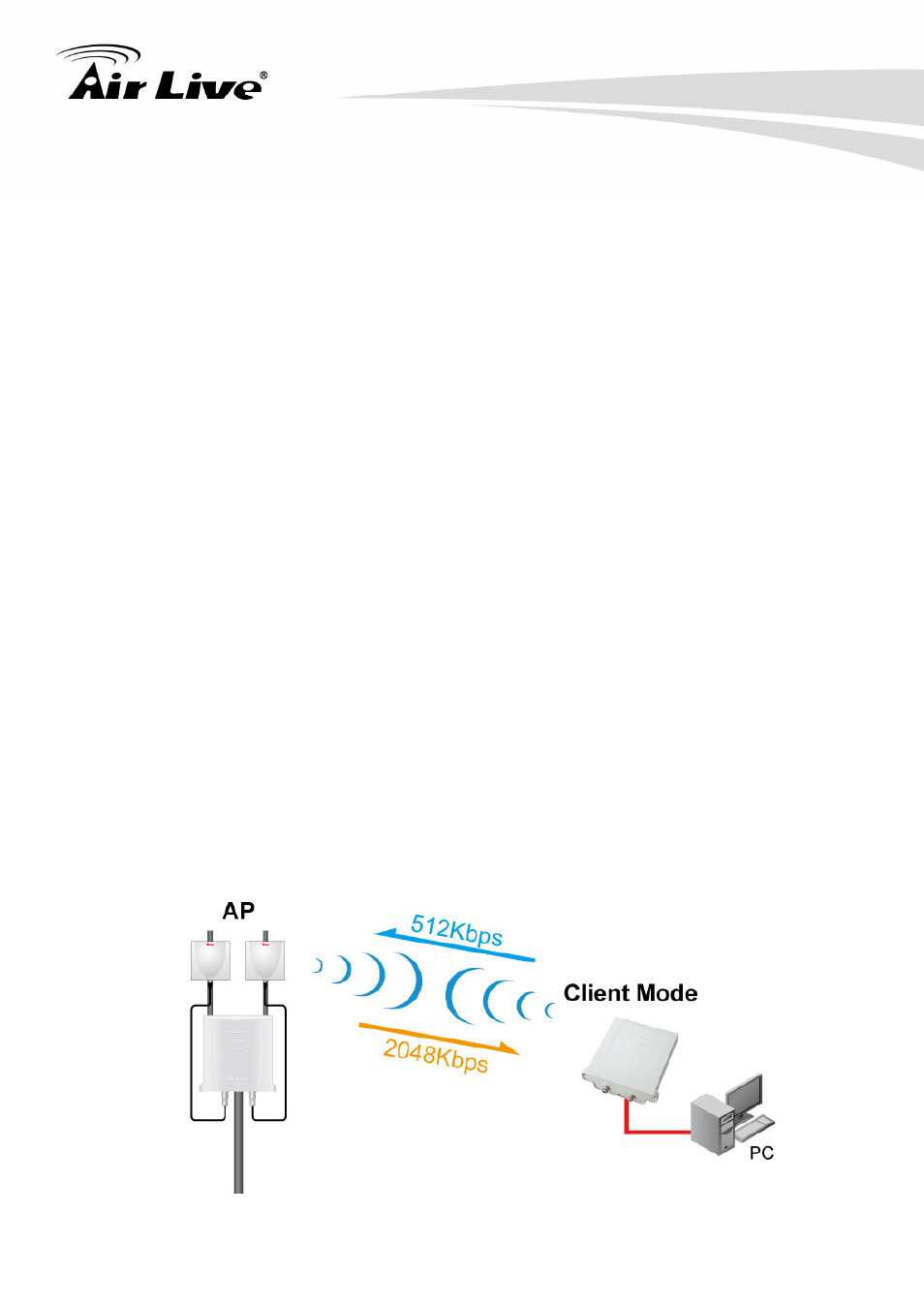

Example 1: Total Bandwidth Control
In this example, the AirMax DUO Lite is in Client Infrastructure mode connecting to a
remote AP. We want to limit the Bandwidth of the link to 2048Kbps download and
512kbps Upload.
