1.5.6 AP + WDS Bridge / WDS Bridge + AP Mode
In this mode, one Radio works as Access Point and the other one is WDS Bridge.
In this mode, the AP can act as a signal repeating station in a wireless backbone
network. In addition, it can also function as directing station for NLOS application.

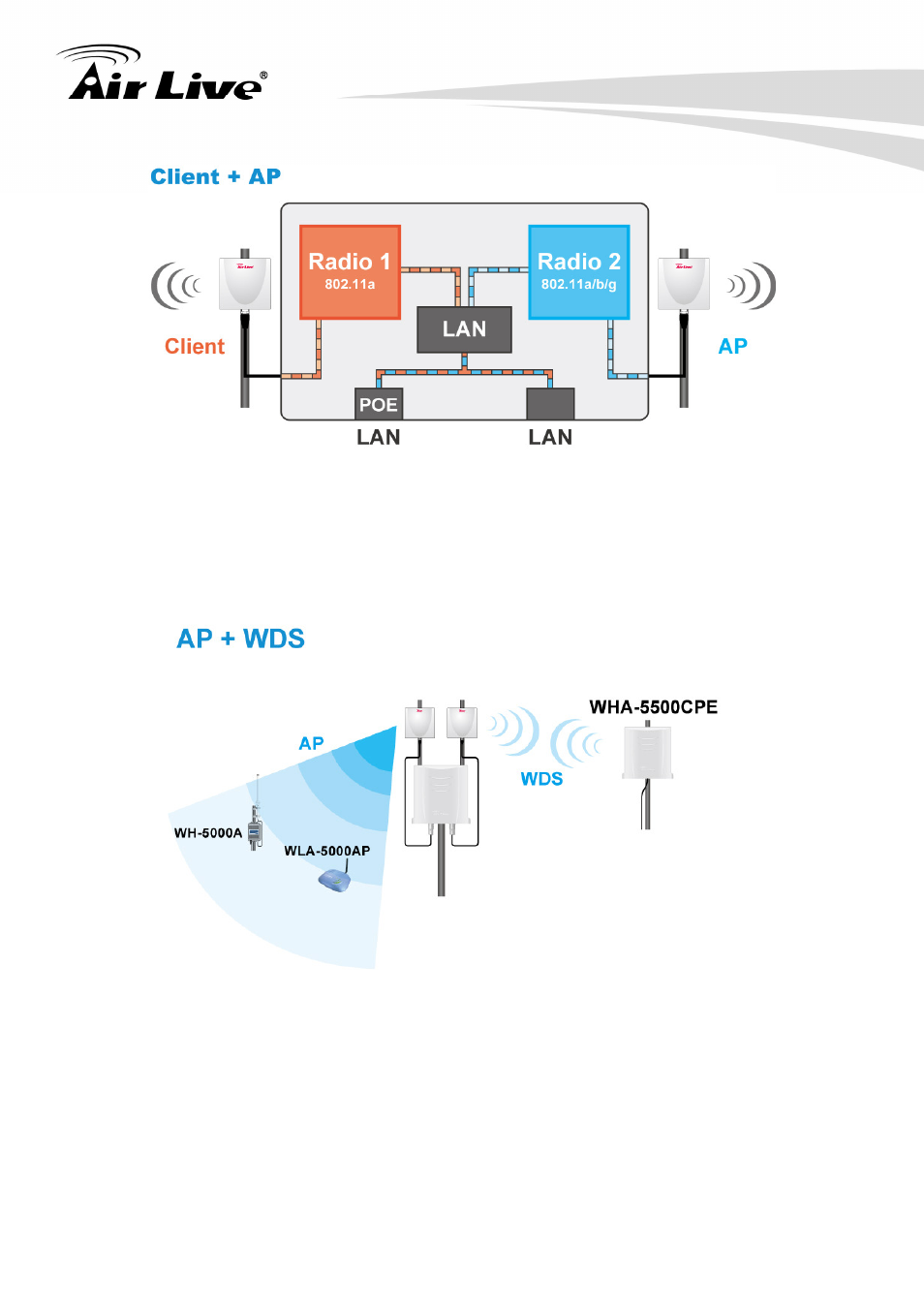

The image in AP + WDS Bridge / WDS Bridge + AP mode diagram helps to indicate
data flow related to the Wireless and the Ethernet ports.
