4. Wireless and WAN Settings
AirLive AirMax DUO Lite User’s Manual 66
4.2.12 Multiple SSID
Operation Mode -> Setup -> Multiple SSID
This function is available only for Access Point and AP Router modes. Multiple SSID allows
AirMax DUO Lite to create up to 4 different wireless networks (SSID). It is also known as
“Virtual AP” function. Each SSID can have its Encryption type, VLAN Tag, and TOS

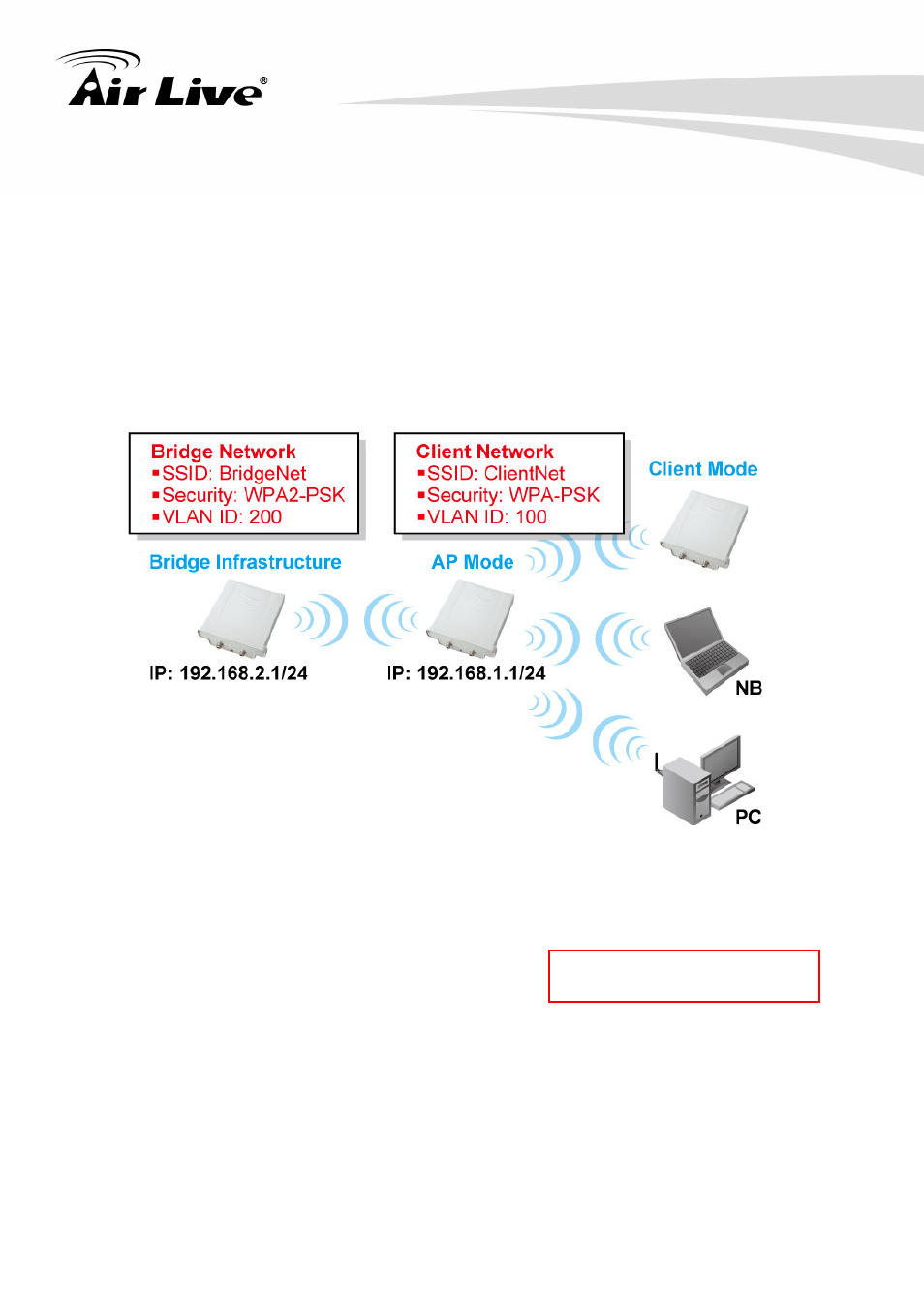

settings. In the following diagram, the AirMax DUO Lite uses Multiple SSID function to
create separate Bridge and Client network. Each has its own encryption policies.
Configuring the Multiple SSID
When you click on the “Multiple SSID” button, the following screen will appear.
Click here to Apply changes in
“VLAN” and “DiffServe Marking”
