The image in Duplex mode diagram helps to indicate the data flow related to the
Wireless and the Ethernet ports.
1.5.3 Dual WDS Bridge Mode
In Dual WDS Bridge mode, both wireless interface of AirMax DUO Lite are set as WDS
Bridge and connect to remote network. When configured in the Dual WDS Bridge mode,
AirMax DUO Lite allows solving discontinuous link due to geographical obstacles, shown as
below and extension of distance between two WDS bridge nodes separated by a building.
In this mode, the AP can act as a signal repeating station in a wireless backbone
network. In addition, it can also function as directing station for NLOS application.

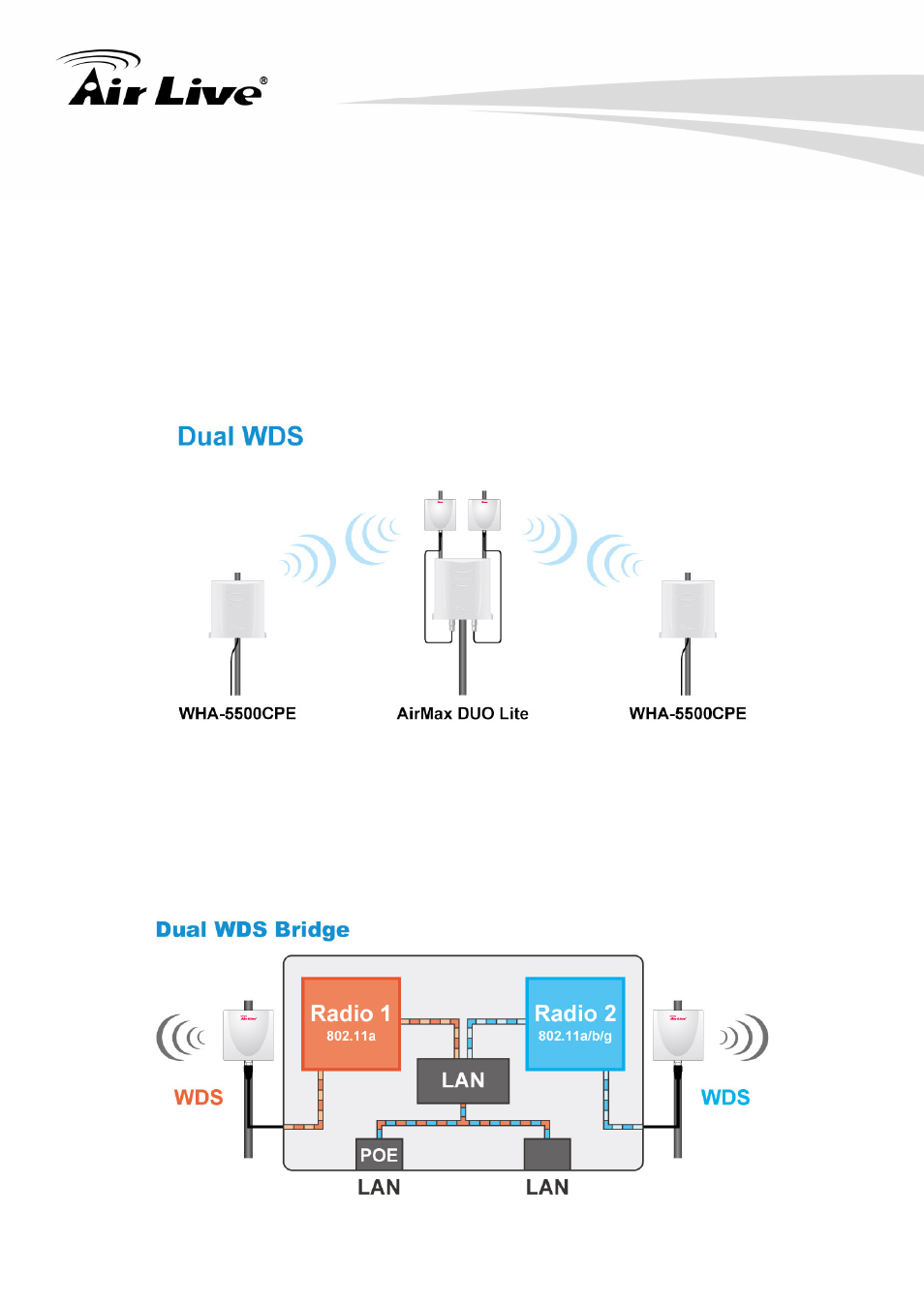

The image in Duplex WDS Bridge mode diagram helps to indicate the data flow related
to the Wireless and the Ethernet ports.
