4. Wireless and WAN Settings
119
AirLive AirMax DUO Lite User’s Manual

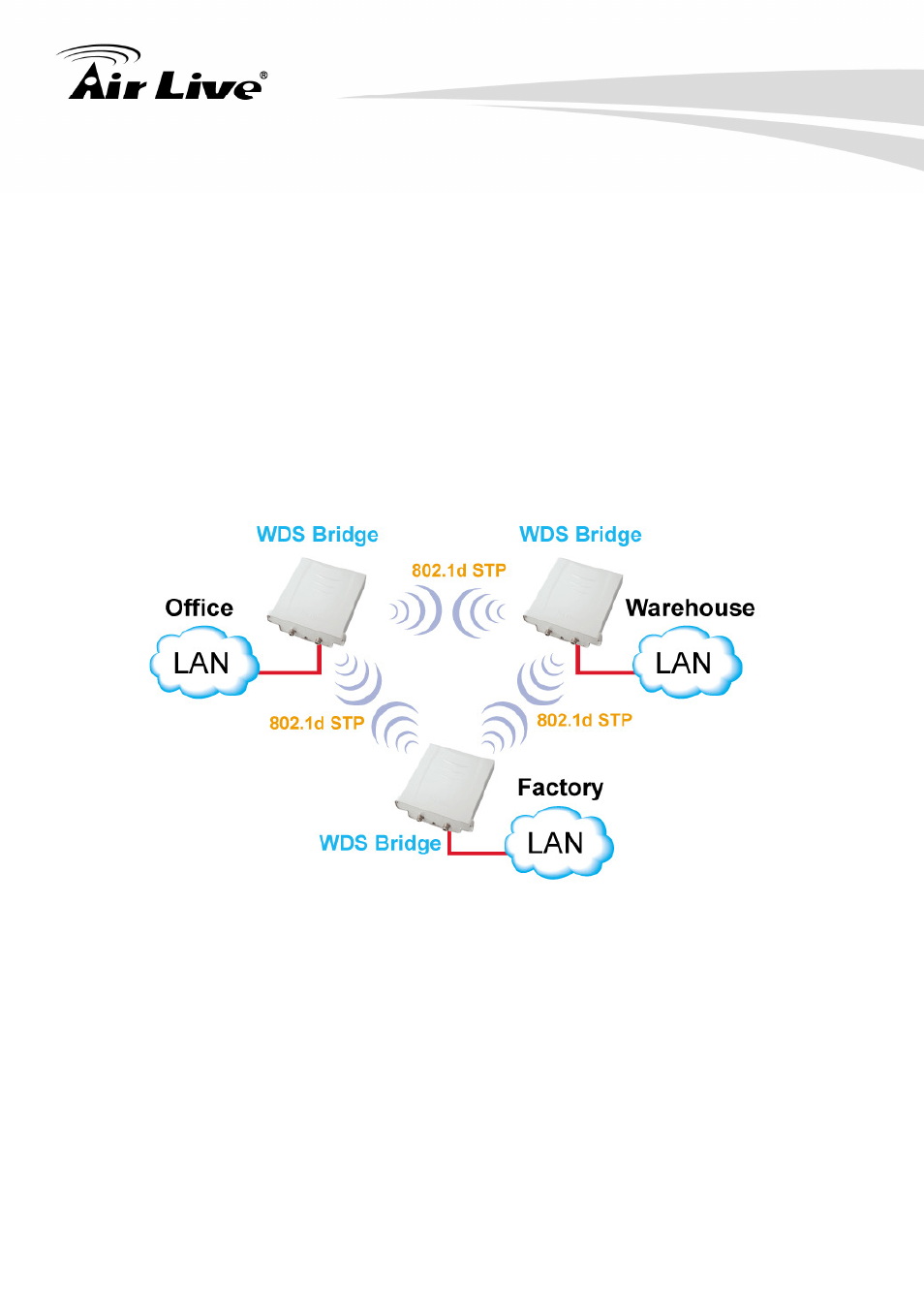

4.8.3 WDS Bridge Mode
This mode is also known as “WDS Pure MAC mode”. When configured to operate in the
Wireless Distribution System (WDS) Mode, the AIRMAX DUO LITE provides bridging
functions with remote LAN networks in the WDS system. The system will support up to total
of 8 bridges in a WDS network (by daisy chain). However, each bridge can only associate
with maximum of 4 other bridges in the WDS configuration. This mode is best used when
you want to connect LAN networks together wirelessly (for example, between office and
warehouse). If you have more than 2 AP in WDS Bridges mode, please remember to turn
on the “802.1d Spanning Tree” or “STP” option on to avoid network loop. This mode usually
delivers faster performance than infrastructure mode.
