4. Wireless and WAN Settings

109

AirLive AirMax DUO Lite User’s Manual

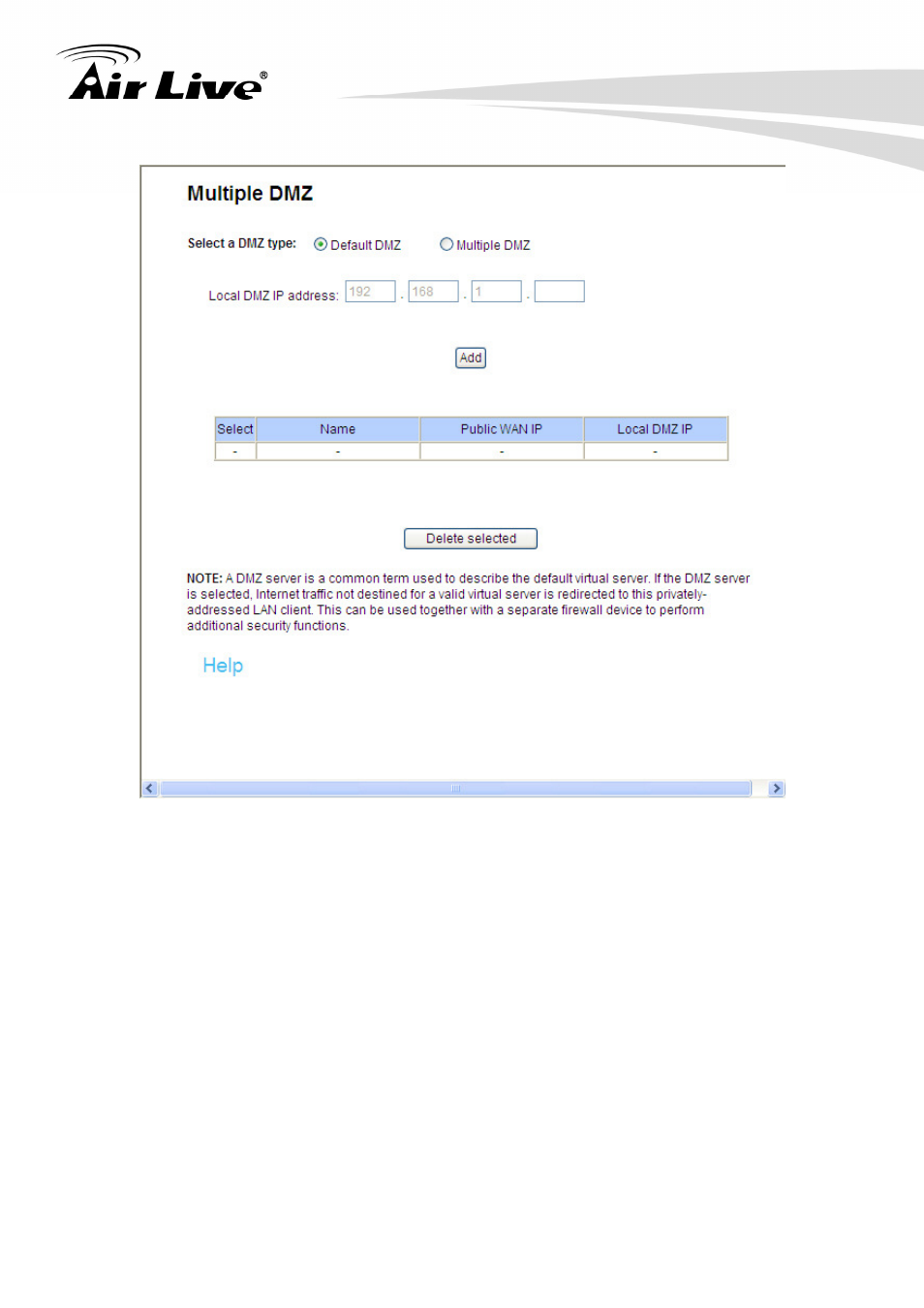

Select a DMZ type and then enter the local DMZ IP address

Note: A DMZ server is a common term used to describe the default virtual server. If the

DMZ server is selected, Internet traffic not destined for a valid virtual server is redirected to
this privately addressed LAN client. This can be used together with a separate firewall

device to perform additional security functions.

4.7.4 Virtual Server Settings

Operation Mode -> Setup -> Virtual Setting

This allows you to specify one or more applications running on server computers on the
LAN that may be accessed by any Internet user. Internet data destined for the specified

public port will be directed to the specified private port number on the LAN client with the

specified private IP address.
