2. Installing the AirMax DUO Lite
AirLive AirMax DUO Lite User’s Manual 20

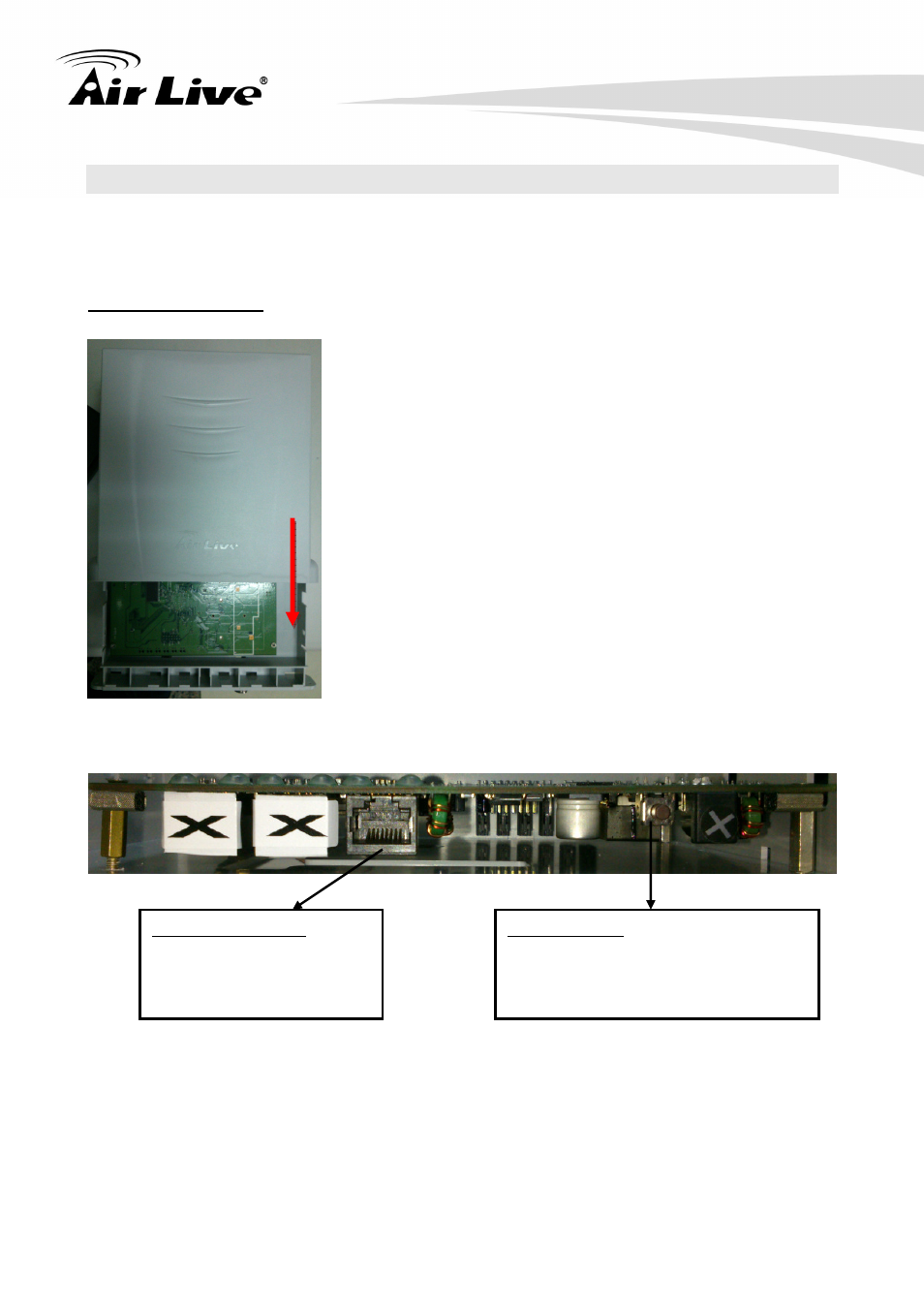

2.3 Knowing Your AirMax DUO Lite
The main connecters are on the inside PCBA of AirMax DUO Lite. Once you pull out the
PCBA, you will see those connectors on the top side of it.
Upside of the PCBA
Pull Out
RJ-45 & PoE Port
Connect to the Ethernet
Cable Reset Button
Press this button for resetting the
AirMax DUO Lite
