4.2.16 RSSI LED Threshold

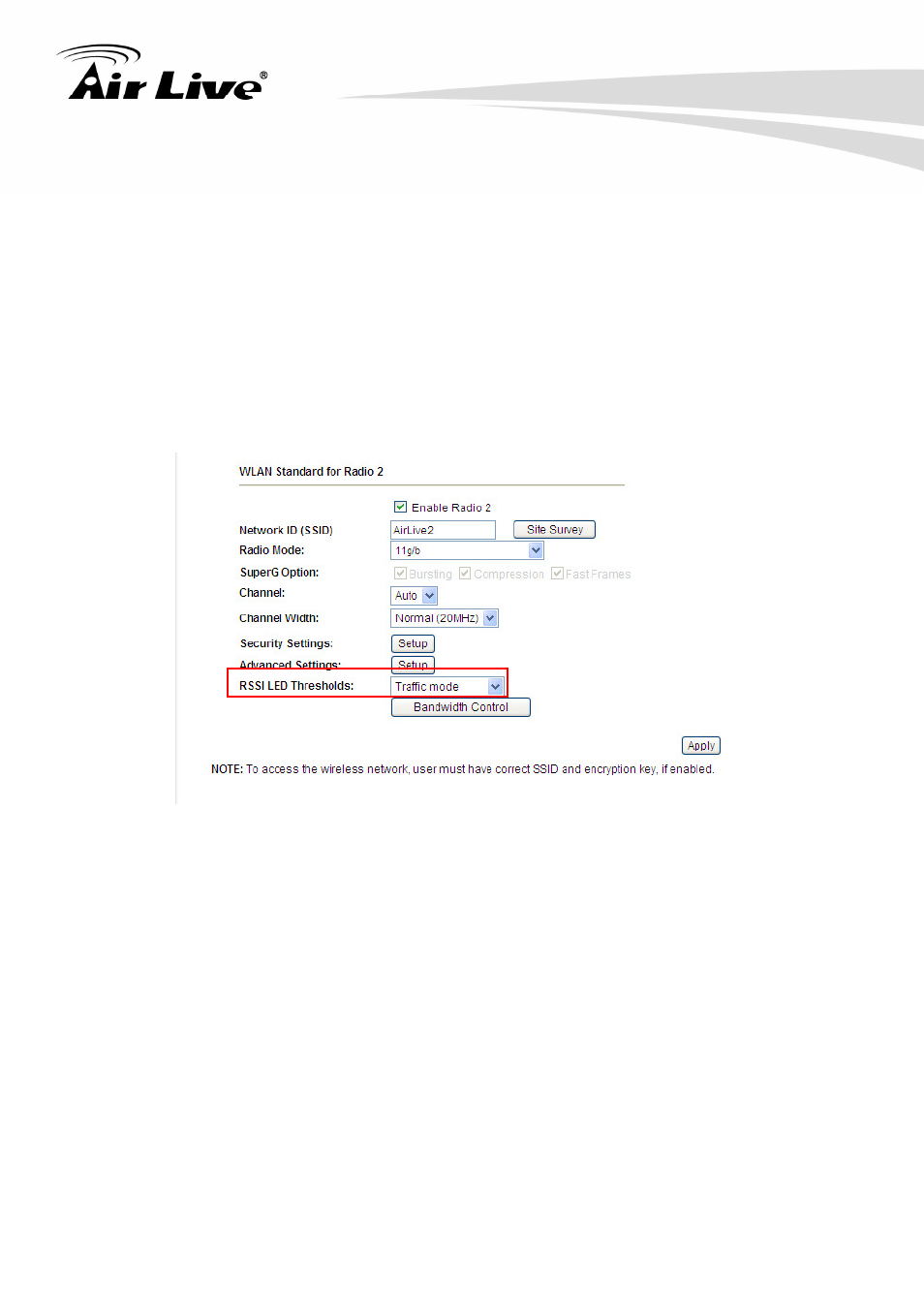

Operation Mode (Client/Bridge Mode) -> Setup -> RSSI LED Threshold
The AirMax DUO is equipped with 2 LEDs to indicate the signal strength of current
connection or data traffic indicator. It is very useful in helping you to align the antenna or
monitor the data flow status. There are two types of RSSI LED Thresholds which are
“Traffic Mode” and “Installation Mode”. Please note that this setting only appears in Client
and Bridge modes.
Traffic Mode: Indicates the data traffic transmission of current connection.
LED steady on when Radio is enabled
Blink once per second when connection established
Installation Mode: Indicates the signal strength of current connection and
helps installer to align the antenna for the best reception.
Weak Signal: -80dBm, flash every 2 seconds
Medium Signal: -60dBm, flash every second
Strong Signal: -40dBm, flash twice per second
Full Signal: -20dBm, steady On
