1. Introduction
AirLive AirMax DUO User’s Manual 12
1.5.5 AP + Client / Client + AP Mode
In this mode, one station works as an intermediate station. This enable the AP to link with
remote stations using client mode, then distribute the signal to other clients using AP mode.
In this application, Either Radio 1 or Radio 2 is in AP Mode, the other Radio is in Client
mode.

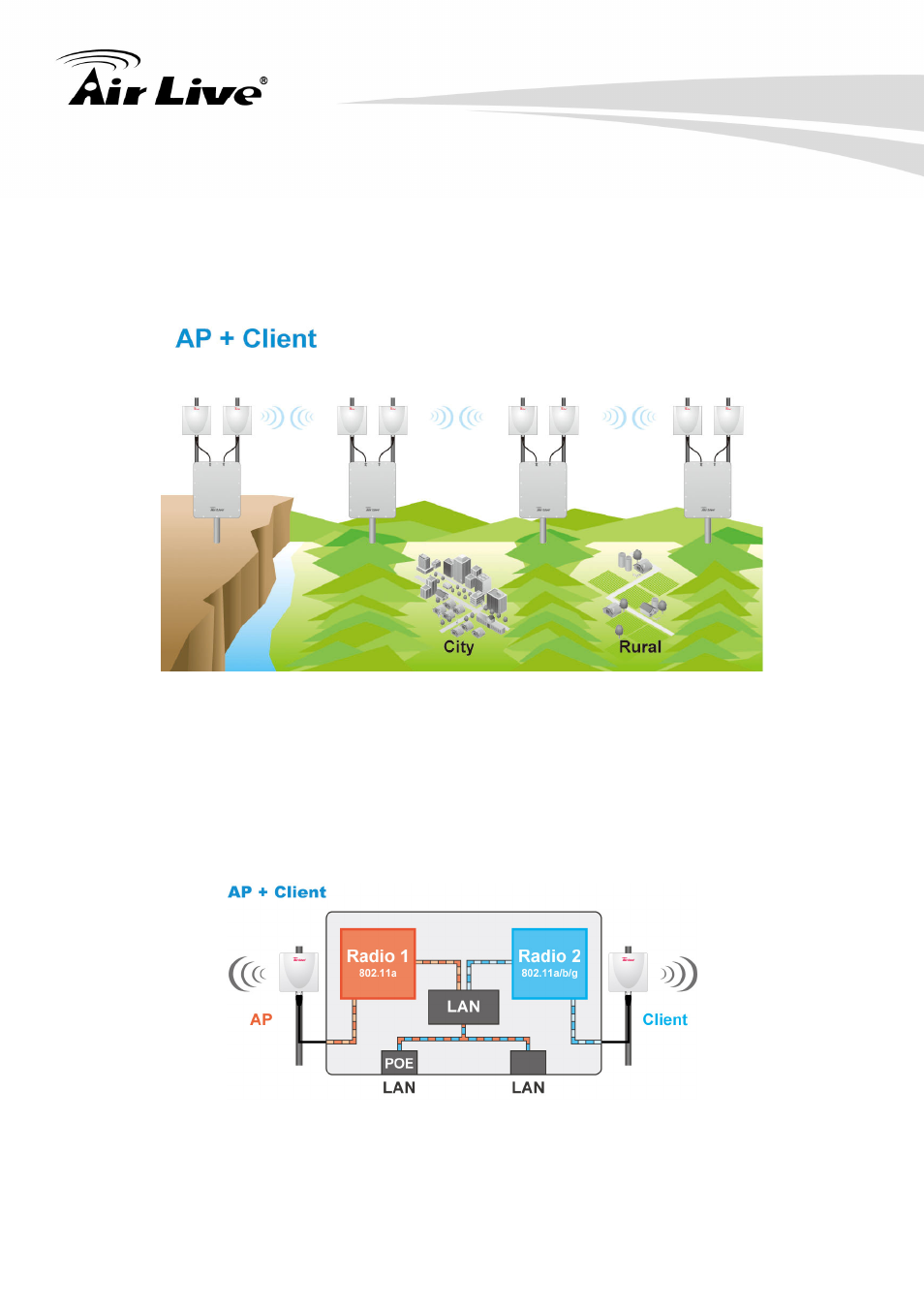

The image in AP + Client / Client + AP mode diagram helps to indicate the data flow
related to the Wireless and the Ethernet ports.
