AirLive AirMax DUO - Manual (Page 128)

4. Wireless and WAN Settings
AirLive AirMax DUO User’s Manual 120

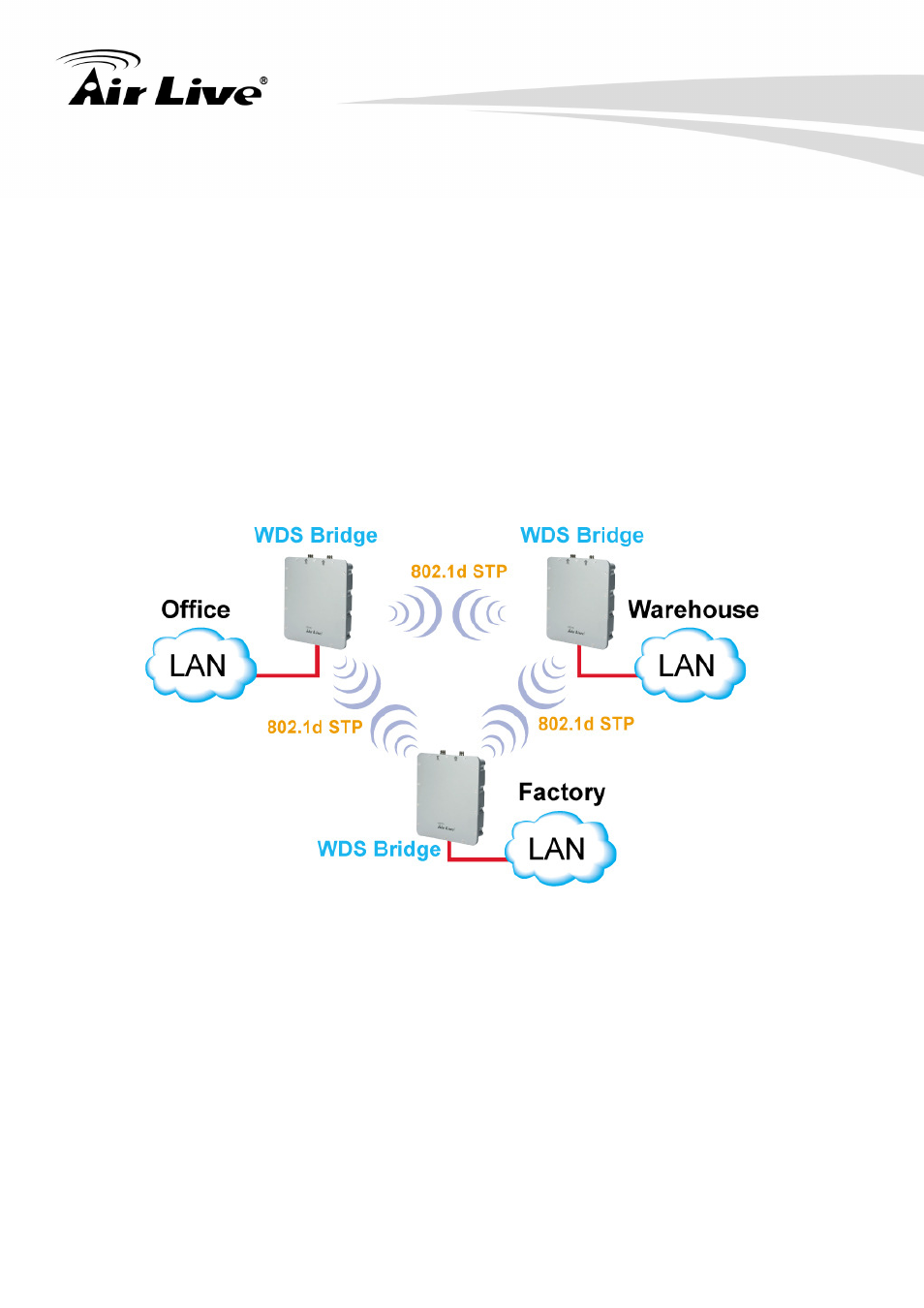

4.8.3 WDS Bridge Mode
This mode is also known as “WDS Pure MAC mode”. When configured to operate in the
Wireless Distribution System (WDS) Mode, the AIRMAX DUO provides bridging functions
with remote LAN networks in the WDS system. The system will support up to total of 8
bridges in a WDS network (by daisy chain). However, each bridge can only associate with
maximum of 4 other bridges in the WDS configuration. This mode is best used when you
want to connect LAN networks together wirelessly (for example, between office and
warehouse). If you have more than 2 AP in WDS Bridges mode, please remember to turn
on the “802.1d Spanning Tree” or “STP” option on to avoid network loop. This mode usually
delivers faster performance than infrastructure mode.
