AirLive AirMax DUO - Manual (Page 117)

4. Wireless and WAN Settings
109 AirLive AirMax DUO User’s Manual

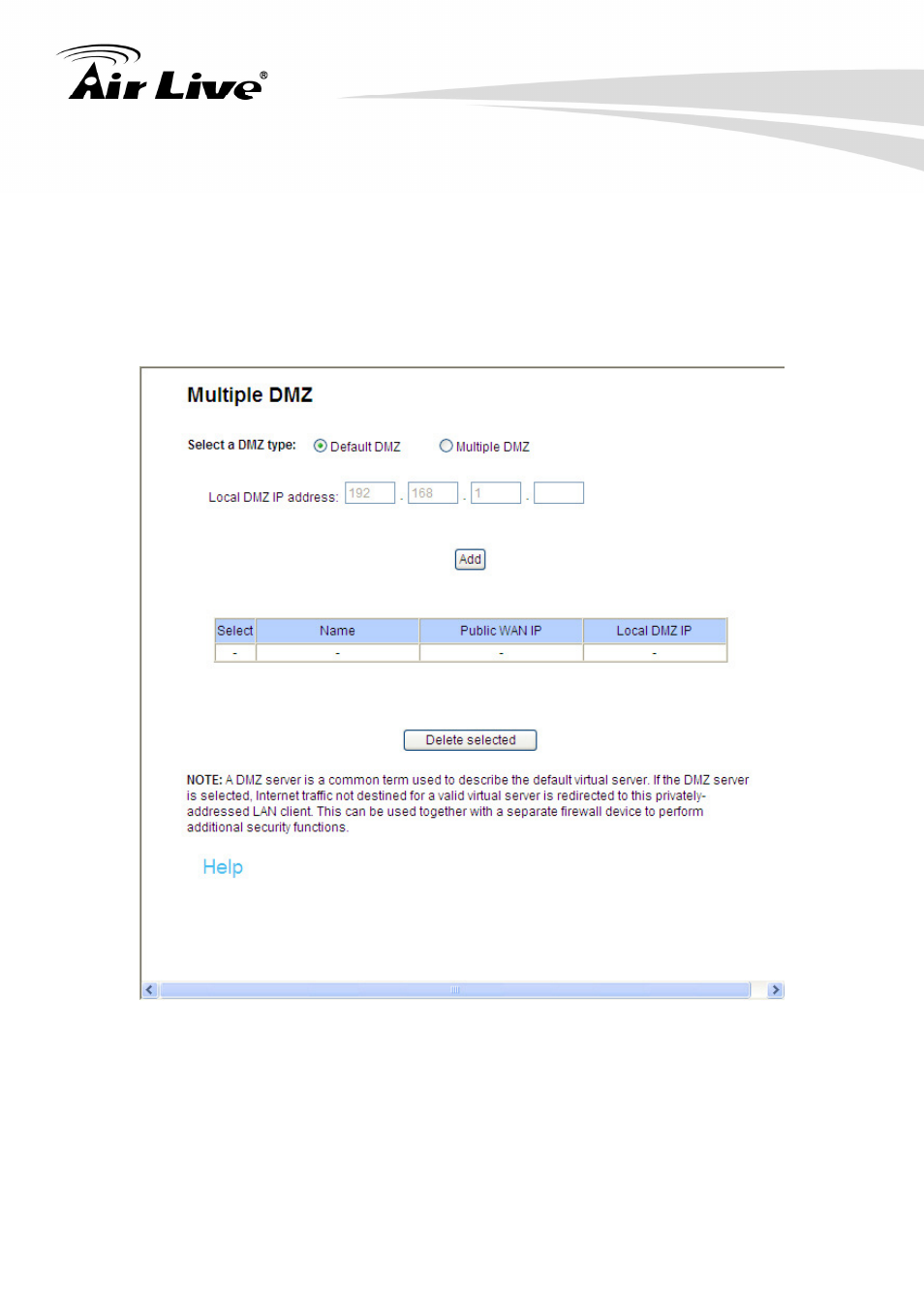

4.7.3 Multiple DMZ
Operation Mode -> Setup -> Multiple DMZ
Multiple DMZ opens all TCP/UDP ports to particular IP address on the LAN side. It allows
setting up servers behind the AirMax DUO.
Select a DMZ type and then enter the local DMZ IP address
Note: A DMZ server is a common term used to describe the default virtual server. If the
DMZ server is selected, Internet traffic not destined for a valid virtual server is redirected to
this privately addressed LAN client. This can be used together with a separate firewall
device to perform additional security functions.
