SECTION 3 - SCISSORS ARMS

112

2032ES/2632ES

3121682

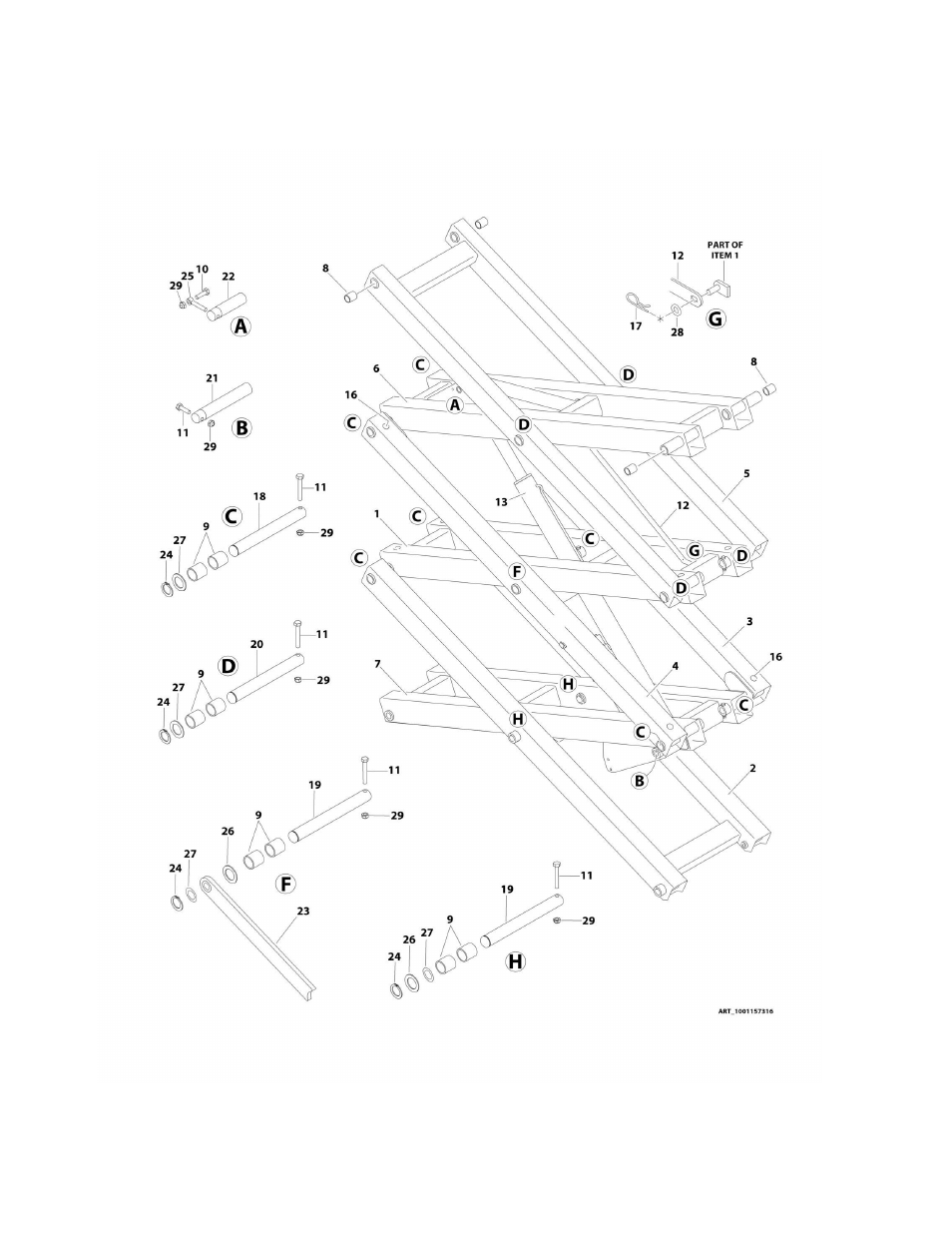

FIGURE 3-2. SCISSORS ARMS ASSEMBLY - 2032ES STANDARD HYDRAULIC OIL (USA BUILT

MACHINES)
