If the main hydraulic system fails, the aerial platform
may be lowered and stowed using the emergency power
system. The main boom may be lowered using the emer-
gency lowering knob. The machine may be towed if the
drive system fails. Refer to Emergency Power System,
Emergency Lowering, or Towing for the appropriate
procedure.
Emergency Power System
The emergency power system can be used to operate
the machine from the lower or upper controls.
Caution
The emergency power system is for emergency low-
ering and stowing only. The length of time the pump
can be operated depends on the capacity of the bat-
tery. Do not use this system for normal operation.
Only use the emergency power system if the main power
system fails.
Lower Controls
Use the following procedure to operate the machine using
the emergency power system from the lower controls.
. Place the battery disconnect switch in the on position
(refer to Figure 0.).

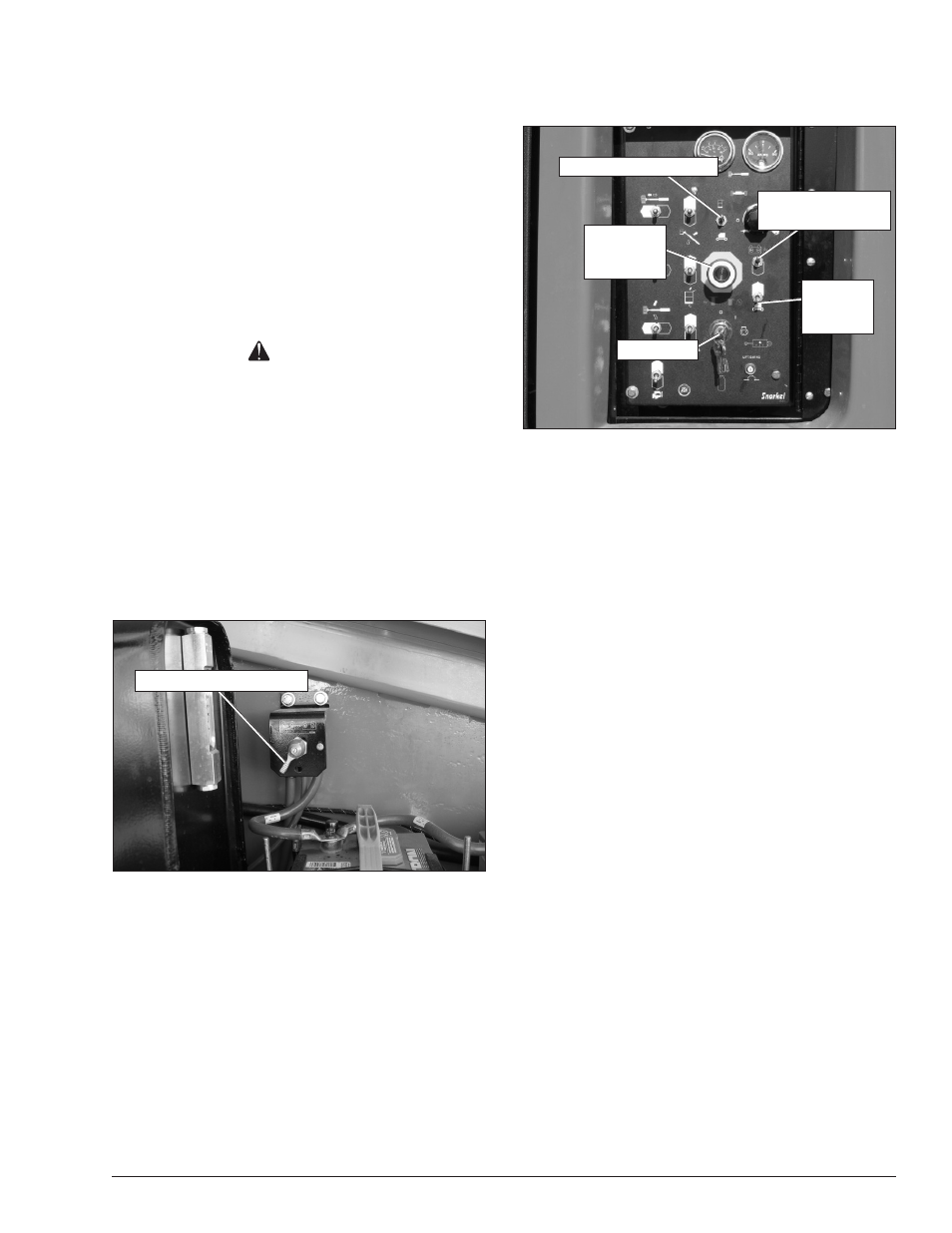

Figure 10.1 – Battery Disconnect Switch
2. Place the key in the start switch (refer to Figure 0.2)
and turn the start switch to the on position.
3. Pull the emergency stop button outward.
Chapter 10 – Emergency Operation
Figure 10.2 – Lower Controls
4. Place the controls switch in the lower control posi-
tion.
5. Hold the ground operation switch in the on position
while holding the engine/emergency power switch in
the emergency power position.
6. Hold the appropriate function toggle switch in the
desired direction.
Upper Controls
For the upper controls to be operational:
• The battery disconnect switch must be in the on posi-
tion.
• The start switch at the lower controls must be turned
on.
• The emergency stop button at the lower controls must
be in the on position.
• The control selector switch at the lower controls must
be in the upper controls position.
Use the following procedure to operate the machine using
the emergency power system from the upper controls.
. Pull the emergency stop button outward (refer to
Figure 0.3).
2. Turn the start switch on.
Battery Disconnect Switch
Ground
Operation
Switch
Engine/Emergency
Power Switch
Start Switch
Control Selector Switch
Emergency
Stop
Button
