Circuit Breaker Reset Buttons
The wiring box has a circuit breaker for the throttle, run,
and main electrical circuits. There is a reset button for
each circuit breaker on the front of the wiring box (refer
to Figure 6.3).

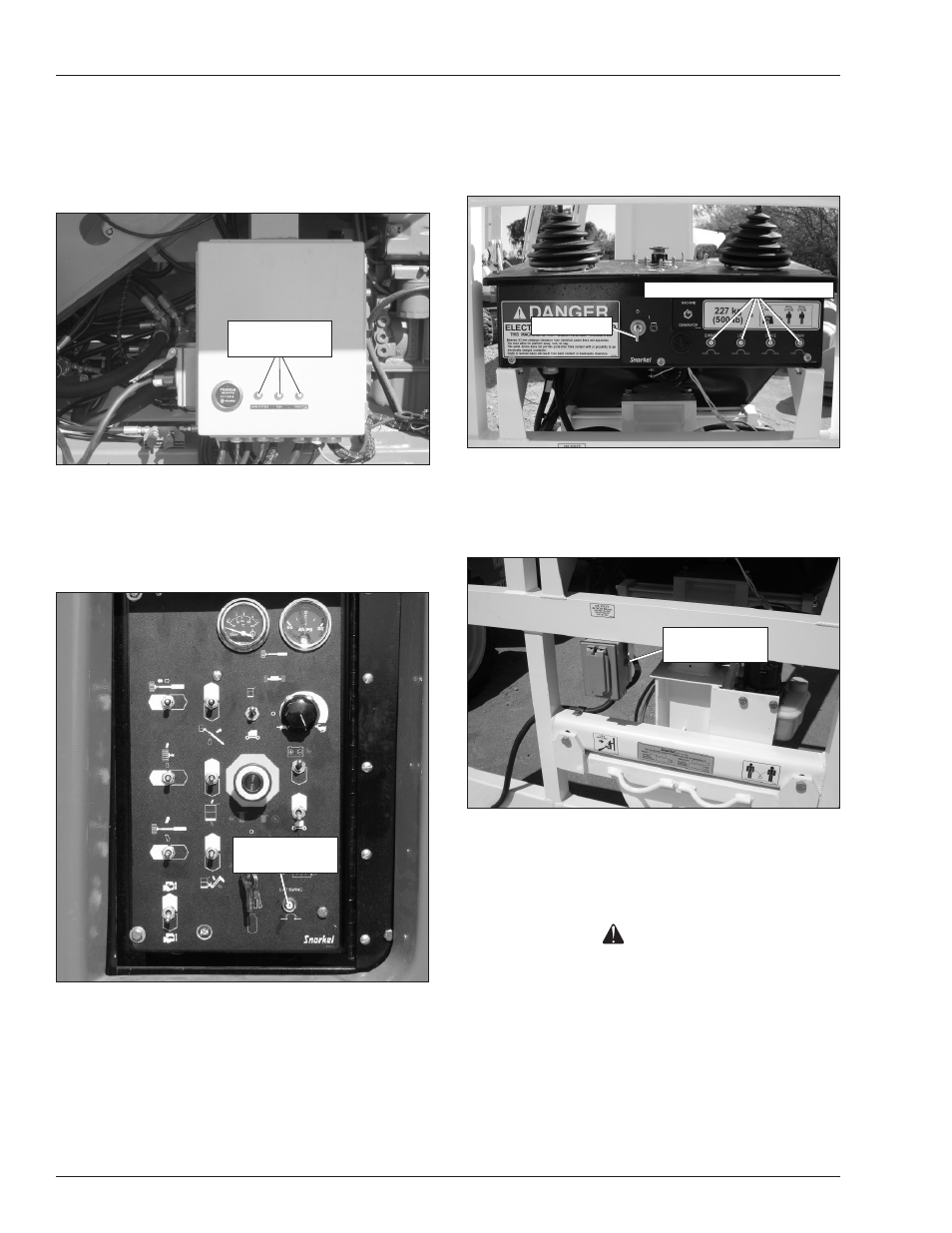

Figure 6.3 – Wiring Box
The lower control box has a circuit breaker for the lift
(boom raise) and swing (turntable rotation) electrical
circuits. The reset button for this circuit breaker is on the
front of the lower control box (refer to Figure 6.4).
Figure 6.4 – Lower Controls
The upper control panel has a circuit breaker for the swing
(turntable rotation), lift, drive, and main control circuits.
The circuit breakers are on the front of the upper control
panel (refer to Figure 6.5).
Figure 6.5 – Upper Control Panel Front
The electrical power outlet at the platform has a 5 amp
circuit breaker. The reset button is on the right side of the
electrical box (refer to Figure 6.6).
Figure 6.6 – Electrical Power Outlet
The circuit breakers protect the electrical wiring and
components from electrical overload in case of a short
circuit or other fault.
Caution
A tripped circuit breaker indicates a malfunction in
the electrical system. Component damage can result
if the cause of the malfunction is not corrected. Do
not operate the aerial platform if the circuit breaker
trips repeatedly.
Push the button to reset the circuit breaker.
Circuit Breaker
Reset Buttons
Start Switch
Circuit Breaker Reset Buttons
Circuit Breaker
Reset Button
Circuit Breaker
Reset Button
