Chapter 10 – Stowing and Transporting
S2633 – 8210048 41

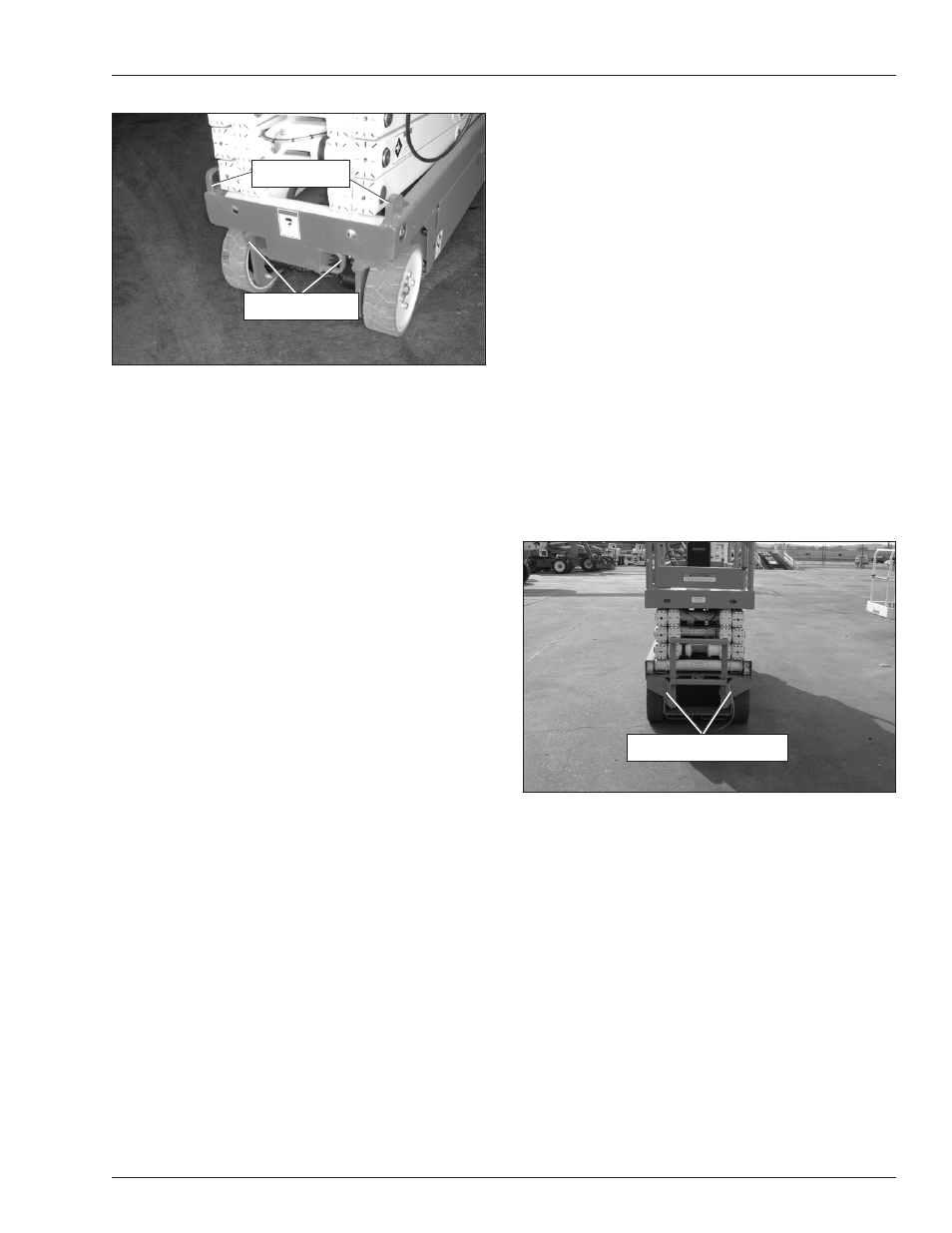

Figure 10.5 – Front of Machine
10. Remove the wheel chocks and use the winch to
position the aerial platform on the transport vehicle.
A
Warning
The aerial platform is free to move when the brakes
are released. Death or serious injury could result.
Re-enable the brakes before operating the aerial
platform.
11. After moving the aerial platform, using a 5 mm Allen
wrench turn the inner plugs as far as possible coun-
terclockwise and the outer plugs as far as possible
clockwise and replace the thread protector (refer to
Figure 10.4).
Turn the nuts alternately in ½ turn increments to
insure uniform adjustment and prevent binding.
12. After unloading the aerial platform from the transport
vehicle, verify that the drive system and brakes oper-
ate properly before operating the aerial platform.
Hoisting
Use a four point sling arrangement attached to the lifting
lugs when hoisting the aerial platform. Machine damage
can occur if the sling is attached anywhere else.
A
Warning
The potential for an accident increases when the
aerial platform is lifted using improper equipment
and/or lifting techniques. Death or serious injury
could result from such accidents. Use proper equip-
ment and lifting techniques when lifting the aerial
platform.
Know the weight of the aerial platform and the capacity
of the lifting devices before hoisting.
Lifting devices include the hoist or crane, chains,
straps, cables, hooks, sheaves, shackles, slings, and
other hardware used to support the machine.
y
y
Lifting Lugs
Tie-Down Lugs
Lifting Lugs
Tie-Down Lugs
The empty vehicle weight is stamped on the serial
number placard and is listed in Chapter 2.
The user assumes all responsibility for:
Making sure the equipment used is capable of sup-
porting the weight of the aerial platform.
Making sure all manufacturer’s instructions and warn-
ings, regulations and safety rules of their employer
and/or any state or federal law are followed.
Use the following procedure to hoist the aerial platform
onto the transport vehicle:
1. Properly stow the aerial platform.
2. Inspect the front lifting lugs and the rear lifting lugs
(refer to Figures 10.5 and 10.6) to make sure they
are free of cracks and are in good condition. There
are two lugs on the rear of the chassis and four on
the front. Have any damage repaired by a qualifi ed
service technician before attempting to hoist the
machine.
Figure 10.6 – Rear of Machine
3. Remove all personnel, tools, materials, or other loose
objects from the platform.
4. Connect the chains or straps to the lifting lugs using
bolted shackles. Hooks that fi t properly in the lugs
and that have latching mechanisms to prevent them
from falling out under a slack line condition may also
be used.
Do not run the sling cable through the lifting lugs.
Cable damage and/or failure can result from the
cable contacting the sharp corners of the lug.
There is no effective way of putting a corner
protector in the hole of the lug.
y
y
y
y
y
Tie-Down/Lifting Lugs Tie-Down/Lifting Lugs
