Chapter 9 – Operation
S2633 – 8210048 37

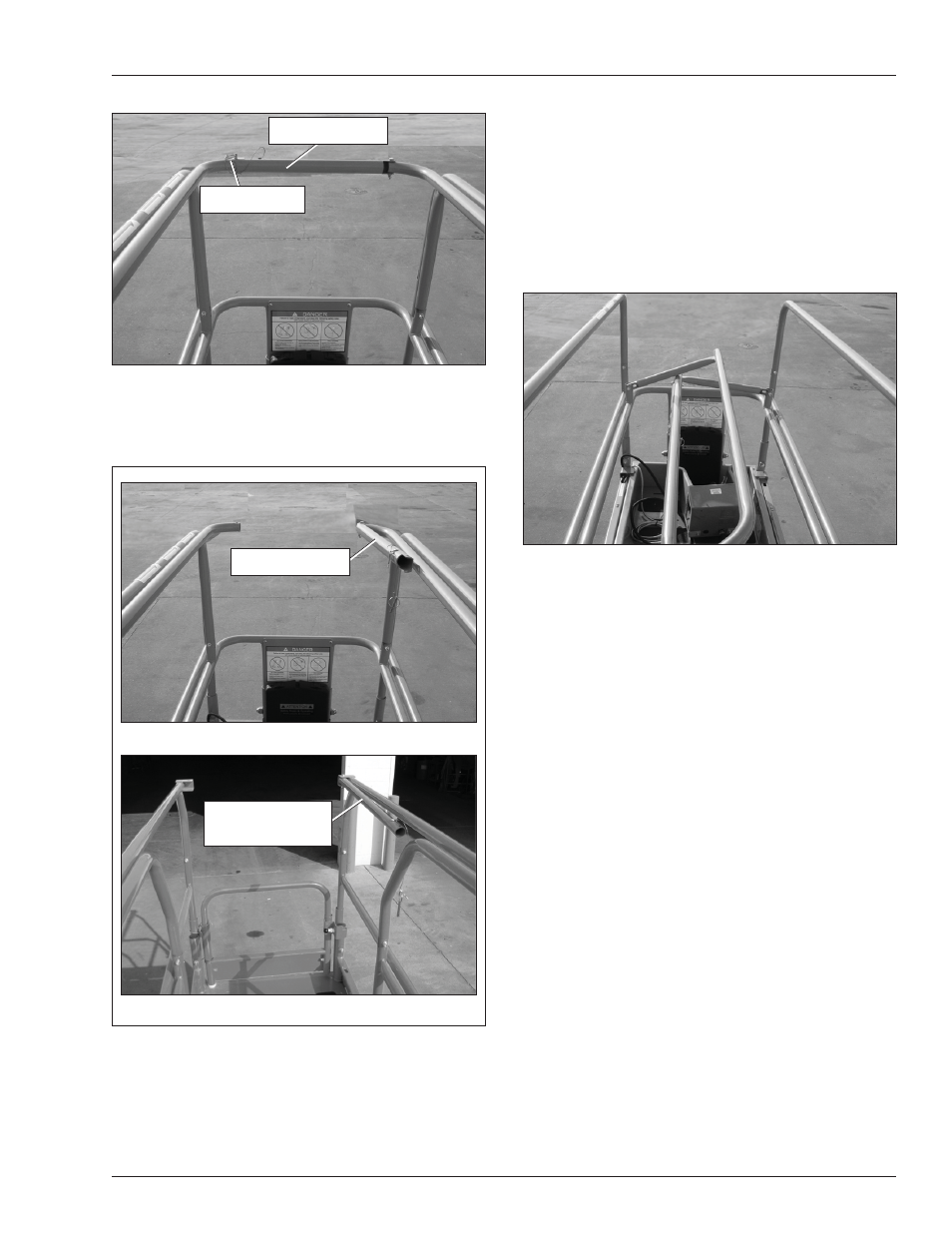

Figure 9.6 – Front Guardrail
6. Rotate the wallboard loading gate and the front
guardrail inward (refer to Figure 9.7).
Front of Platform
Rear of Platform
Figure 9.7 – Front Guardrail and Wallboard
Loading Gate Rotated Inward
Front Guardrail
Retaining Pin
Front Guardrail
Retaining Pin
Wallboard Loading
Gate
Front Guardrail
Wallboard Loading
Gate
Front Guardrail
A
Caution
The rails are free to move downward after lifting up
on them. Improper lifting can cause personal injury.
Be prepared to hold the weight of the rails before
beginning to lower them.
7. Starting with the platform extension guardrails and
then the side guardrails, lift up on each guardrail and
fold it inward (refer to Figure 9.8).
Figure 9.8 – Fold Down Guardrails
Use the following procedure to reassemble the guard-
rails before operating the aerial platform from the upper
controls:
1. Fully raise the side guardrails to the upright position
and push downward on them making sure they se-
curely set into the platform (refer to Figure 9.8).
2. Fully raise the platform extension side guardrails to
the upright position and push downward on them
making sure they securely set into the platform.
3. Rotate the wallboard loading gate and the front guard-
rail outward and secure them to the side guardrails us-
ing the retaining pin (refer to Figures 9.5 and 9.6).
A
Warning
The potential for an accident increases from improp-
erly driving or steering the aerial platform. Death
or serious injury could result from such accidents.
Make sure the upper control panel is at the front of
the platform, hooked on the guardrail, and hanging
inside the platform with the red upper control box
arrow facing the front of the platform.
4. Replace the upper control panel at the front of the
platform, hooked on the guardrail, and hanging inside
the platform (refer to Figure 9.9).
In this position the red upper control box arrow
will point towards the front of the machine.
