S2633 – 8210048 13
The aerial platform is equipped with a display screen, an
hour meter and a battery charge indicator to monitor the
condition of the machine before and during operation.
Display Screen
An LED display screen is located on the upper control
panel (refer to Figure 5.1).

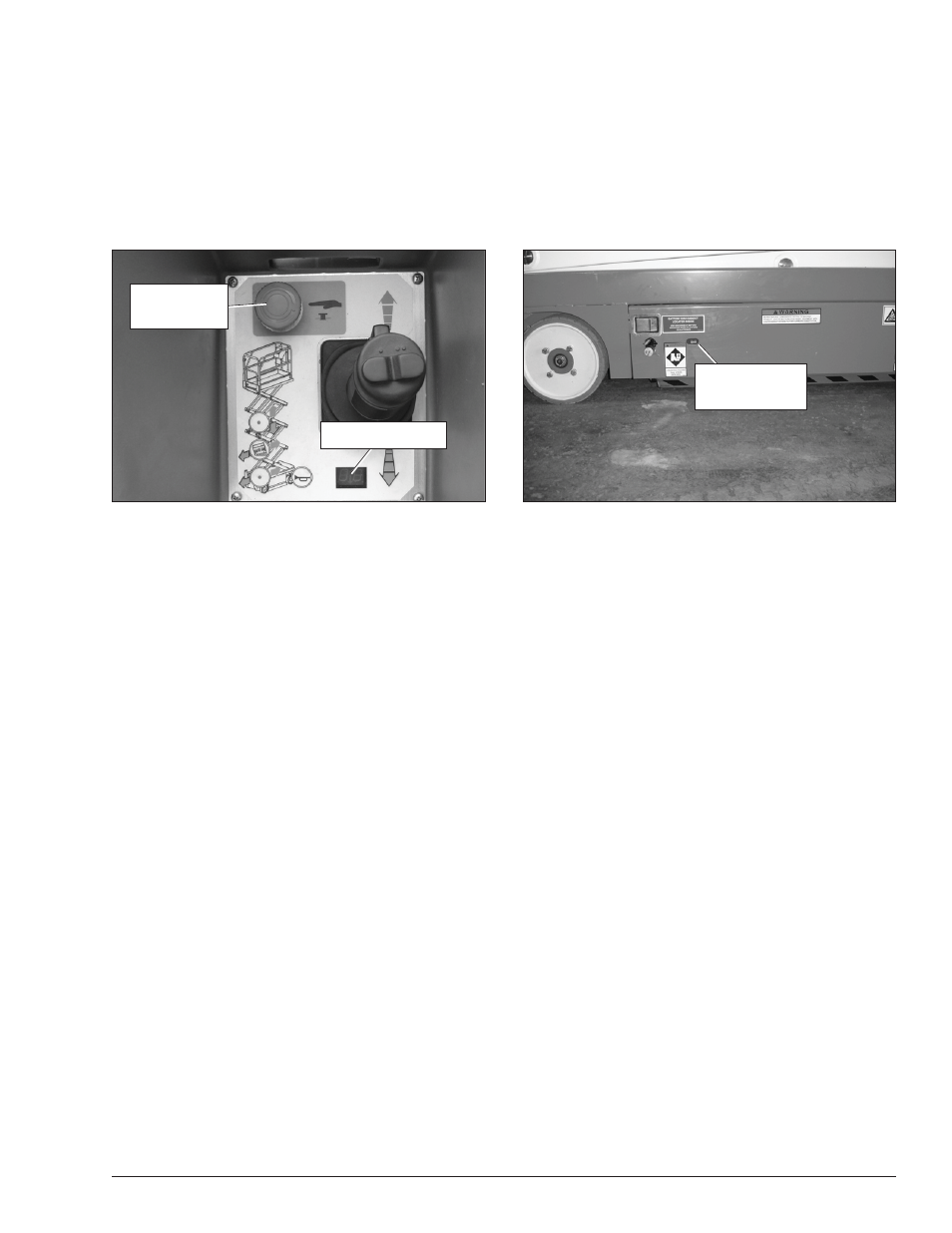

Figure 5.1 – Upper Controls
The display screen shows:
general operators information.
fault codes used to locate and eliminate situations
where machine operation may be interrupted.
Note
Refer to Chapter 12 for a list of fault codes.
Hour Meter
The hour meter is part of the digital display on the upper
control panel (refer to Figure 5.1). It measures the ac-
cumulated aerial platform operating time.
To view the hour meter reading:
1. From the lower controls, twist the emergency stop
button clockwise to the on position and turn the start
switch on.
2. From the upper controls, push the emergency stop
button inward.
3. Press and hold the platform raise/lower and horn but-
tons and twist the emergency stop button to restore
power. The display should now have “hr” shown.
4. Press the right side of the steer switch to scroll
through the hour meter reading, two digits at a
time.
For example, if pressing the switch slowly three times
displays “10” followed by “40” and then “hr” after the
third time, the accumulated aerial platform operating
time is 1,040 hours.
y
y
Display Screen
Emergency
Stop Button
Display Screen
Emergency
Stop Button
5. Push the emergency stop button inward.
Battery Charge Indicator
The battery charge indicator is located at the right side of
the chassis (refer to Figure 5.2). When the batteries are
charging, the battery charge indicator displays the level
of charge in the batteries.
Figure 5.2 – Battery Tray
Battery Charge
Indicator
Battery Charge
Indicator
Chapter 5 – Gauges and Displays
