Chapter 9 – Operation
38 S2633 – 8210048

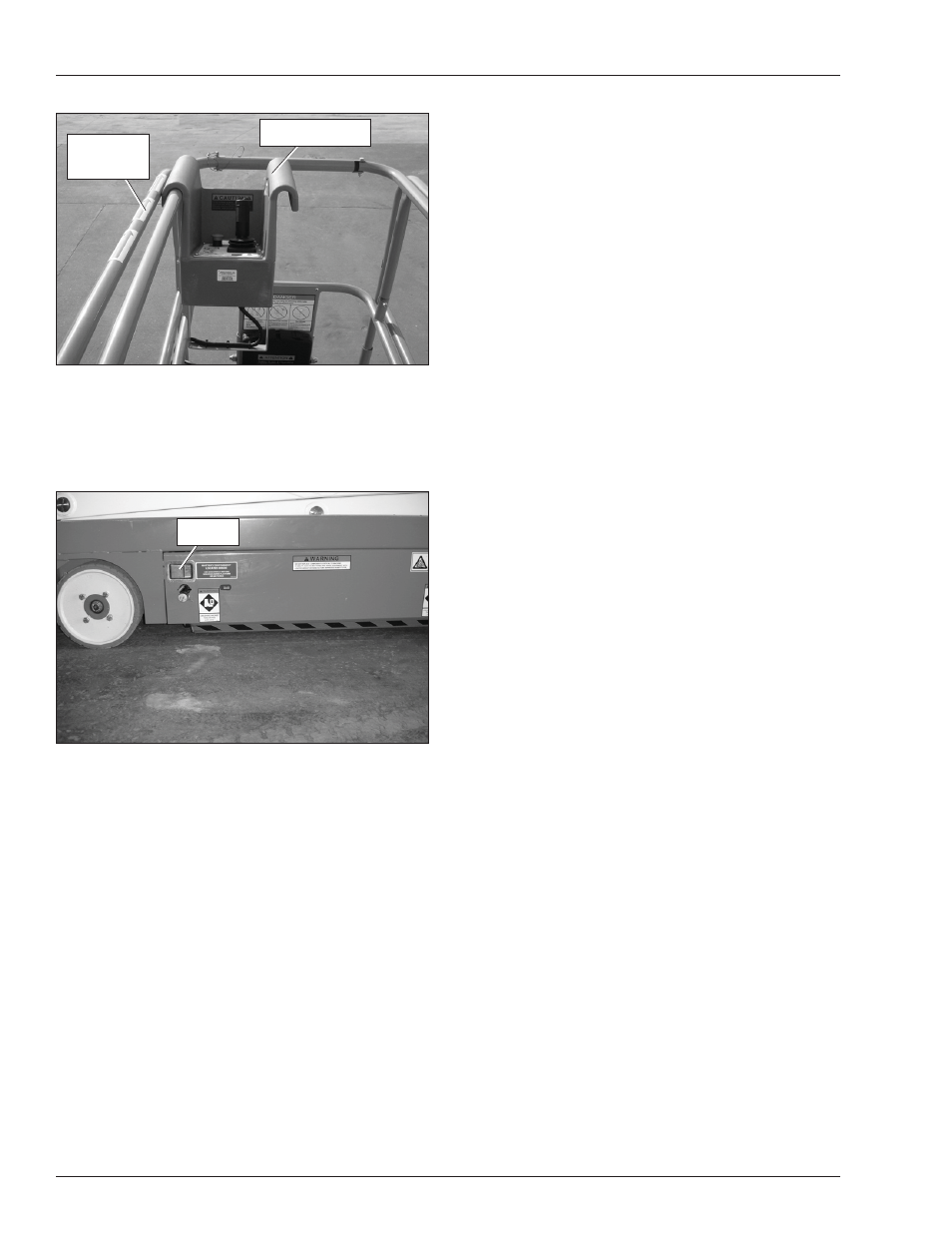

Figure 9.9 – Upper Control Operating Position
Swing-Out Trays
Batteries and hydraulic components are enclosed in
swing-out trays (refer to Figure 9.10) on each side of
the chassis.
Figure 9.10 – Battery Tray
Left
Guardrail
Upper Controls
Left
Guardrail
Upper Controls
Latch Latch
The battery tray on the right side of the chassis con-
tains the battery disconnect, batteries and the battery
charger.
The hydraulic tray on the left side of the chassis con-
tains the lower controls, the hydraulic reservoir, and
the hydraulic fl uid fi lter.
A
Danger
The aerial platform can tip over if it becomes unstable.
Death or serious injury can result from a tip-over ac-
cident. Do not open the trays when the platform is
raised more than eight feet.
To open the swing-out tray, pull the latch outward and
swing the tray open.
