1. Fully lower the platform.
2. Turn OFF the Main Power Switch and remove the key.
3. Turn the battery switch to OFF and padlock it.
1. Secure straps to chassis tie down/lifting lugs only.
2. Place the platform onto the transport vehicle in the transport position.
3. Chock the wheels.
4. Secure the work platform to the transport vehicle with chains or straps of adequate load
capacity attached to the chassis tie down/lifting lugs.
1. Move the machine onto the trailer.
A. To Drive the machine onto the transport
vehicle:
i. Move the work platform up the ramp and into
the transport position.
ii. Set the wheels straight and turn off the
machine.
iii. Chock the wheels
B. To Winch the machine onto the transport
vehicle.
i. Move the platform up to the ramp.
ii. Attach the winch cable to the tie down/lifting
lugs.
iii. Release the parking brakes (refer to "Towing or
Winching" on page 12).
iv. Winch the platform into transport position.
v. Chock the wheels.
vi. Reset the parking brakes.
2. Secure the work platform to the transport vehicle with chains or straps of adequate load
capacity attached to the chassis tie down/lifting lugs.
Operation Manual Page 13
Transporting the Work Platform
T
RANSPORTING THE
W
ORK
P
LATFORM
P
REPARATION FOR
S
HIPMENT
L
IFTING
B
Y
C
RANE
B
Y
F
ORKLIFT
D A N G E R
Forklifting is for trans port only.
See spec i fi ca tions for weight of work plat form and be cer tain that the fork lift is of ad e quate ca -
pac ity to lift the work plat form.
Fork lift from the side us ing the 'built in' fork lift pock ets.
FRONT TIE DOWN
AND LIFTING LUGS
REAR TIE DOWN
AND LIFTING LUGS
FORKLIFT POCKETS
(Both sides of machine)

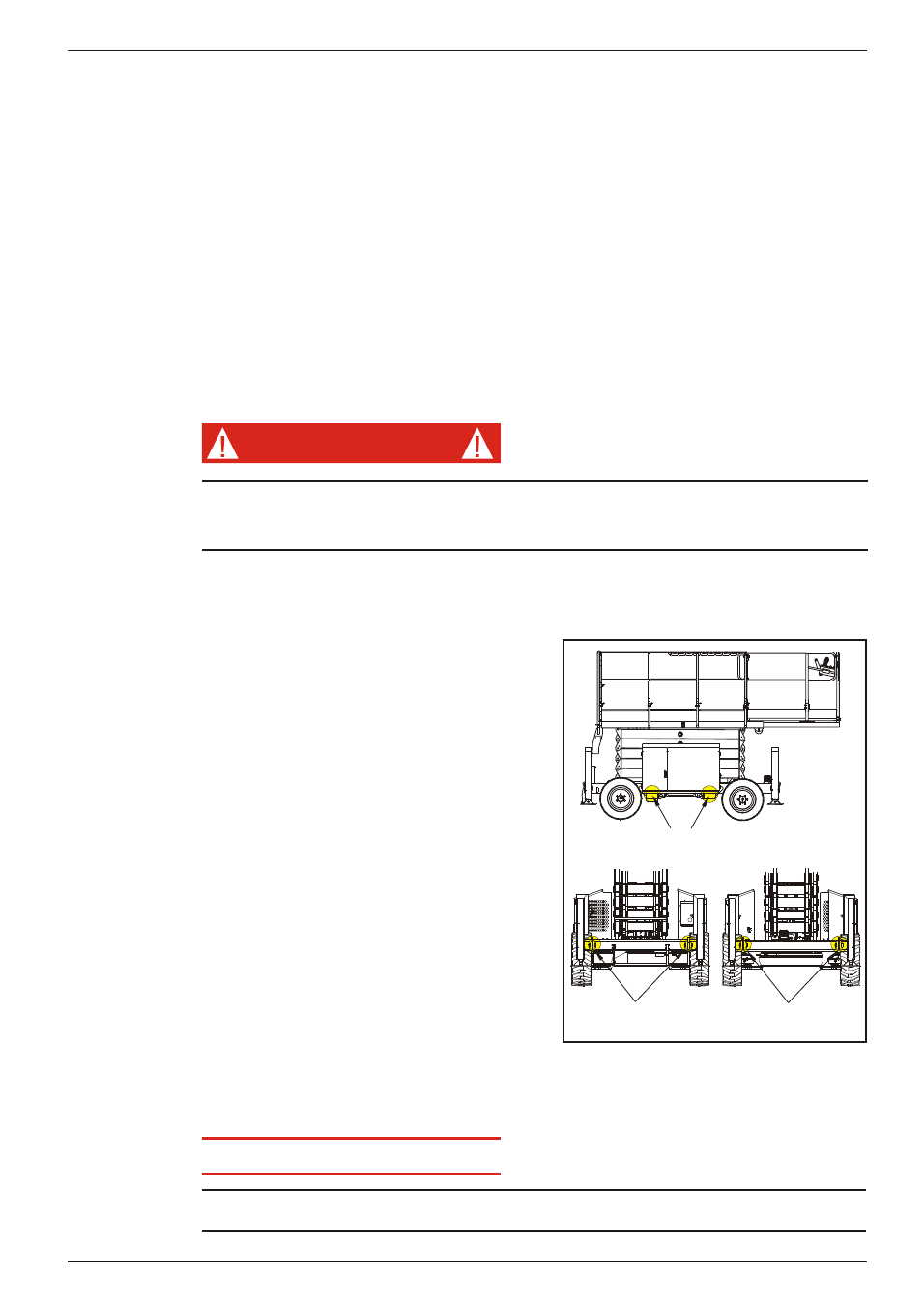

Figure 6: Transporting
D
RIVING OR
W
INCHING
O
NTO
A
T
RUCK OR
T
RAILER
NOTE: Do not winch faster than 0.9 m/s (3 ft/s).
C A U T I O N
Overtightening of the chains or straps at tached to the Tie Down/Lift ing Lugs may re sult in dam -
age to the work plat form.
