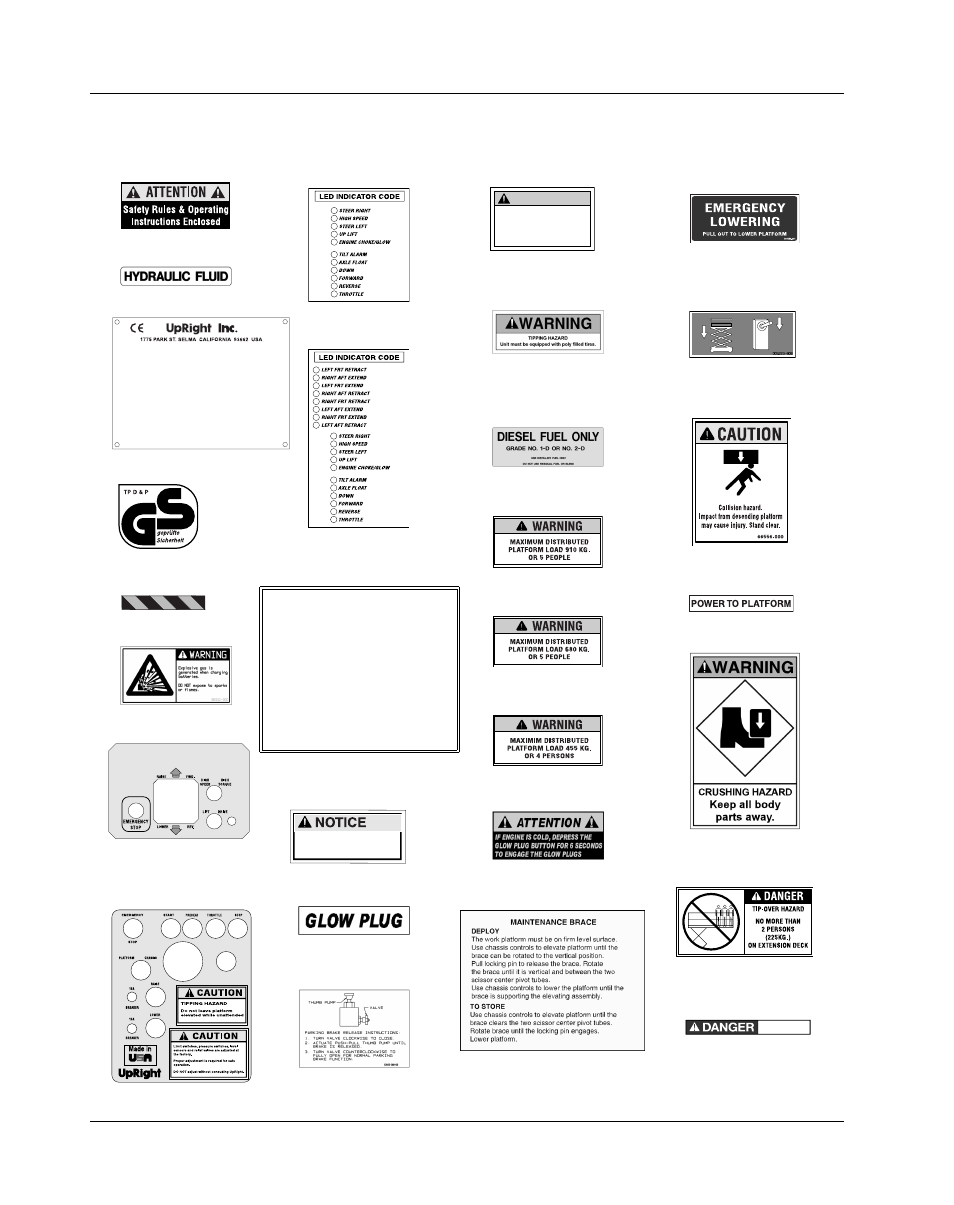

067903-025 LX31/LX41/LX50 Labels
L ABELS
These labels shall be present and in good condition before operating the work platform. Be sure to read,
understand and follow these labels when operating the work platform.
NEVER charge batteries near sparks of open flame. Charging batteries emit explosive hydrogen gas.
Dismantling the swing gate or the liftable bar or other railing components IS PROHIBITED! Always make
certain that the swing gate or the liftable bar is closed and securely locked! IT IS PROHIBITED to keep
the swing gate or the liftable bar in an open position (e.g. held open with tie-straps) when the platform
is raised!
To extend the height or the range by placing of ladders, scaffolds or similar devices on the platform
IS PROHIBITED!
INSPECT the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks,loose wire
connections, and damaged cables or hoses before using.
VERIFY that all labels are in place and legible before using.
NEVER use a machine that is damaged, not functioning properly, or has damaged or missing labels.
IF ALARM SOUNDS while platform is elevated, STOP, carefully lower platform. Move machine to a firm,
level surface.
To bypass any safety equipment IS PROHIBITED and presents a danger for the persons on the aerial work
platform and in its working range.
Exceeding the specified permissible maximum load on the platform IS PROHIBITED!
The use and operation of the aerial work platform as a lifting tool or a crane (lifting of loads from
below upwards or from up high on down) IS PROHIBITED!
NEVER exceed 400 N of side force.
DISTRIBUTE all platform loads evenly on the platform.
NEVER operate the machine without first surveying the work area for surface hazards such as
holes, drop-offs, bumps, curbs, or debris; and avoiding them.
OPERATE machine only on surfaces capable of supporting wheel loads.
NEVER operate the machine when wind speeds exceed 28mph (12.5m/sec.=Beaufort scale 6).
IN CASE OF EMERGENCY push emergency stop button to deactivate all powered functions.
Climbing up the railing of the platform, standing on or stepping from the platform onto buildings, steel
or prefab concrete structures, etc., IS PROHIBITED!
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift persons and
their tools as well as the material used for the job. IT IS designed for repair and assembly jobs and
assignments at overhead workplaces (ceilings, cranes, roof structures, buildings etc.). All other uses
of the aerial work platform ARE PROHIBITED!
THIS AERIAL WORK PLATFORM IS NOT INSULATED! For this reason it is imperative to keep a safe
distance from live parts of electrical equipment!
ALL occupants must wear an approved fall restraint properly attached to a designated platform
anchorage point. Attach only one fall restraint to each anchorage point.
Model______________ Serial number:___________
Machine weight _______kg Mfg. date:_________
Maximum wheel load:________
Maximum allowable incline of machine when elevated:_____deg.
Occupants and equipment must not exceed the rated maximum
load:_____kg Maximum platform occupants: _____
Maximum allowable sIde force on platform:_____N
Maximum platform height:______m
Maximum platform reach:______m
Maximum allowable wind speed: ______m/s=Beaufort scale_____
Maximum hydraulic system pressure:_____bar
Maximum system voltage: _______Vdc
This machine is manufactured to comply with
Machinery directive 89-392/CEE
CAUTION: CONSULT OPERATOR'S MANUAL BEFORE USE.
061205-003
If horn sounds continuously
lower platform and relevel.
TIPPING HAZARD
TIPPING HAZARD
Check tire pressure daily.
Pressure must be
maintained at 50 P.S.I.
WARNING
START CIRCUIT PROTECTION
If engine stops cranking while
starting, let machine sit for
10-15 minutes before re-starting
LX31/LX41:
066558-001 40
LX50:
005223-908 40
066556-000 41
068639-000 42
067822-001 34 34
LX31: 066557-060 26
LX41: 066557-057 26
027898-000 25
LX31/LX41:
066562-000 22
063423-000 21
067822-000 17
067478-000 15
067195-001 14
067480-000 13
067480-001
(Outrigger Units) 13
067481-001 12
067642-011
(Outrigger Units:
067642-004) 11
061205-003 5
060197-000 4
010076-001 2
9 066552-000
38 066561-001
6 030768-002
7 064936-099
LX50: 066557-054 26
066556-001
(Outrigger Units) 43
066551-051 44
066551-003
(Outrigger Units) 45
LX50:
066562-003 22
