24
DOC No: 7046 REV G
IN
MICR
O
IN
MICR
O
60.64 [2.387]
57.8 [2.28]
2.5 [0.10]
41.1 [1.62]
Max
12.5 [.49]
2x 4-40 UNC
11.6 [0.45]
1.3 [0.05]
5.6 [0.22]
2x 1/4-28 UNF Ports
2.4 [0.09]
12.5 [0.49]
31.7 [1.25]
15.9 [0.63]
4.0 [0.16]

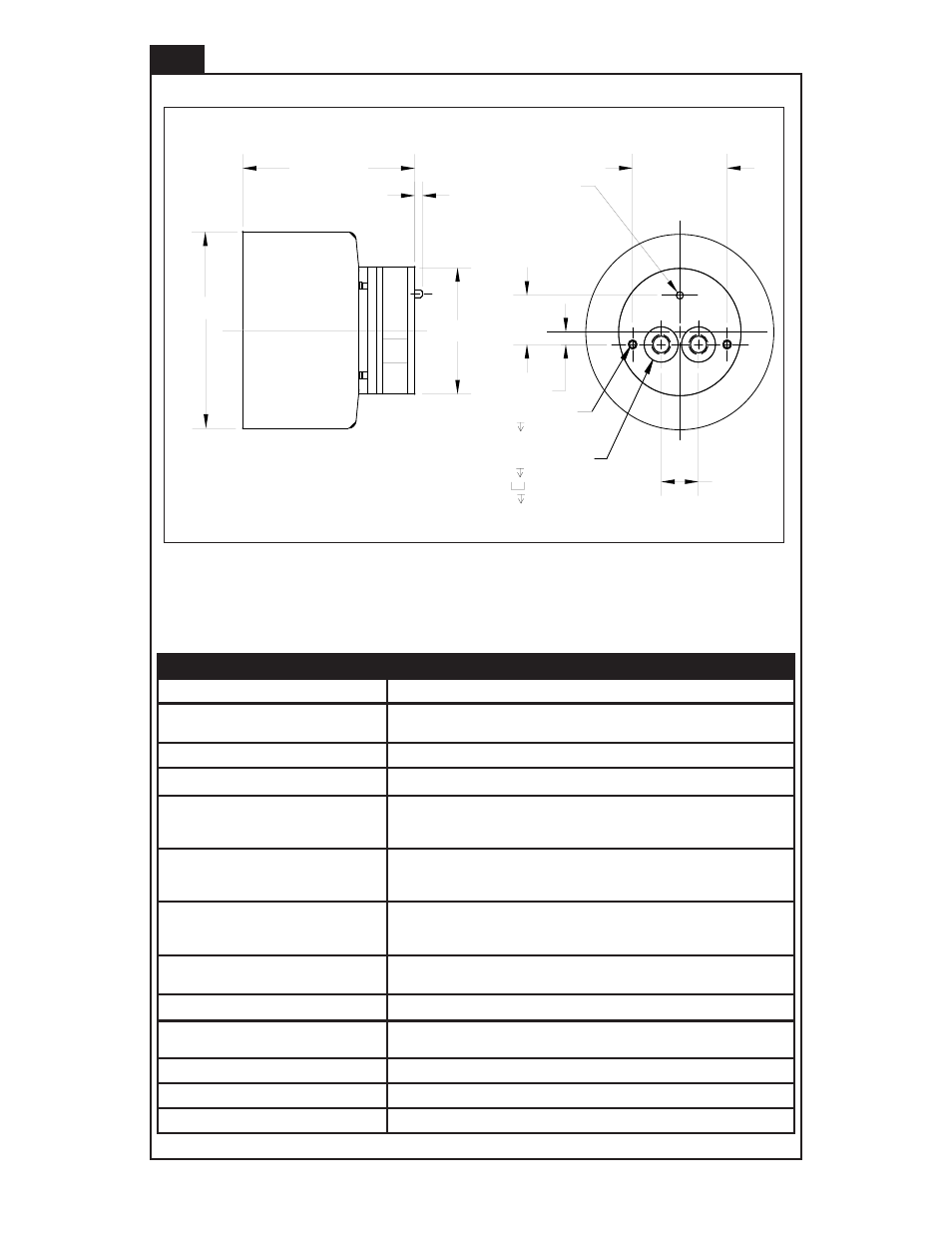

GAT SERIES on A MOUNT
SERIES GAT
T23 GEARS
Flow Rate @3450 rpm
Flow Rate @2850 rpm 0.322 l/min (0.085 gpm)
0.270 l/min (0.071 gpm)
Max. Speed 4000 rpm
Max. System Pressure 13.8 bar (200 psi) A/B-mount / 8.3 bar (120 psi) C-mount
Max. Differential Pressure
(Continuous Duty) 5.2 bar (75 psi)
Max. Differential Pressure
(Intermittent Duty) 13.8 bar (200 psi) A or B-mount / 8.3 bar (120 psi) C-mount
Max. Differential Pressure
(Blocked Outlet) Differential pressure capability greater than maximum system pressure
Max. De-Coupling Torque 185 mNm (12 in*oz) A or B-mount / 21 mNm (3 in*oz) C-mount
Viscosity Range 0.2 to 1500 centipoise
Fluid Temperature Range -46 to +77°C (-51 to +170°F)
Bypass Valve Not Available
Noise Level Less than 70 dbA
Weight 0.15 kg (.34 lbs) A-mount / 0.07 kg (0.16 lbs) C-mount
