21
DOC No: 7046 REV G
SERIES GA
X21 GEARS V21 GEARS V23 GEARS T23 GEARS
Flow Rate @3450 rpm
Flow Rate @2850 rpm 0.06 l/min (0.016gpm)
0.05 l/min (0.013gpm) 0.145 l/min (0.038 gpm)
0.120 l/min (0.032 gpm) 0.290 l/min (0.077 gpm)
0.245 l/min (0.065 gpm) 0.322 l/min (0.085 gpm)
0.270 l/min (0.071 gpm)
Max. Speed 8000 rpm
Max. System Pressure 21 bar (305 psi) standard
Max. Differential Pressure
(Continuous Duty) 2.8 bar (40.6 psi) 5.2 bar (75.4 psi) Hex
2.8 bar (40.6 psi) Pin
Max. Differential Pressure
(Intermittent Duty) 2.8 bar (40.6 psi) 5.2 bar (75.4 psi) Hex
2.8 bar (40.6 psi) Pin
Max. Differential Pressure
(Blocked Outlet) 27.6 bar (400.3 psi) 20.7 bar (300.2 psi)
Max. De-Coupling Torque 21 mN*m (0.186 in*lbs) C-mount / 78 mN*m (0.69 in*lbs) A or B-mount Ferrite Magnets /
554 mN*m (4.9 in*lbs) Rare Earth Magnets
Viscosity Range 0.2 to 1500 centipoise
Fluid Temperature Range -46 to +177°C (-51 to +351°F)
Bypass Valve Not Available
Noise Level Less than 70 dbA
Weight 0.24 kg (0.53 lbs) A-mount / 0.27 kg (0.59 lbs) B-mount / 0.31 kg (0.68 lbs) C-mount

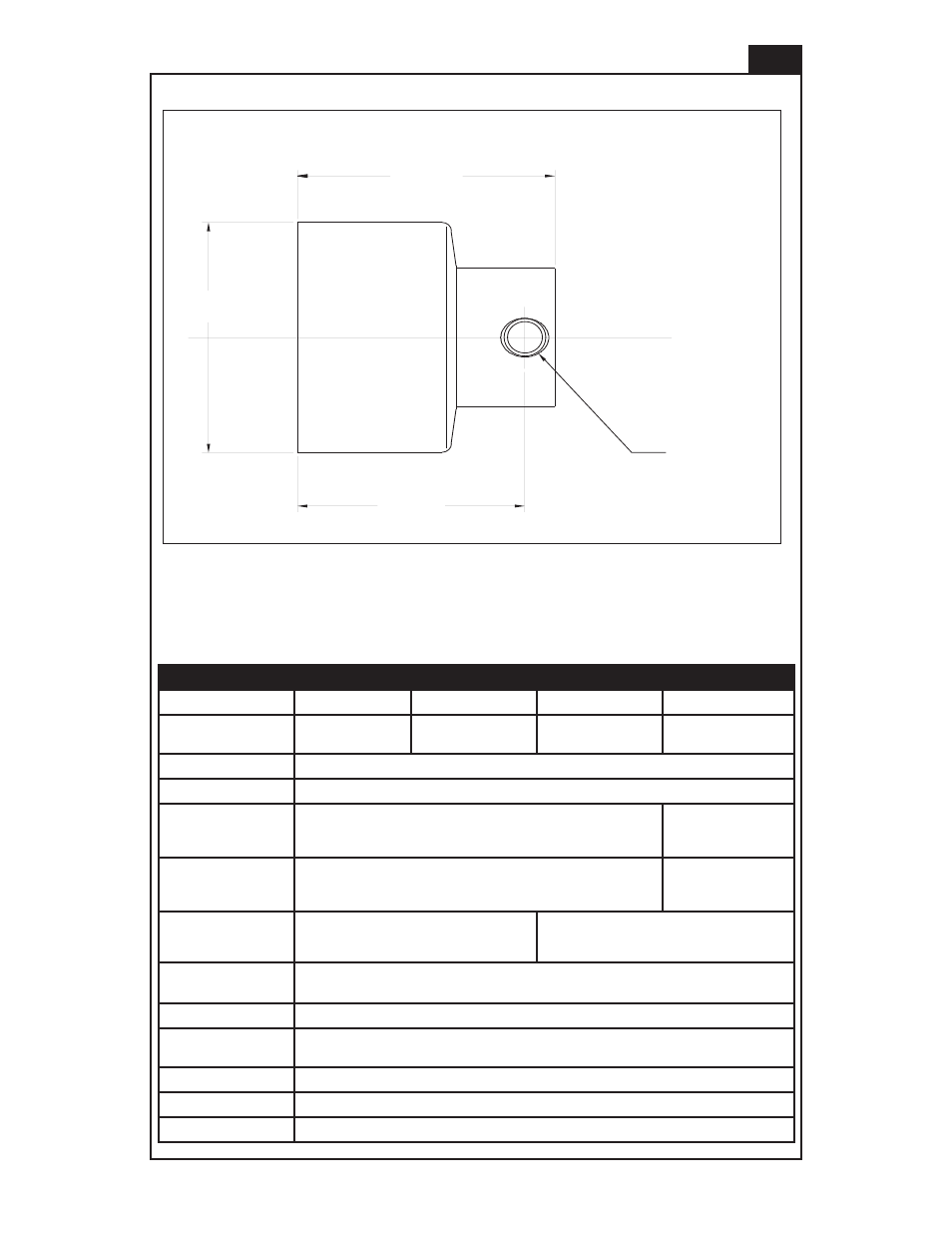

63.5 [2.5]
GA SERIES on A MOUNT
60.64 [2.38]
Inside Diameter
56.0 [2.20]
1/8 - 27 NPT
