23
DOC No: 7046 REV G
SERIES GAP
T23 GEARS
Flow Rate @3450 rpm
Flow Rate @2850 rpm 0.322 l/min (0.085 gpm)
0.270 l/min (0.071 gpm)
Max. Speed 4000 rpm
Max. System Pressure 13.8 bar (200 psi) A- or B-mount / 8.3 bar (120 psi) C-mount
Max. Differential Pressure
(Continuous Duty) 5.2 bar (75 psi)
Max. Differential
Pressure
(Intermittent Duty) 13.8 bar (200 psi) A or B-mount / 8.3 bar (120 psi) C-mount
Max. Differential
Pressure
(Blocked Outlet) Differential pressure capability greater than maximum system pressure
Max. De-Coupling Torque 85 mNm (12 in*oz) A or B-mount / 21 mNm (3 in*oz) C-mount
Viscosity Range 0.2 to 1500 centipoise
Fluid Temperature Range -46 to +121°C (-51 to +250°F)
Bypass Valve Not Available
Noise Level Less than 70 dbA
Weight 0.14 kg (.30 lbs) A-mount / 0.06 kg (0.14 lbs) C-mount

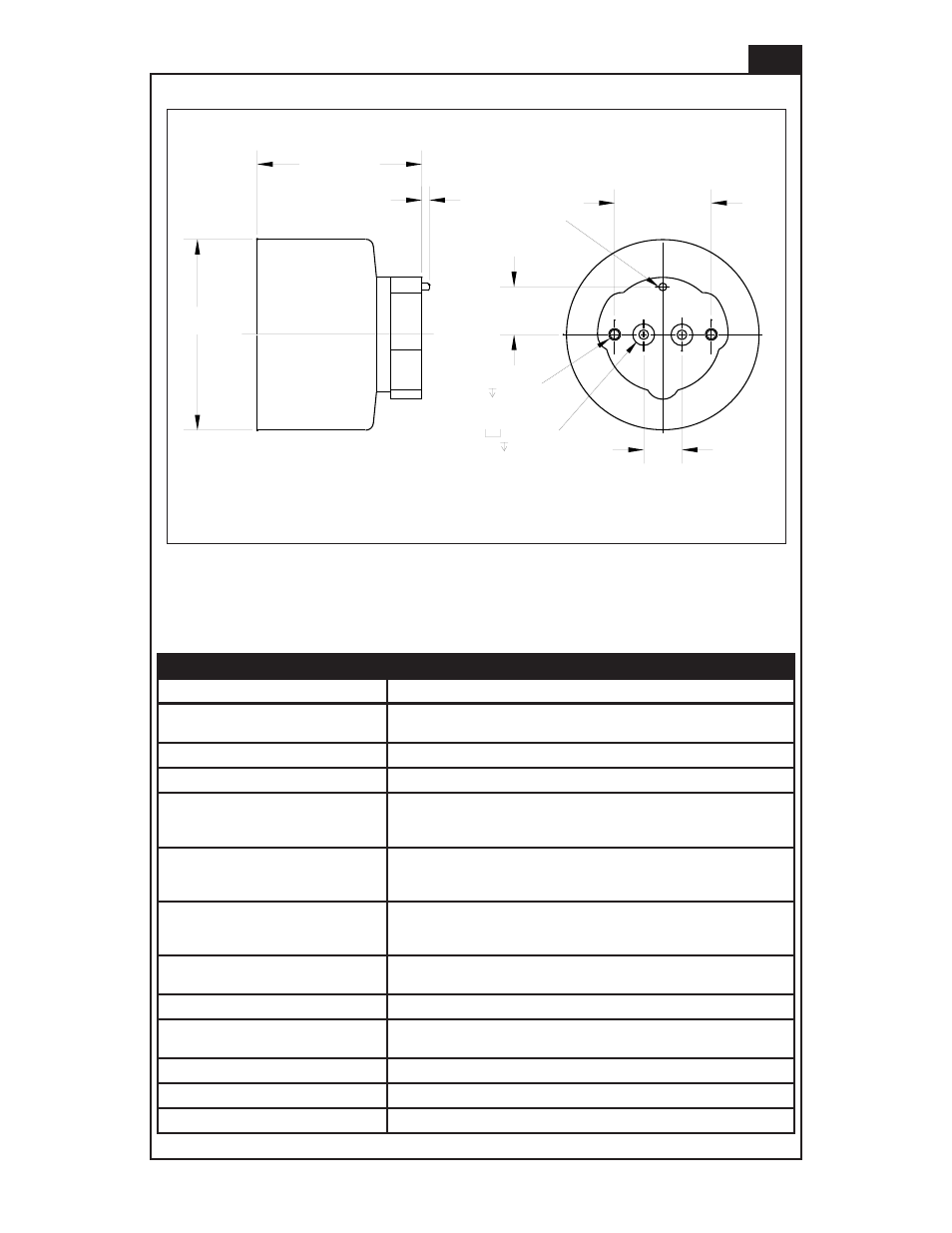

54.0 [2.12]
60.64 [2.387]
Inside diameter
2.5 [0.10]
Max
31.7 [1.25]
2x M3x.5 THD.
9.9 [0.39]
2X 3.0 [.12] Ports
7.1 [0.28]
1.3 [0.05]
12.6 [0.49]
2.4 [0.09]
Height as shown
15.9 [0.63]
GAP SERIES on A MOUNT
