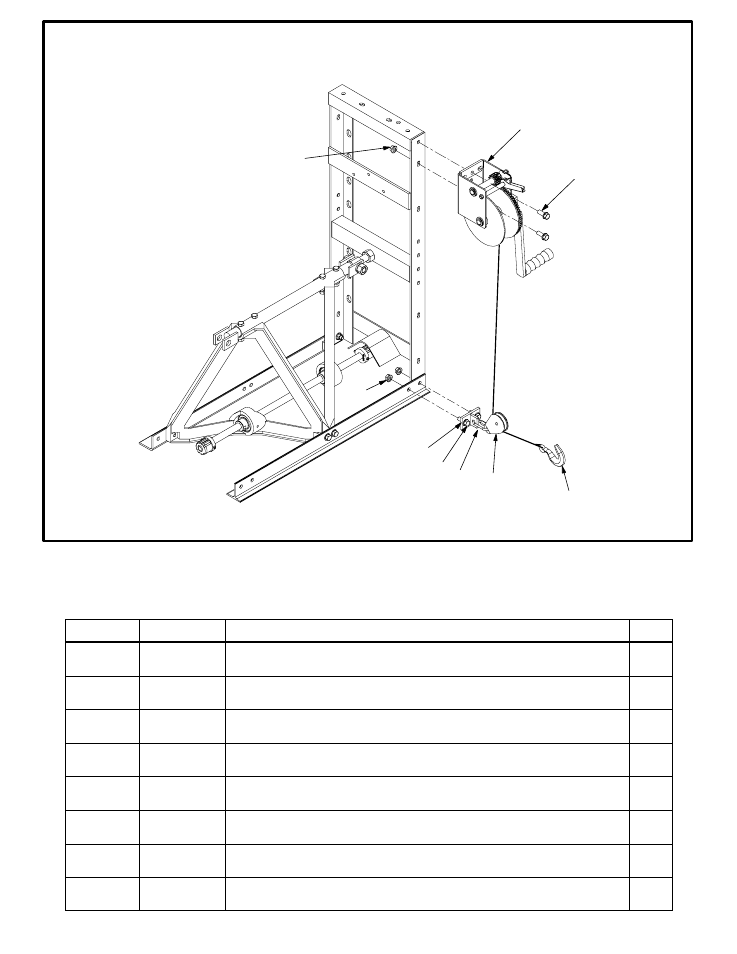

FIGURE 35: HAND WINCH KIT
(One Winch Each End)
HAND WINCH KIT
PART NUMBER 08858
ITEM NO PART NO DESCRIPTION
QTY
1
16186
WINCH, L.H. (Includes Item 15)
1
2
F061608FWS SCREW, FLANGE WHIZ-LOCK 3/8-16 X 1
8
3
F0616FN
NUT, FLANGE WHIZ-LOCK 3/8-16
14
4
08976
BRACKET
2
5
08993
LINK
2
6
08891
PULLEY
3
7
08888
CABLE ASSEMBLY, 60' & HOOK
2
8
09065
PULLEY BRACKET
1
9
F06SW
PLAINWASHER 3/8
1
10
F061612FWS SCREW, FLANGE WHIZ-LOCK 3/8-16 X 1-1/2
1
11
F0616DLN
LOCK NUT DEFORMED 3/8-16
1
12
01428
6
13
F061606FWS SCREW, FLANGE WHIZ-LOCK 3/8-16 X 3/4
6
14
16185
WINCH, R.H. (Includes Item 15)
1
15
15336
HANDLE, WINCH
2
CLAMP, TUBE
