MBW Blitzscreed User Manual
Page 14
12

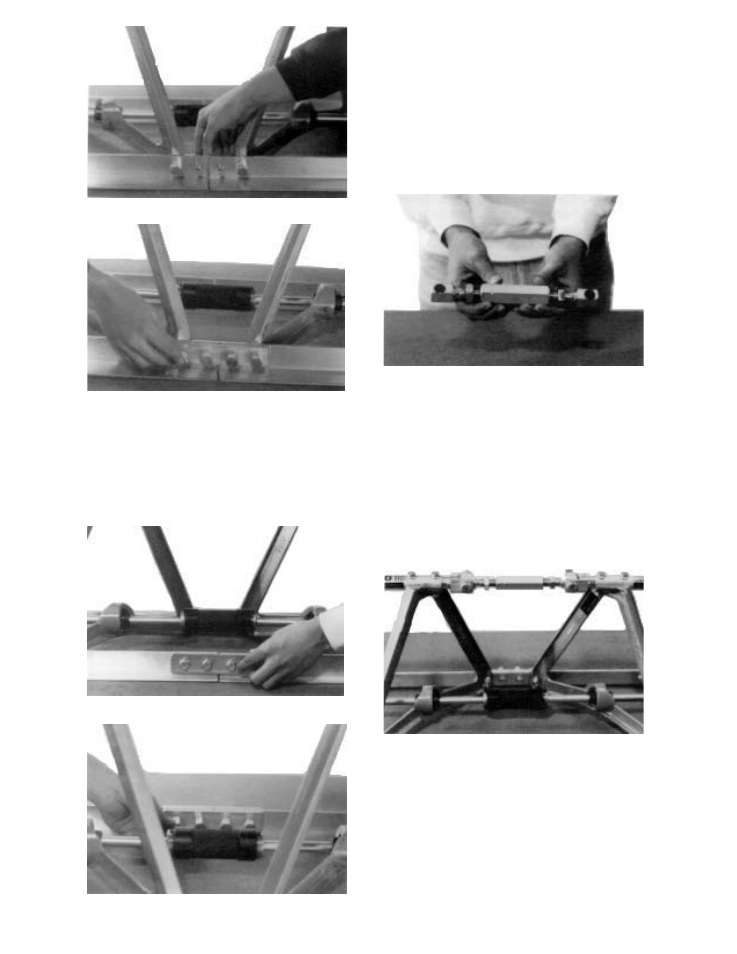

FIGURE 4
FIGURE 5
7. Install a four bolt splice plate thru the
strikeoff edging. Install a four hole
splice plate on the inside of the edging
and loosely install 4 blind nuts (see FigĆ
ures 6 and 7).
FIGURE 6
FIGURE 7
8. Make sure the bottom of the four edgĆ
ings are in the same plane. Tighten
both splice plates hard.
9. Take a right turnbuckle eye and install a
right-hand jam nut about three quarĆ
ters of the way up the shaft. Now install
the eye onto the turnbuckle a little over
half way. Do the same with the left turnĆ
buckle eye (see Figure 8).
FIGURE 8
10.Loosely install the turnbuckle assembly
directly above the flex coupling to both
clevises using a 5/8-18 X 2-1/2 bolt,
lockwasher, and a hex nut (see Figure
9). Install all the turnbuckles in the
same direction as you progress
down the screed. There is a notch cut
on one end of the turnbuckle to indicate
its direction. Remember, do not tighten
the turnbuckle hardware yet.
FIGURE 9
