7. Configuration
7.1. Configure the IDLE voltage and GAIN setting using Auto Scale (Analog engines)
A SENTRY set to Analog control mode (see section 6.6.2) may use the Auto Scale configure method to automatically
set the IDLE voltage (6.6.4) and GAIN setting (6.6.9).
The engine must be running and the interlocks (as defined in section 4.3) must be enabled when running the Auto
Scale mode.
The SENTRY will actively control the engine RPM during Auto Scale. Make certain that all operational
precautions are observed and a trained operator is present.
Enter the INFO menu (section 6.3) and select “AutoScale Analog Output” then press the SAVE button. The display
will prompt you to verify that you want to set the Auto Scale the analog output. Press the green ACCEPT button to
start or the red cancel button to not start. If the engine control method is not set for “analog” a warning will be
shown and Auto Scale will not be attempted. Once back to the INFO menu you must press the SAVE button to
save the Auto Scale operation and exit the menu.
7.2. Configure the Twister for operation with the Sentry (master)

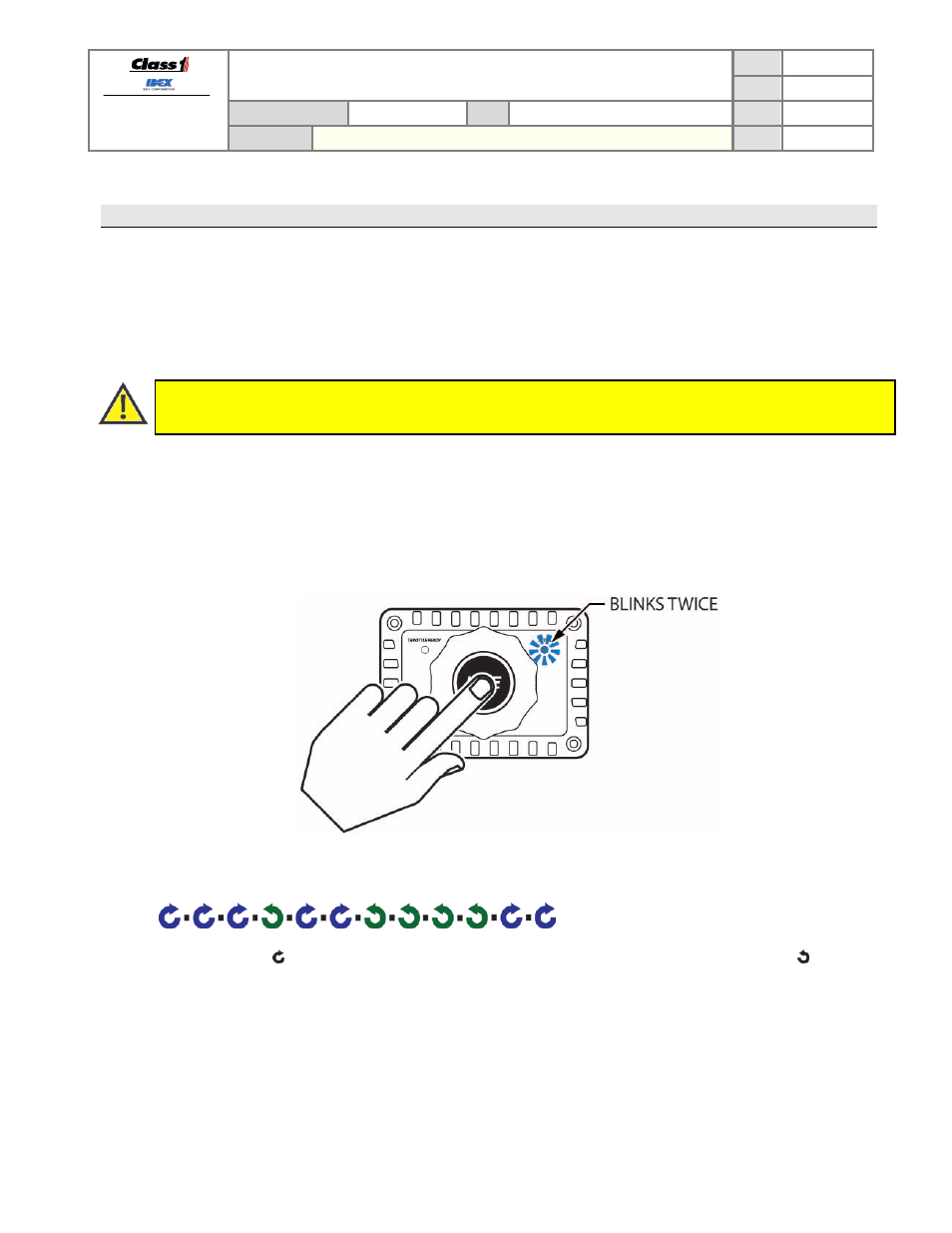

1. Press and hold the IDLE button until the ACTIVE LED blinks twice (two seconds). Continue holding the IDLE
button while entering the password.
2. [Set the Twister to Sentry mode] Use the knob to enter the password:
NOTE: A clockwise rotation will turn the ACTIVE LED ON for a half- second and a counter-clockwise rotation
will turn the THROTTLE READY LED ON for a half-second. Wait for the LED indication to turn OFF before rotating
the knob again. A rotation consists of at least one tactile click and a single rotation event is complete when the knob
remains stationary for at least half a second.
