5. Warning and Error messages

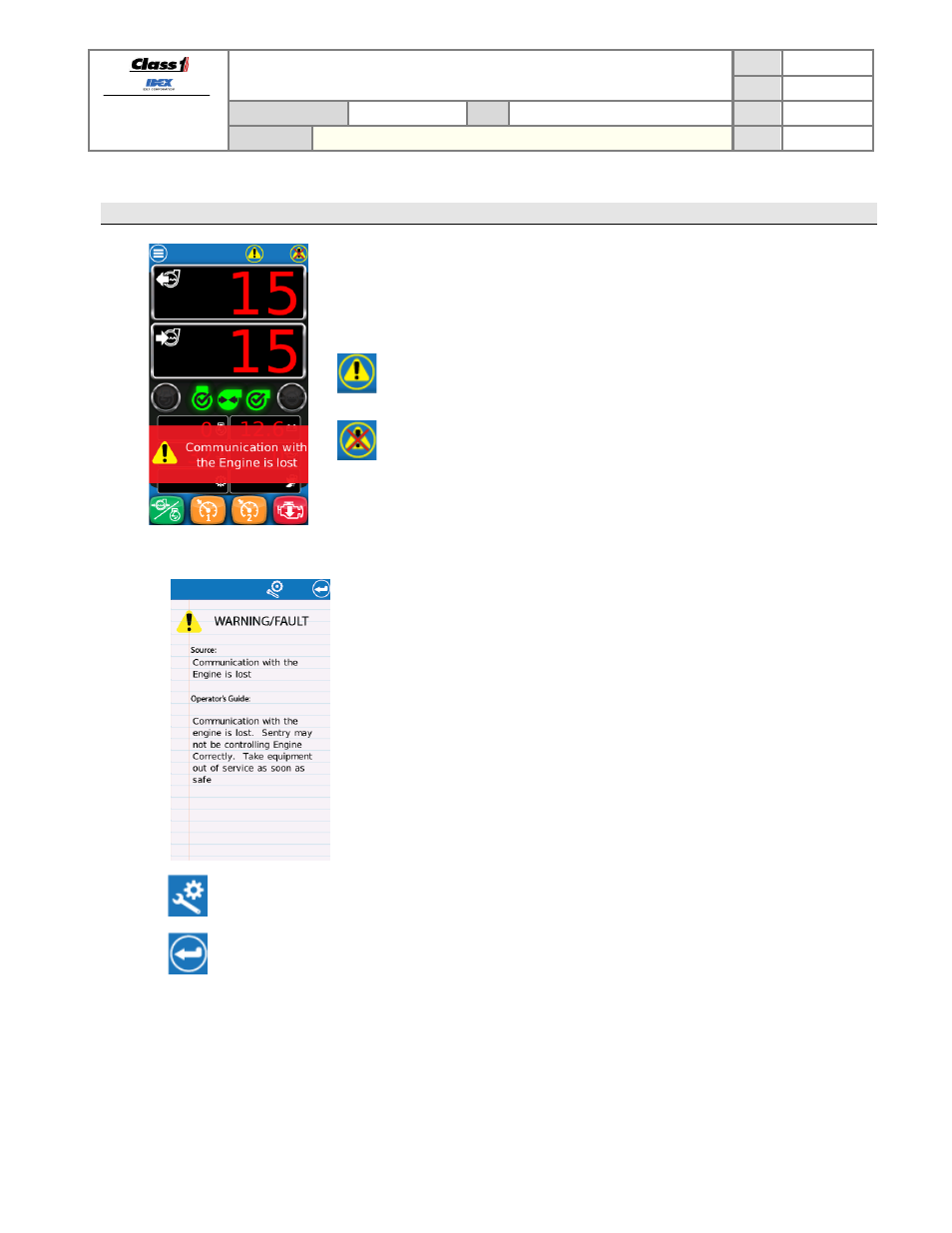

The Sentry displays warning and error messages on a red bar in front of the secondary
information displays and the “more information” and “clear message” icons appear
below the soft buttons.
More information
Press the soft button above this icon to learn more about the current
warning or error message (first level information).
Clear message
Press the soft button above this icon to clear the warning message from the
screen.
5.1. First level message information (operator)
The first level message information screen is designed for the operator and
will give basic information about the current warning/error as well as simple
instructions on what should be accomplished next.
Press the “technician information” soft button to display the second level
message information which gives a technician detailed information about the
warning/error message that is currently displayed.
Press the “return” soft button to exit the first level message information and
return to the standard operating screen.
