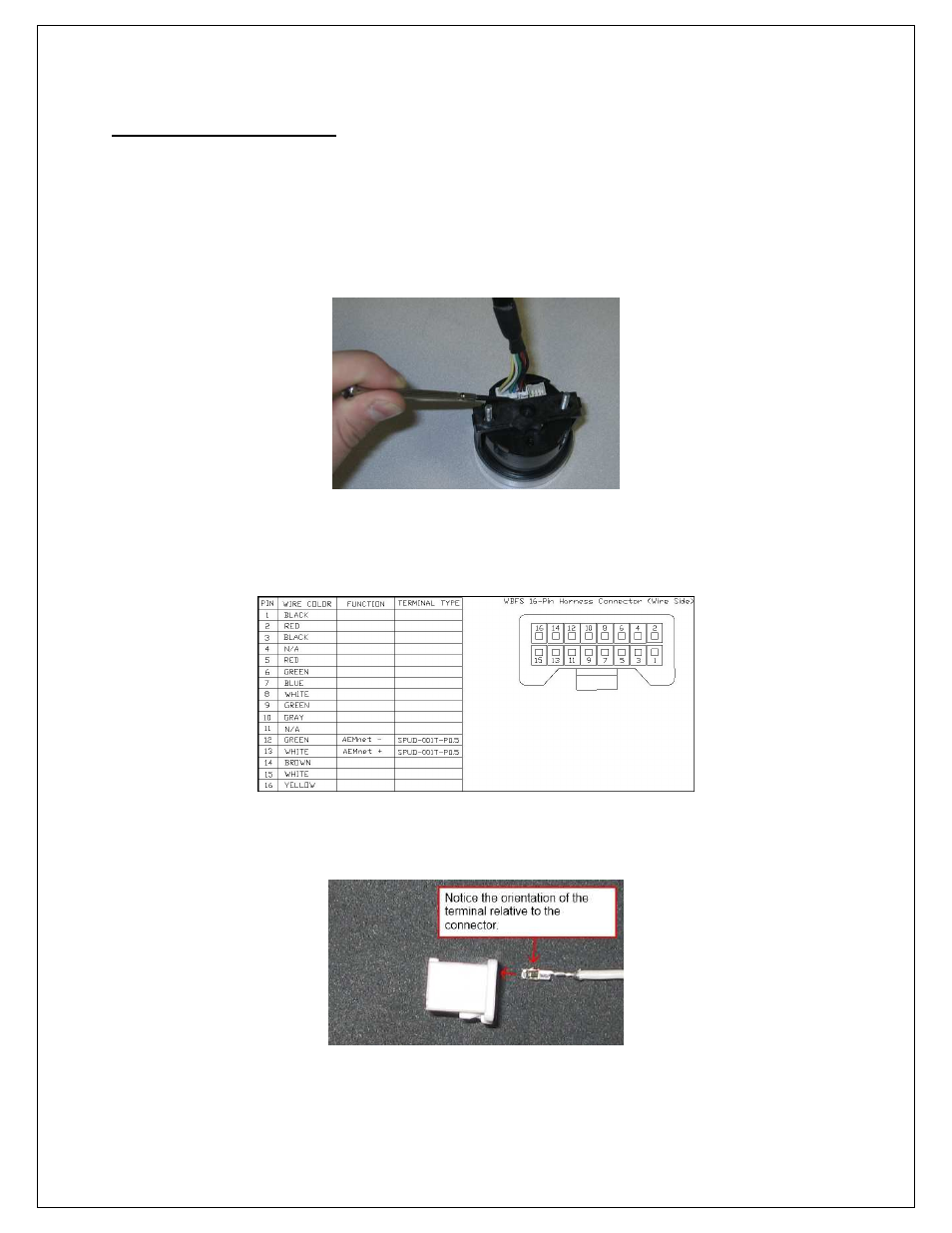

Appendix III - AEMnet
The following instructions describe the proper installation of the optional AEMnet Harness (30-
3439), which is used to connect the Wideband Failsafe AEMnet communication lines to a second
(or multiple) AEMnet device(s).
1. Disconnect the Wideband Failsafe 16-pin harness connector from the Wideband Failsafe gauge. The
harness connector has a latch on the bottom side that needs to be squeezed as the connector is
lightly freed from the gauge. Refer to Figure 1 below.
Figure 1
2. Locate the green and white pre-crimped terminals on the end of the AEMnet Harness. Figure 2 below
shows the Wideband Failsafe connector and pinout including the green and white leads from the
AEMnet harness.
Figure 2
3. Before inserting the terminals into the connector, refer to Figure 3 to be sure that the locking
mechanism on the terminals is positioned properly in the connector.
Figure 3
