Figure 4-h Frequency Modulation Submenu
4.3.4
Phase Modulation Submenu
In the phase modulation submenu the internal and external phase modulation can be accessed. Use
cursor keys to change between internal and external modulation source and change modulation
parameters. Enable modulation by pressing the
RF On/Off button
.
Exit the submenu by pressing the
menu key
.

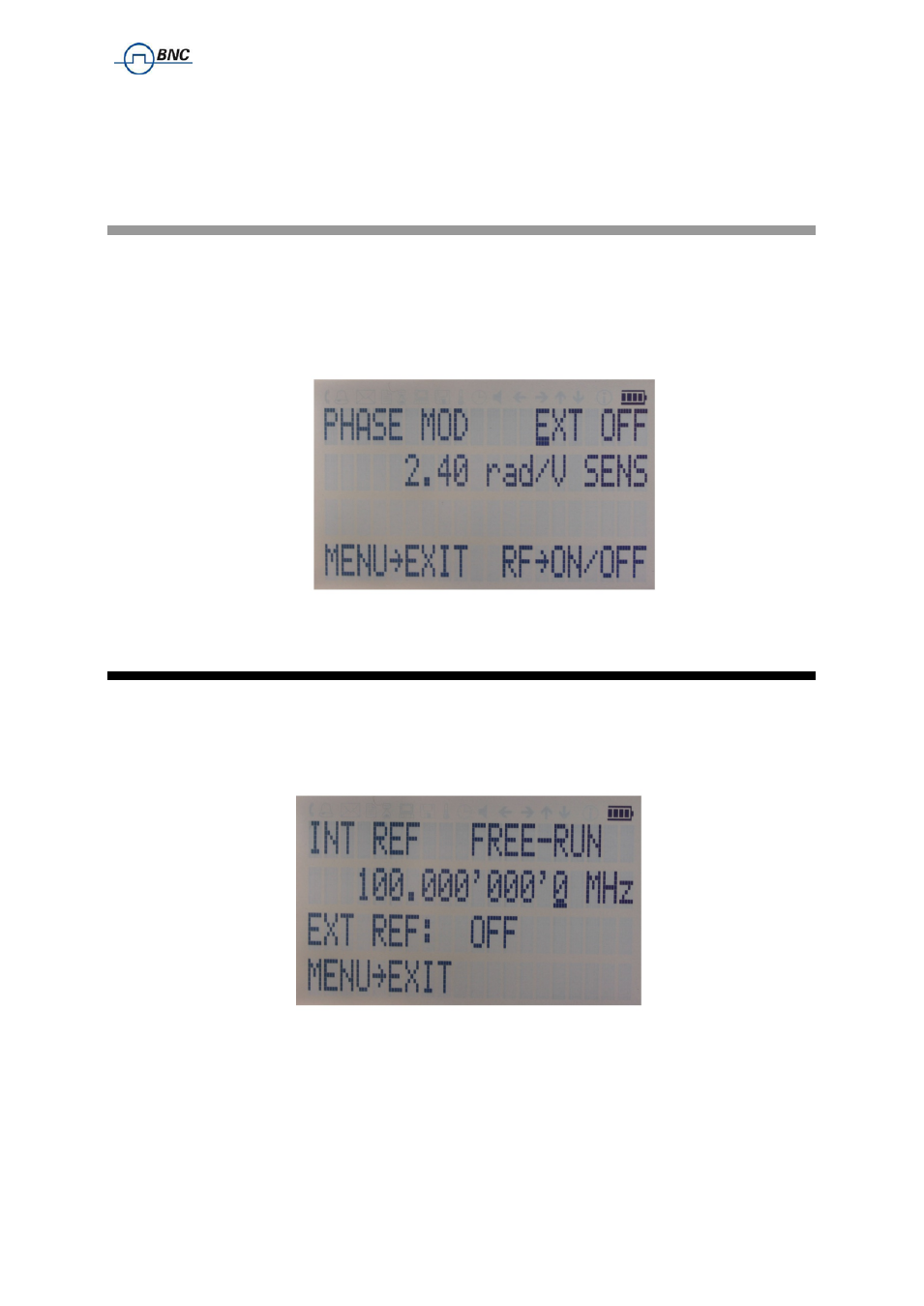

Figure 4-i Phase Modulation Submenu
4.4 Reference Submenu
After accessing the Reference menu, use the
↓ ↑
arrow keys to move the cursor between the ON/OFF
entry and the reference frequency entry. Use the
rotary knob
to toggle between ON and OFF or to
change reference frequency to the desired value, respectively. The display shows up as following.
Figure 4-j Reference Submenu
Confirm the setting by exiting the menu (pressing the
menu key
).
Reference ON/OFF
Ref. Frequency
