• Video output of the internal pulse modulation signal
• Trigger output (see programmer’s manual for further configuration)
• Output of one of the low frequency generators
In the GUI select which output to be used and enable it by pressing the ON/OFF button.
The low frequency generator can output sine wave, triangle or a square wave. The frequency can be
set from 1 Hz to 5 MHz. The amplitude of the sine wave and triangle can be set for the sine wave and
the triangle. If square wave is selected, the output is not affected by the amplitude settings and gives
constant 5 Volts peak-peak amplitude.
The output impedance for sine and triangle wave output is 50 ohms, for square wave, trigger and
pulse modulation video it is high impedance (CMOS and TTL logic compatible).

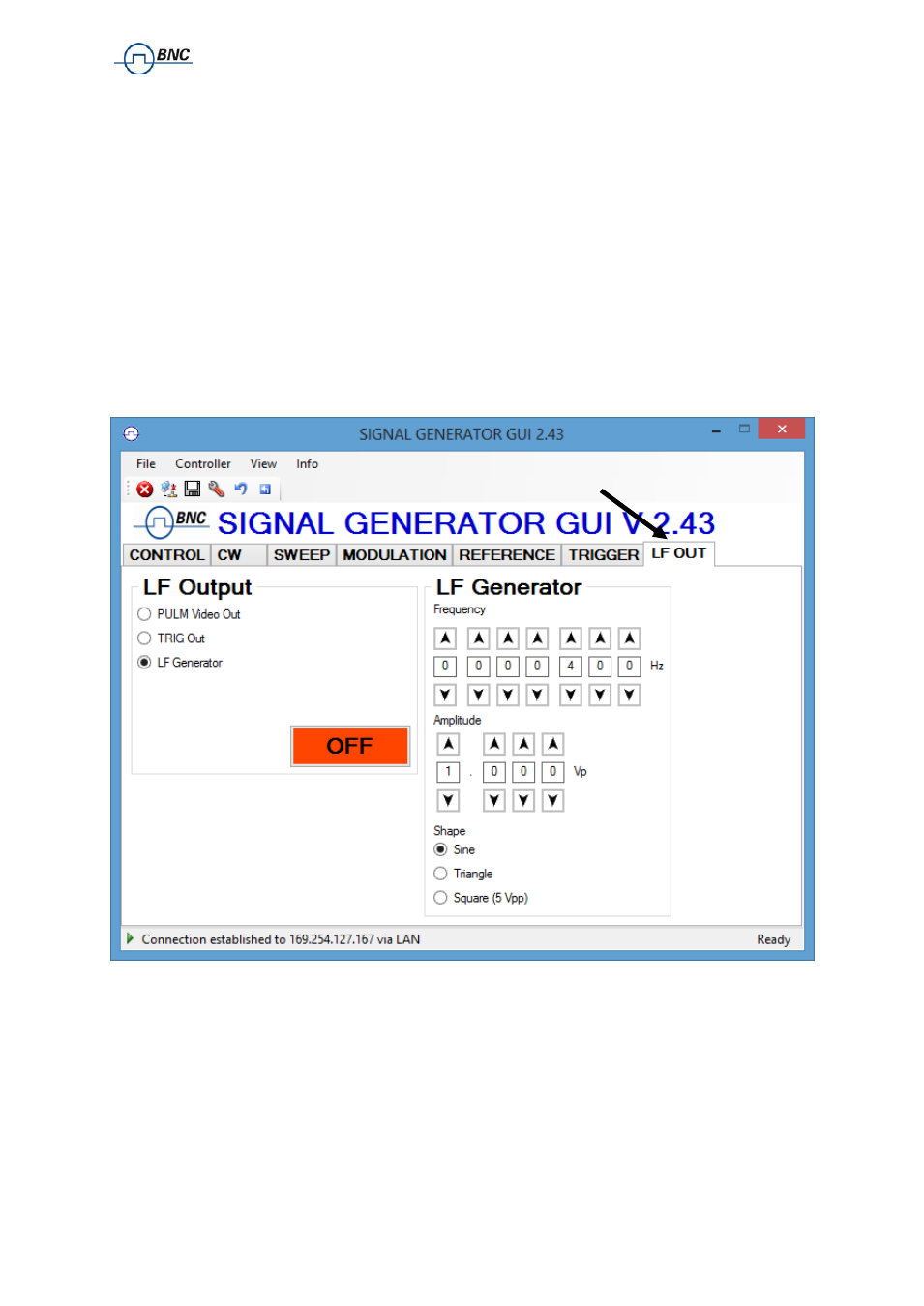

Figure 3-q LF OUT Tab
