Power LED illuminates when system is powered up.
4.1 Displayed Parameter Formats
The following sections describe how to control the instrument via the front panel control by invoking
various menu functions.
4.2 CW Display

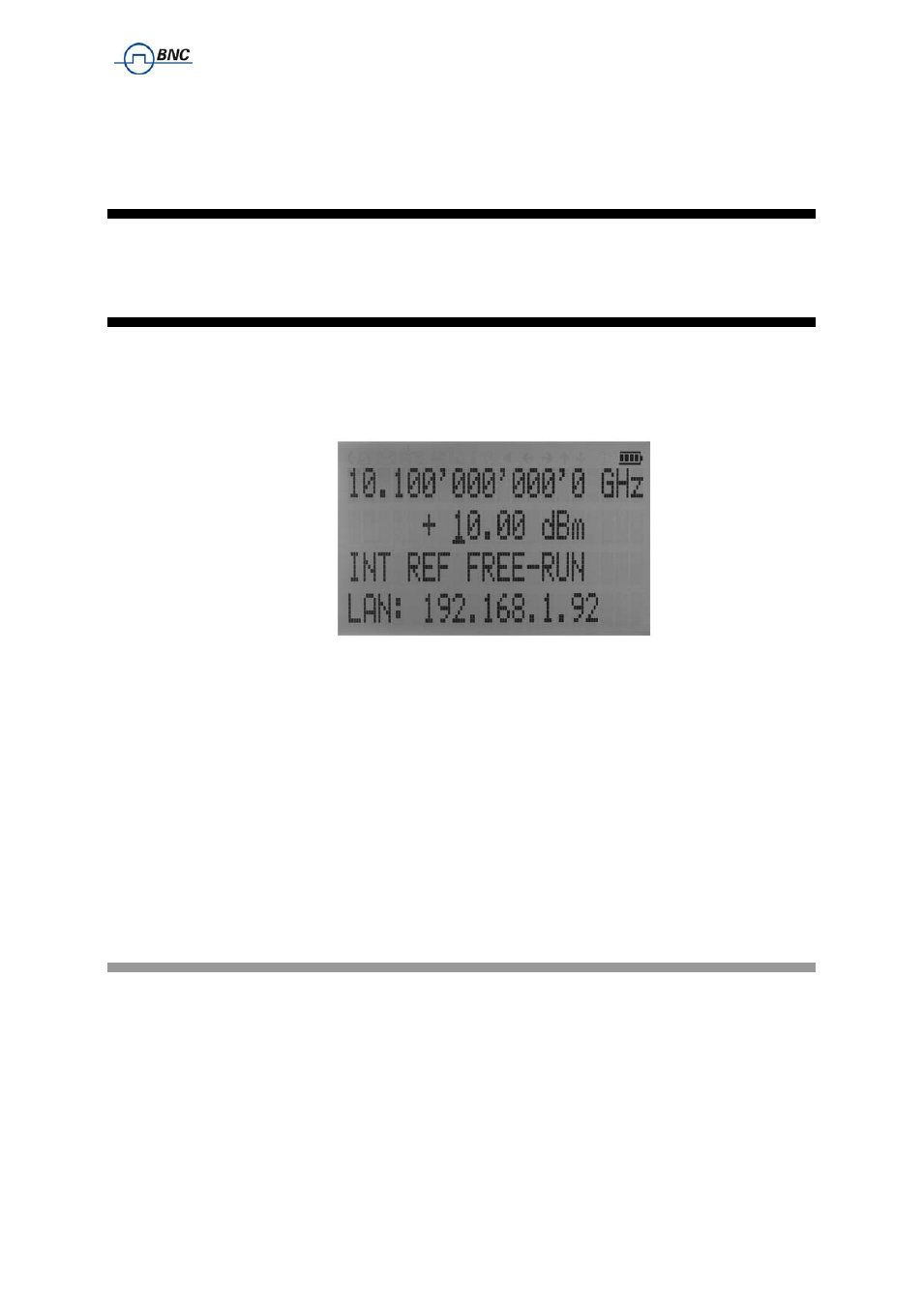

The Main or CW Display is shown after the instrument has successfully booted and is ready. The four
line display has the following format:
The currently active display position is shown by the cursor (underline symbol). The cursor does not
move beyond the field of the currently selected parameter. Rotate the front panel knob to modify the
value. Clockwise rotation increases the parameter and counter-clockwise rotation decreases the
parameter. The parameter value will continue to increase or decrease by the amount of the selected
resolution until it reaches the maximum or minimum limit of the parameter.
Use the up and down keys (
↓ ↑
) on the front panel to switch between frequency and power. Use the
left and right arrow keys (
→ ←
) to select the active digit. The resolution step size is selected by
positioning the cursor at the appropriate digit and then turning the front panel rotary knob .
4.2.1 Main Menu Display
The Main Menu Display is invoked my pressing the menu key . The main menu contains eleven
submenus as shown below.
Output Frequency
Output Power
Ref. Frequency
Remote Control
