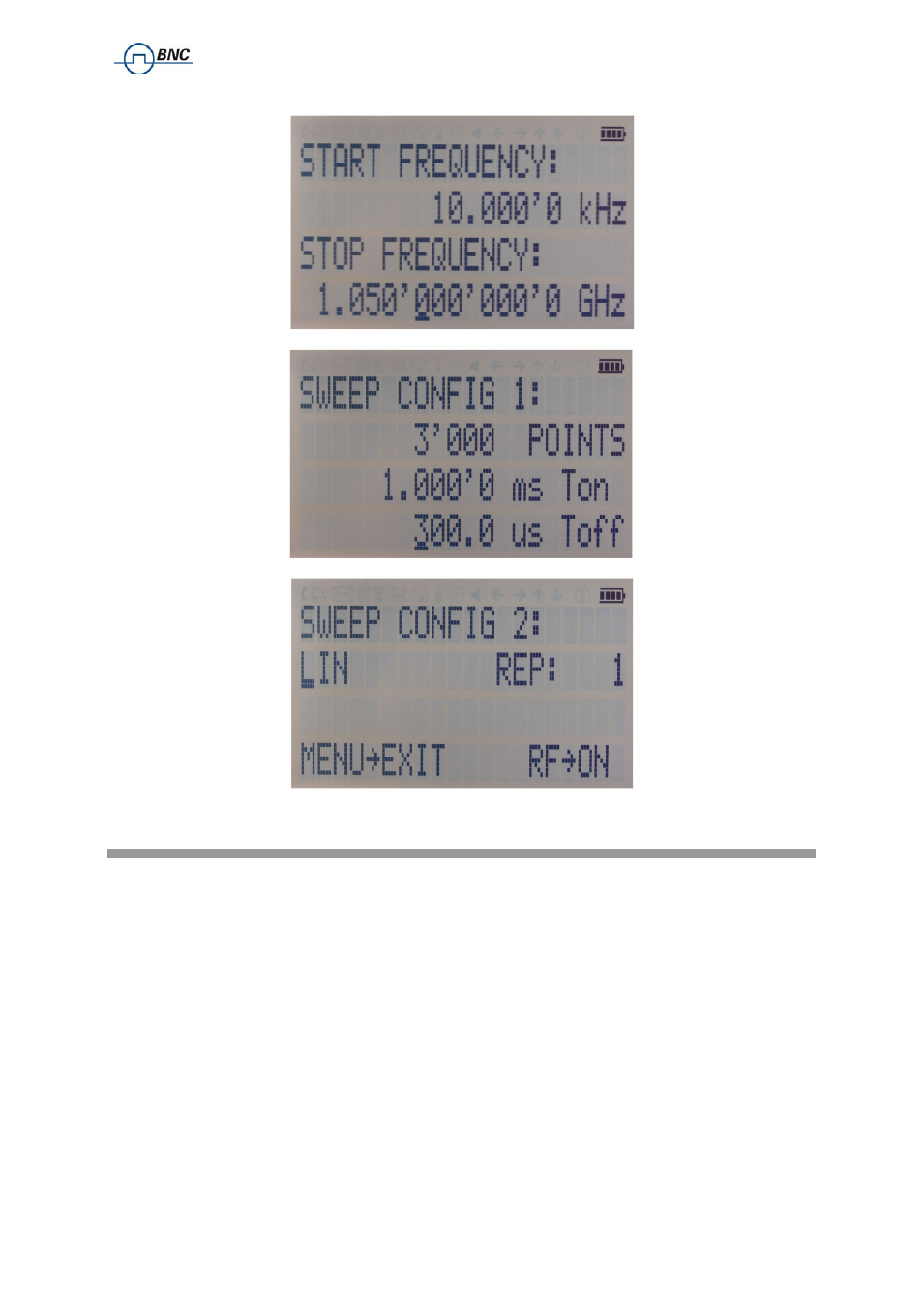

Figure 4-b Displays shown for the frequency sweep configuration
4.2.3
Power Sweep Submenu
After accessing the Power Sweep menu the first of total three displays allow to enter start and stop
power by using the
→ ←
keys to select the digits and using the
rotary knob
to increase and decrease
their values. Use the
↓ ↑
arrow to move between the several displays that contain settable sweep
parameters. On the second display, the number of points and the on and off time can be entered. On
the third display, select the repetition mode between INFinite, and 1 (single repetition).
Start the sweep by pressing the
RF On/Off button
. The
submenu can always been exited
(without
starting the sweep) by pressing the
menu key
.
Sweep Mode
Repetition
Number of Points per Sweep
On (dwell) time
Off time
