Page 63
Calibration
❑
63
CAFSPro User Operation Manual
p/n: 029-0020-75-0
2.
The display shows PASS for a few seconds only, then clears.
3.
While holding the DISPLAY (
i
) pad pressed, enter the user calibration
password – (
). (See Figure 8-3: ‘Sample CAFSPro Display

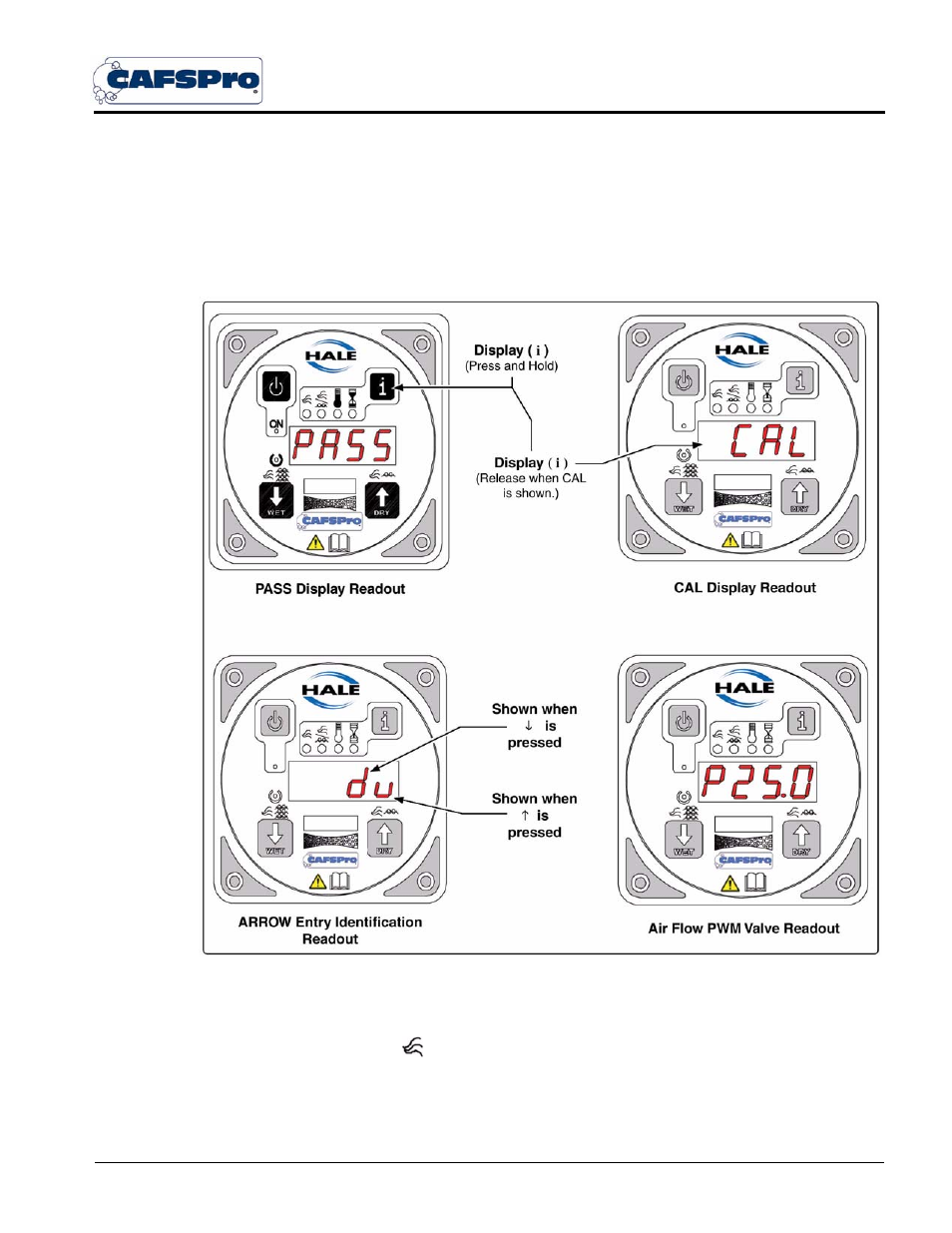

Figure 8-3: Sample CAFSPro Display Readouts -1
4.
The display shows CAL for several seconds, followed by P25.0. The
FLOW (
) LED also lights (Airflow PWM Value).
5.
On the FoamLogix display, repeat preceding steps 1 and 2.
