45 MUSCLE (Midship) Pumps Installation, Operation, and Maintenance Manual
p/n: 029-0020-63-0
Accessories / Options 

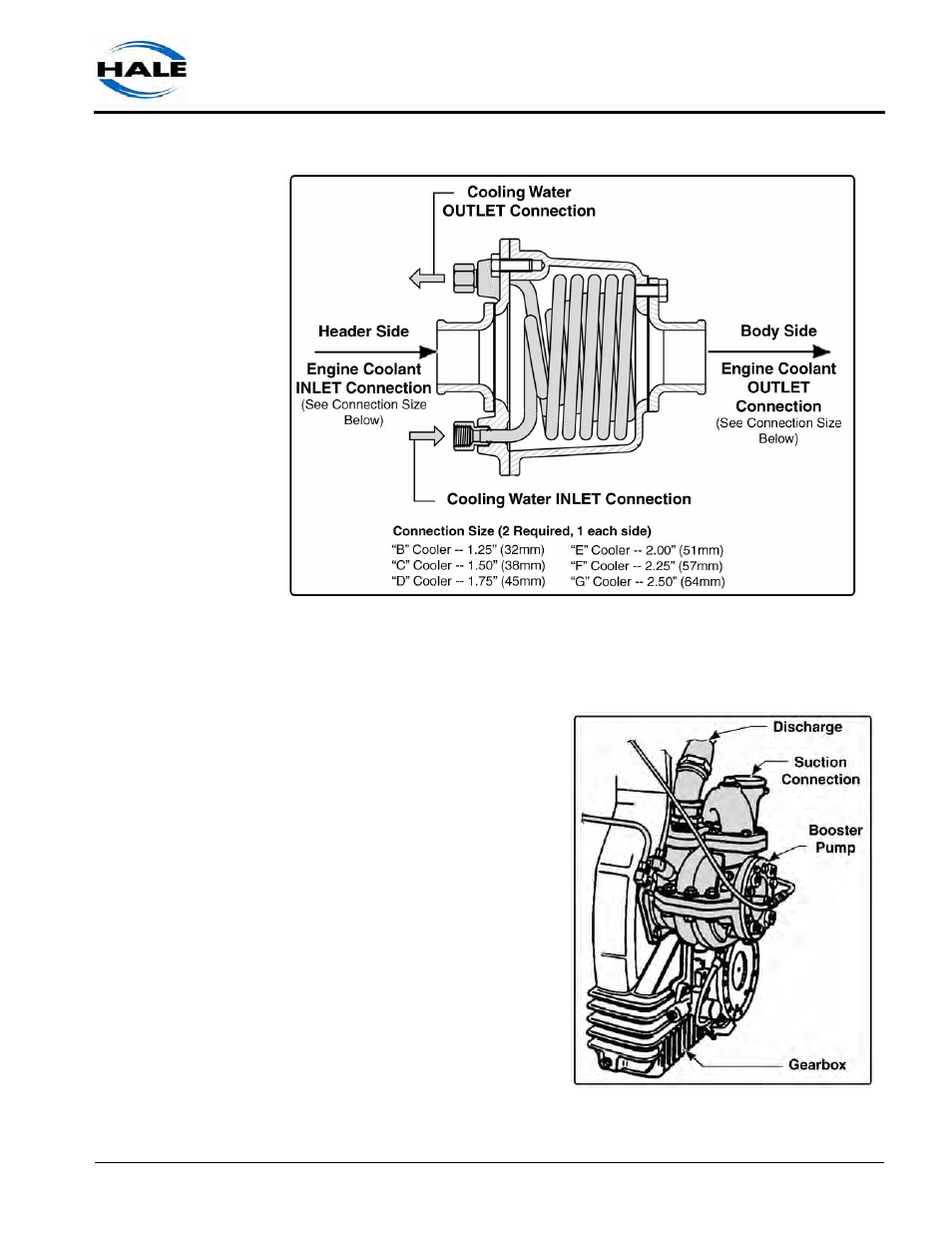

Figure 3-11: Model “K” Heat Exchanger
Booster Pump Option, 2HP
Hale 2HP Booster Pumps offer low vol-
ume and high pressure for use with the
midship pumps. The booster is ideal for
high pressure, hose real operation and is
designed for direct mounting at the acces-
sory port of the Hale “L” and “X” Series
gearboxes.
The pump is driven by the gearbox inter-
mediate gear to provide a positive drive.
Water is directed to the booster pump
through a pre-piped supply hose.
In-Line / Discharge Valves
In-Line / discharge valves (Torrent SVS
Valves) regulate the amount of water flow-
ing through and leaving a pump. Each valve
includes a locking device to permits opera-
Figure 3-12: 2HP Booster Pump Option
