3.2 AUXILIARY COOLING
Heat Exchanger, “K” Series
The Hale Model “K” heat exchangers, meet NFPA 1901 requirements. These units are
used with any size radiator and use water from the pump to help maintain the proper
temperature of the engine coolant during pumping.
Note: A valve is normally added at the operator’s panel allowing the operator to control the
amount of water supplied to the Model “K” heat exchanger.
Note: For additional information about the pressure and relief valves in your system, see the
separate manual provided with the valves.

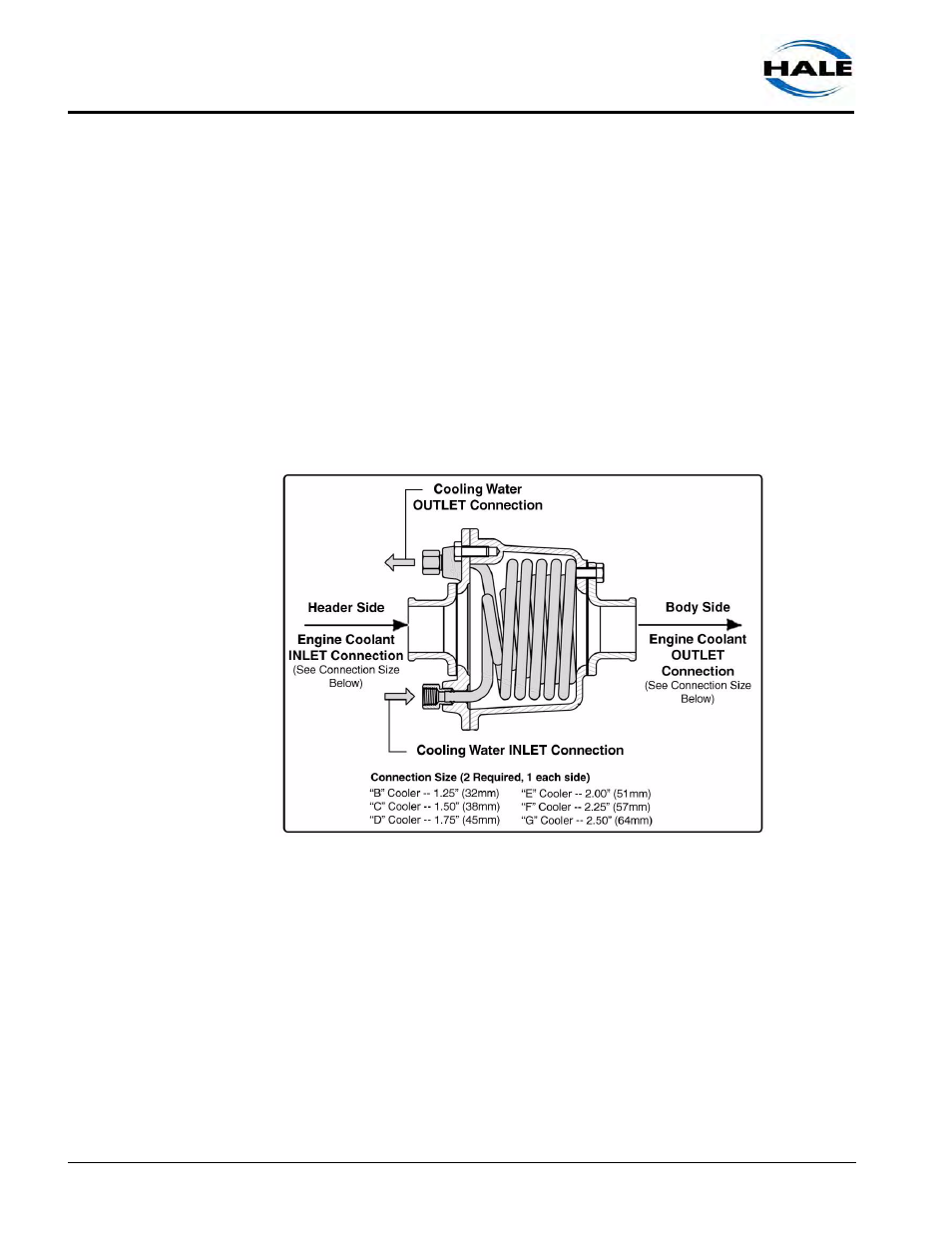

Figure 3-2: Model “K” Heat Exchanger
