Page 117
117
MUSCLE (Midship) Pumps Installation, Operation, and Maintenance Manual
p/n: 029-0020-63-0
Repair and Corrective Maintenance

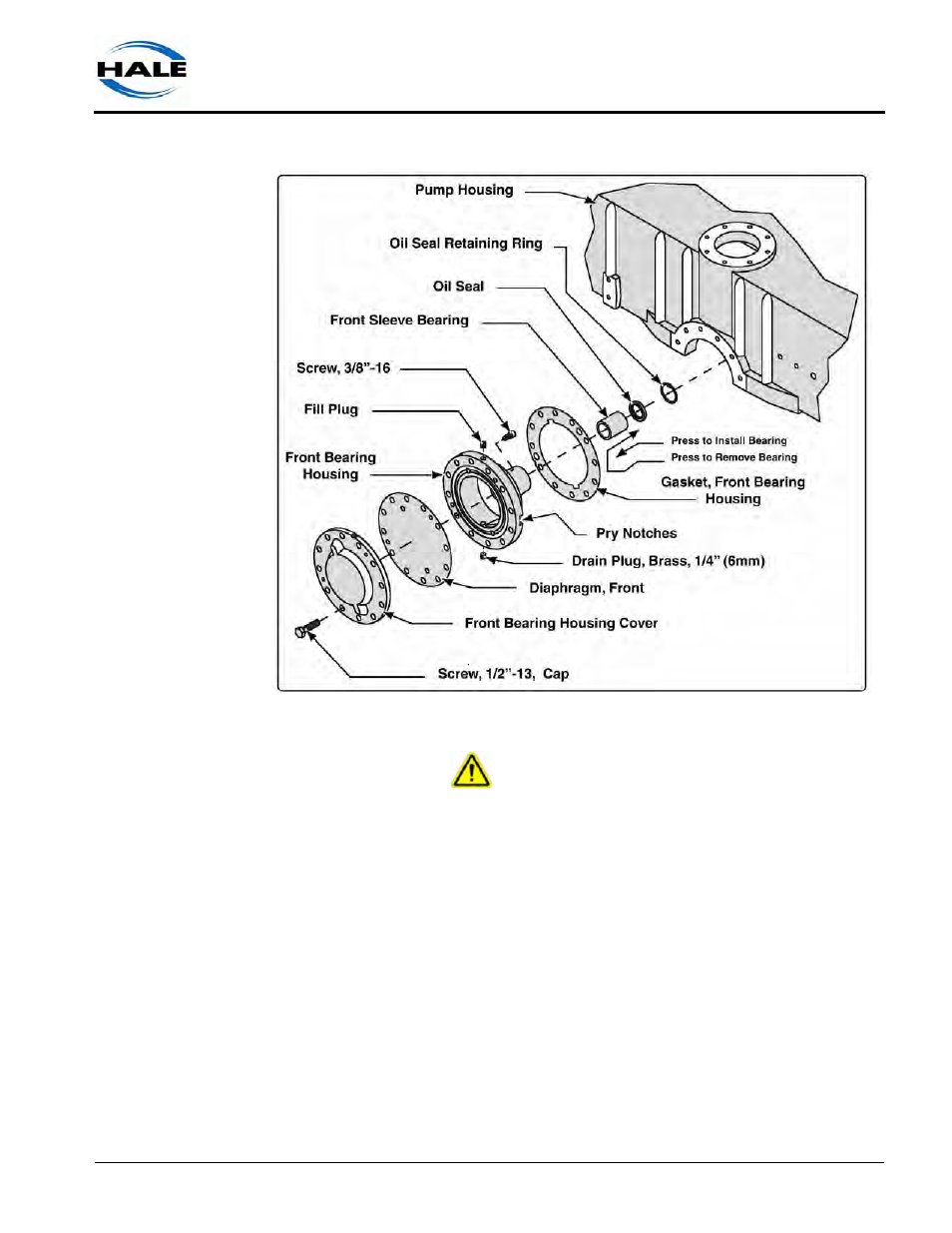

Figure 7-6: AutoLube Assembly Overview
CAUTION!
THE FRONT SLEEVE BEARING / BUSHING SEATS AGAINST A SHOULDER IN THE
AUTOLUBE BEARING HOUSING AND CAN ONLY BE REMOVED AND INSTALLED AS
DIRECTED OR SERIOUS DAMAGED COULD RESULT.
10. To replace the front sleeve bearing, a press must be used. Also see Figure 7-6:
11. Clean the inner and outer halves of the AutoLube.
12. Check for restrictions in the water passages in the bearing housing, leading to the
area between the front bearing cover and the front diaphragm. Clean as required.
13. Install a new oil seal, then install the seal retaining ring. (See Figure 7-6: “AutoL-
ube Assembly Overview,” on page 117.)
14. Align and install the diaphragm.
