Black Box Console Server user guide 81
Configuring PPP
This section describes how to configure a dial in line using PPP and includes the
following:
• PPP configuration procedure on page 82
• PPP form field descriptions on page 83 .
An example of a remote access connection using PPP, including the setup of a remote
user is described in
Configuring a dial in line on page 74 .
PPP configuration procedure
cli syntax:
set PPP line,
show PPP
line To configure a line using PPP proceed as follows;
1. Within the Line Configuration menu, select ‘PPP’.
2. Now select a line.

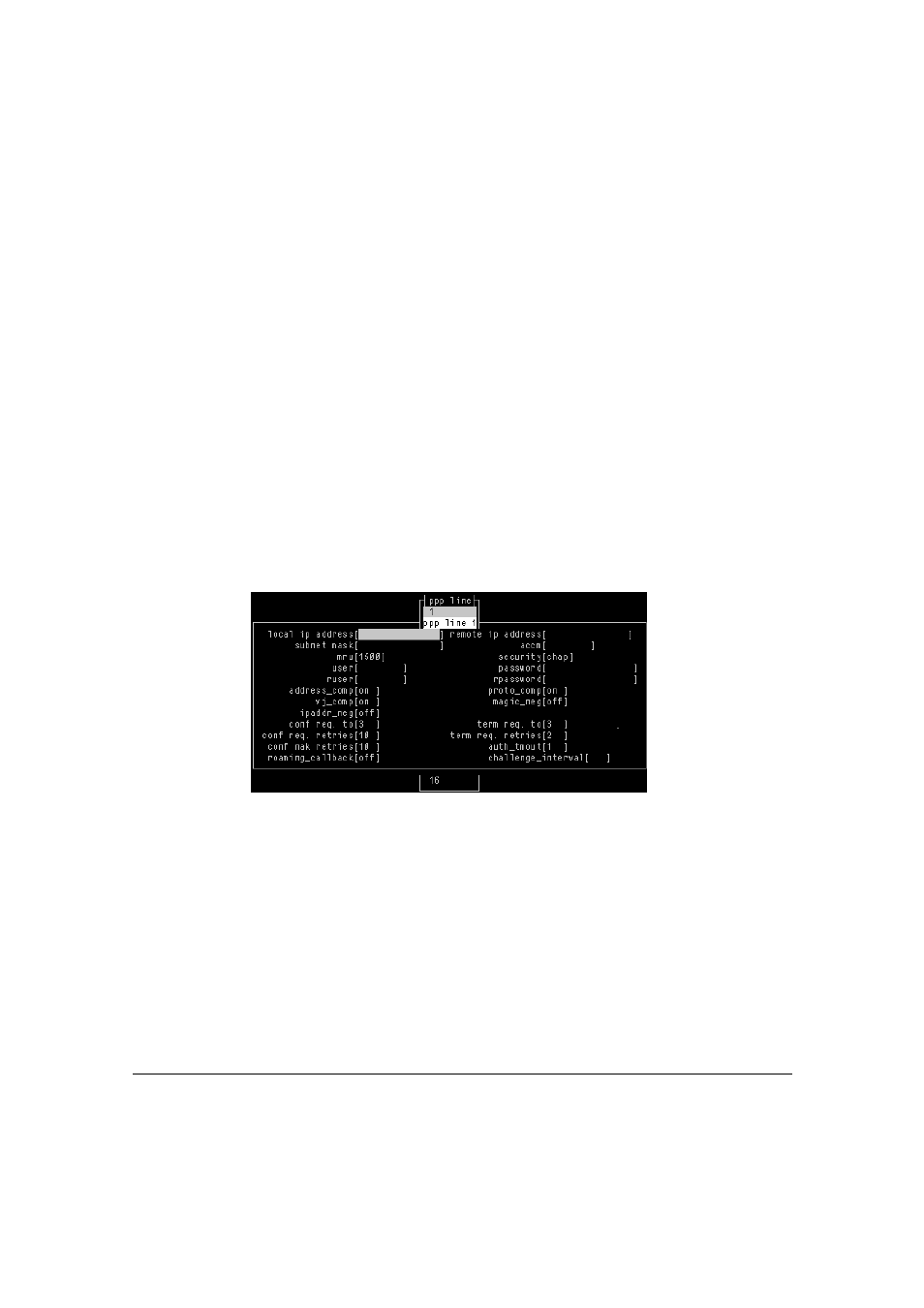

The PPP form for the selected line is now displayed as shown in the next picture
(default values shown in this example):
3. Within the PPP form set all the fields to the values you require. See PPP form
field descriptions on page 83 for details of how to set each field within the PPP
form.
