7. Configurator, Projector alignment settings

7.1.2

Lens mid position

What can be done?

When the lenses are motorized, it is possible to put the lens it is mid position via the Projector Toolset.

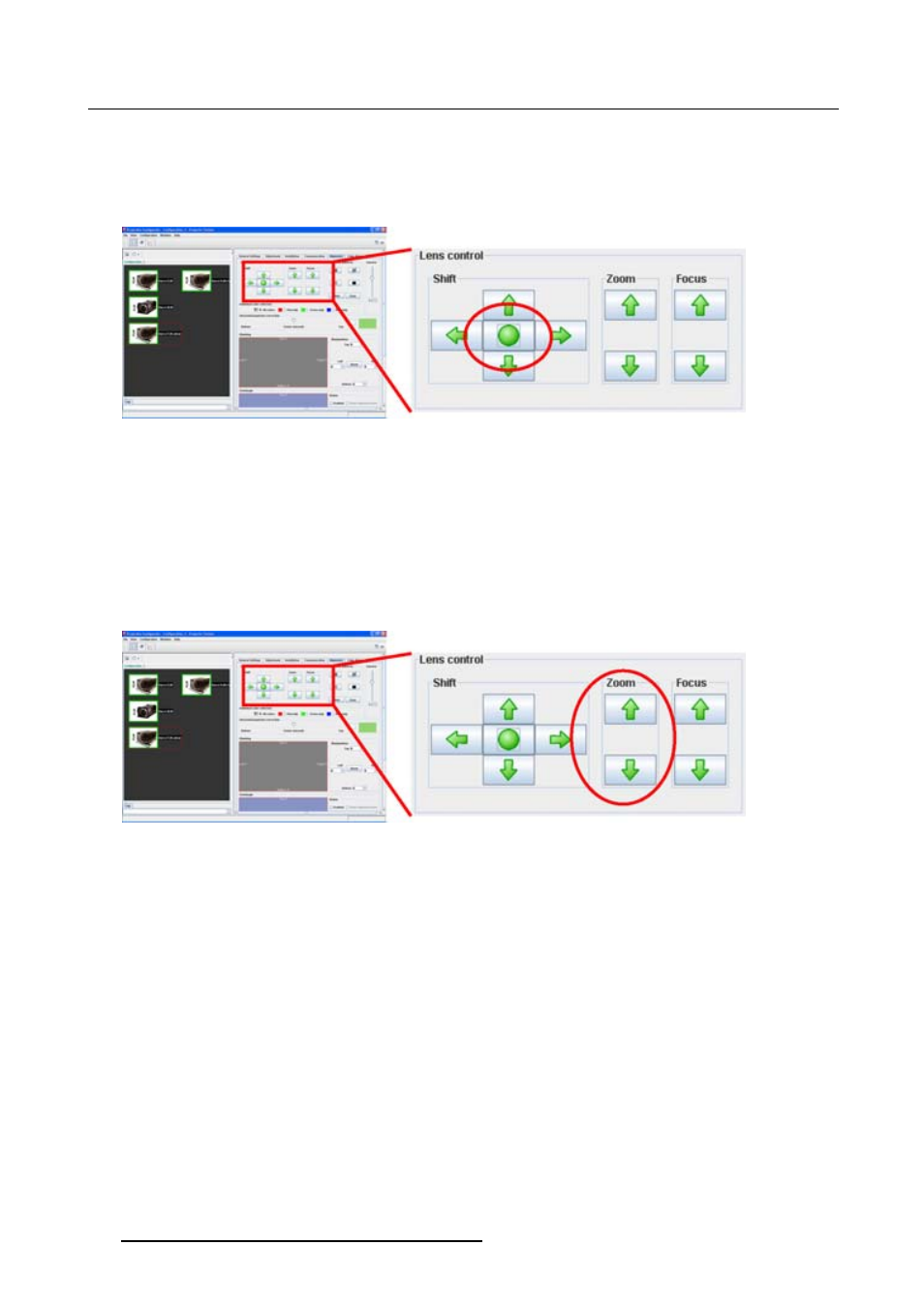

Image 7-2
Lens mid position

How to bring to mid position

1. Click on the Center button between the shift buttons.

7.1.3

Lens zoom

What can be done?

When the lenses are motorized, it is possible to zoom these lenses via the Projector Toolset.

Image 7-3
Lens zoom

How to zoom

1. Click on the up or down arrow button in the zoom pane.

7.1.4

Lens focus

What can be done?

When the lenses are motorized, it is possible to focus these lenses via the Projector Toolset.

94

R5976924 PROJECTOR TOOLSET 16/04/2009
