8. Configurator, Projector adjustment settings

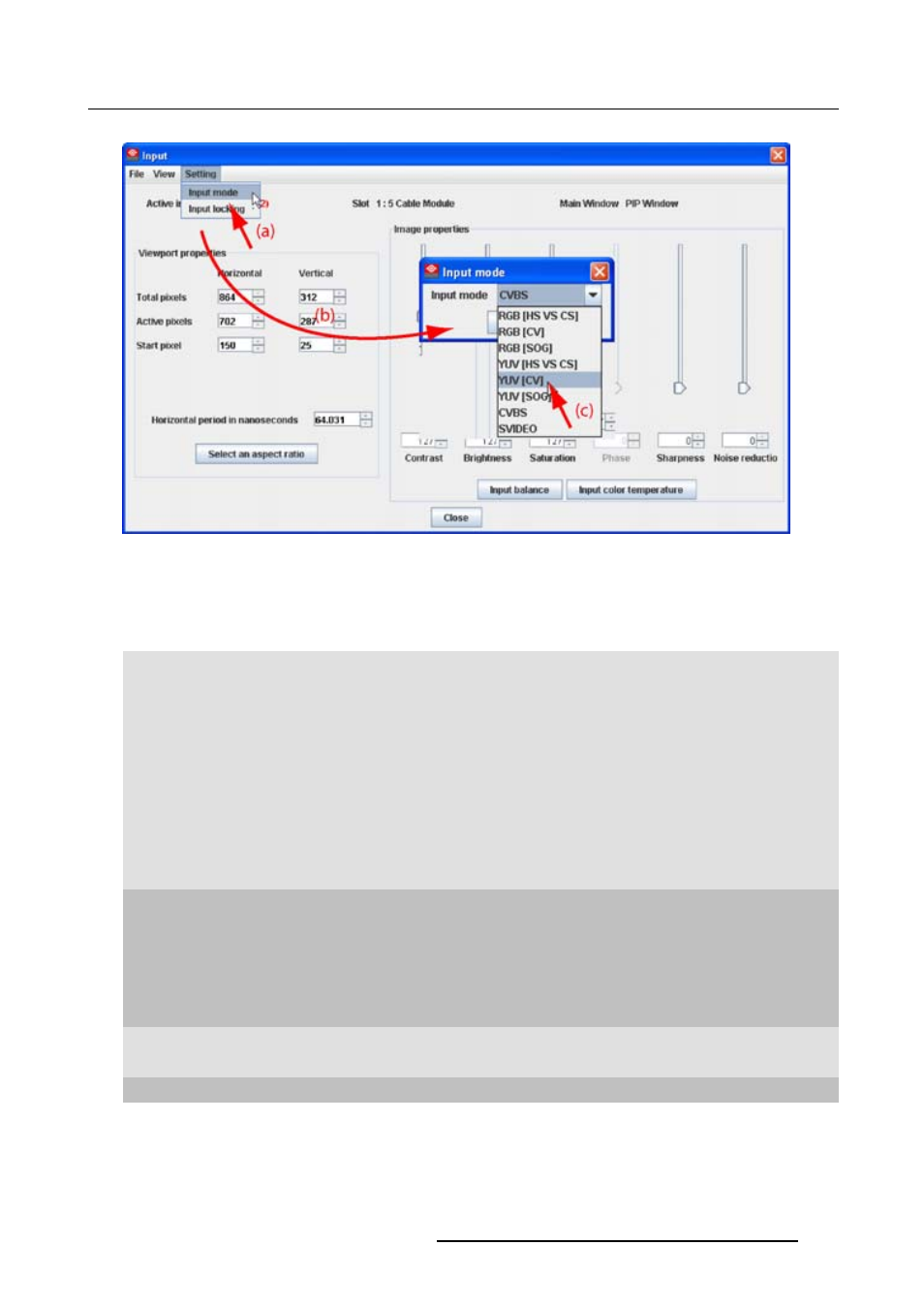

Image 8-6
Input mode selection
Possible results
Input
module Indication Description
RGB HS/VS - CS RGB input with separate horizontal and vertical sync or separate
composite sync.
RGB CV RGB input with composite video as sync signal
RGB SOG RGB input with sync on green
YUV HS/VS - CS Component video with separate horizontal and vertical sync or
separate composite sync.
YUV CV Component video with composite video as sync signal
YUV SOY Component video with sync on Y
CVBS Composite video
5 cable
S-Video Super video
RGB HS/VS - CS RGB input with separate horizontal and vertical sync or separate
composite sync.
RGB SOG RGB input with sync on green
YUV HS/VS - CS Component video with separate horizontal and vertical sync or
separate composite sync.
HBW
Data
YUV SOY Component video with sync on Y
INP1 Input 1 selected HD-SDI
- SDI
INP 2 Input 2 selected
DVI DVI Equalisation: 0 - 15
