13. Configurator, Warp User Interface

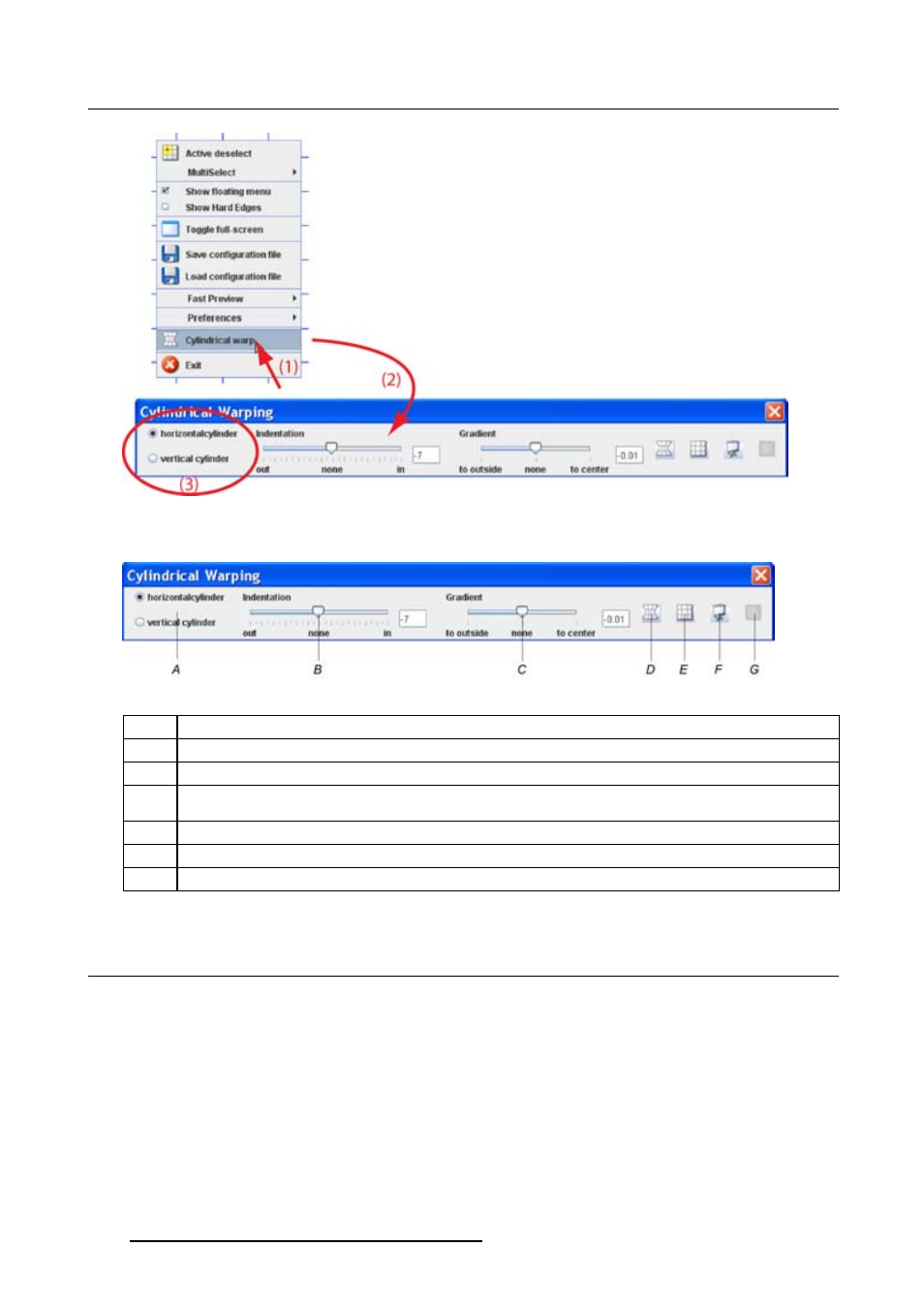

Image 13-21

Cylindrical warping menu

Image 13-22
Cylindrical warping menu

A

Type of cylinder

B

Indentation. Internal or external projection.

C

Gradient. Relative deviation on the cylinder.

D

Calculate warp button. Only used for special cases. Recalculation is normally done
automatically.

E

Reset grid.

F

Fast preview. Current settings are sent to the device.

G

Resize and center

13.15 Indentation

About indentation

The indentation indicates the way the surface is oriented to the projector.

Projecting on the outside of the cylinder : indentation value is negative.

Projecting on the inside of the cylinder : indentation value is positive.

The indentation value can vary between –300 and +300.

202
