13. Configurator, Warp User Interface
A color can be selected in 2 ways:
- Slide the slider next to the color gamut until the wanted color in the color pick field is reached, or fill
out the HSB value until the desired color is reached in the pick up field.
- Click in the color field to display the white circle. Drag that circle to the desired tint of the chosen
color.
A preview will be given in the preview pane. Continue with step 5.
4. Click on RGB tab to display the RGB selection sliders. (image 13-38)
Move the sliders until the desired color is reached, or fill out the RGB values in the input boxes.
A preview will be given in the preview pane. Continue with step 5.
5. Click on OK to apply the selected color.

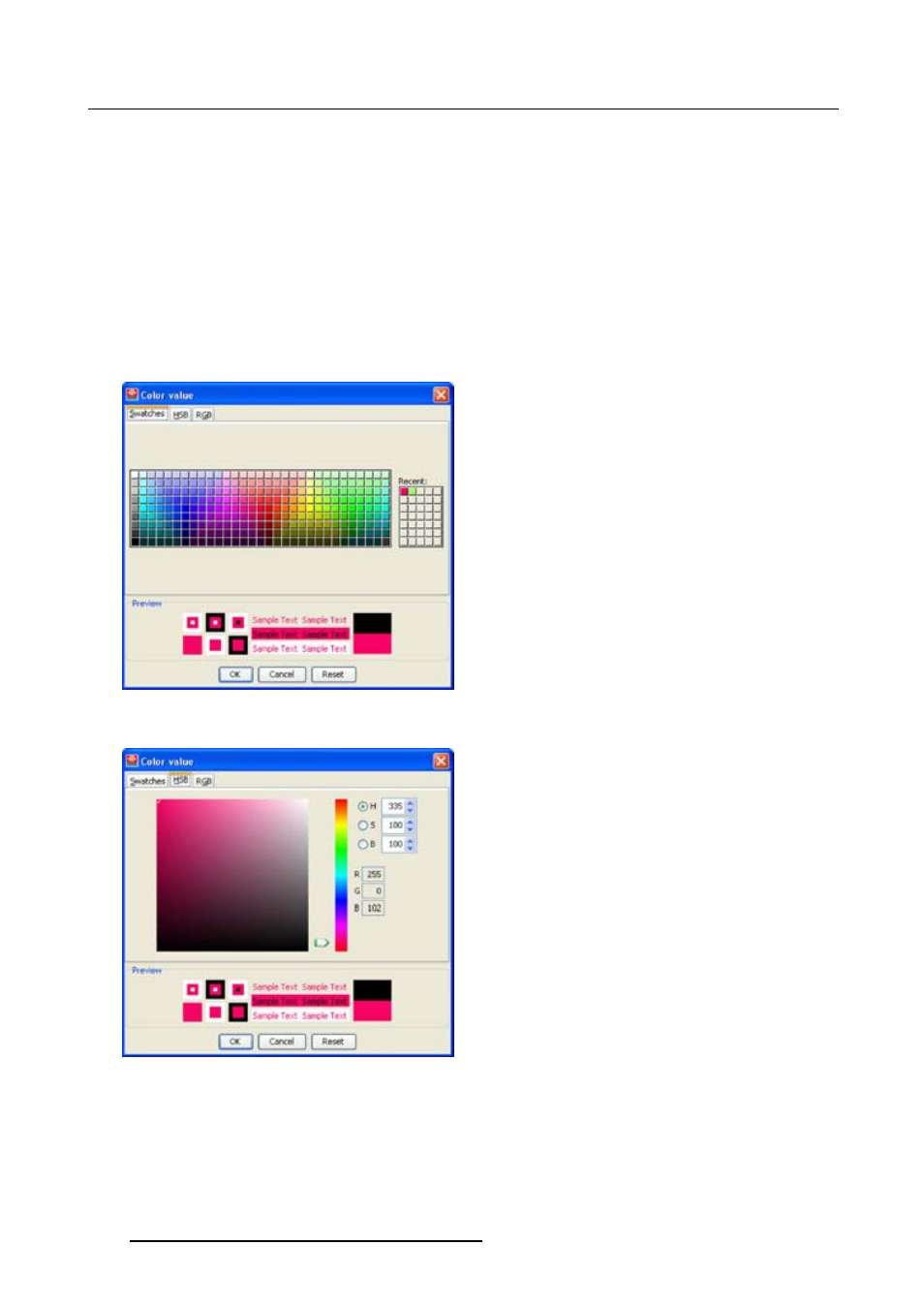

Image 13-36
Color value via swatches
Image 13-37
Color value via HSB
