7. Configurator, Projector alignment settings

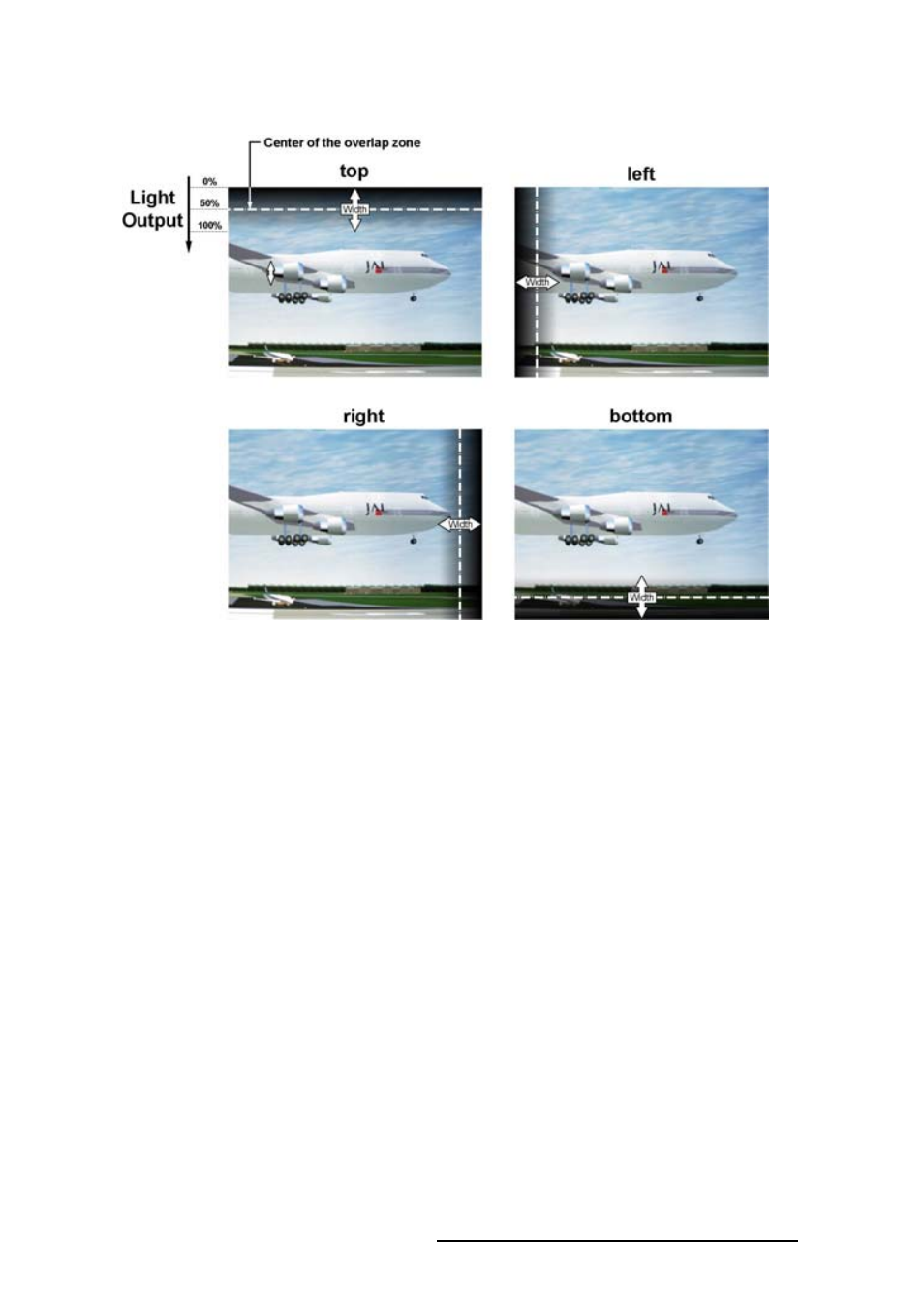

Image 7-18
Width selection
How to set a blending zone
1. Click on the up down control of the spin box of the selected blending zone and adjust until the desired
zone is reached (image 7-19)
Or,
click in the input field of the spin box of the selected blending zone and enter the desired value.
The result is indicated in the ScenergiX preview pane. The corresponding line will move in the selected
direction.
When Show alignment lines is checked, the zone indication is shown on the screen. The corresponding
zone will move in the direction of the adjustment.
R5976924 PROJECTOR TOOLSET 16/04/2009
105
