12. Configurator, Warping

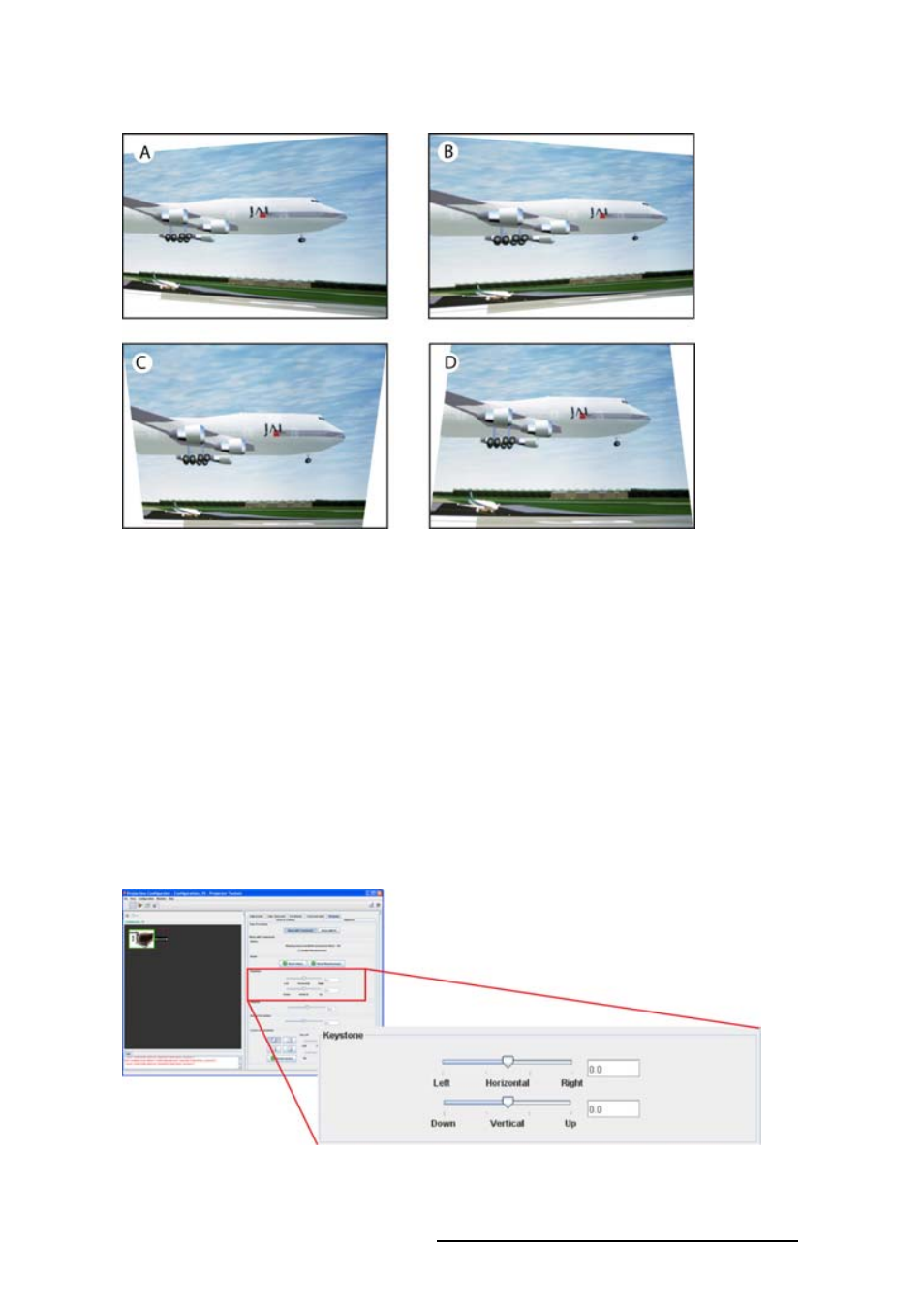

Image 12-4
Keystone adjustment
A Left keystone
B Right keystone
C Bottom keystone
D Top keystone
How to adjust the keystone
1. For horizontal keystone adjustment, click on the slider and move it to the left or to the right to adjust the
left or right keystone. (image 12-5)
Or,
click in the input field and enter the desired keystone correction value. A positive value is right keystone
correction, a negative value is left keystone correction.
2. For vertical keystone adjustment, click on the slider and move it to the left or to the right to adjust the
top or bottom keystone.
Or,
click in the input field and enter the desired keystone correction value. A positive value is top keystone
correction, a negative value is bottom keystone correction.
Image 12-5
R5976924 PROJECTOR TOOLSET 16/04/2009 177
