8. Configurator, Projector adjustment settings

How to set native resolution

1. Check the checkbox in front of Use native resolution. (image 8-2)

Checked : image displayed in native resolution. The main source is displayed with its native resolution.
PiP is switched off.

Not checked : no native resolution used

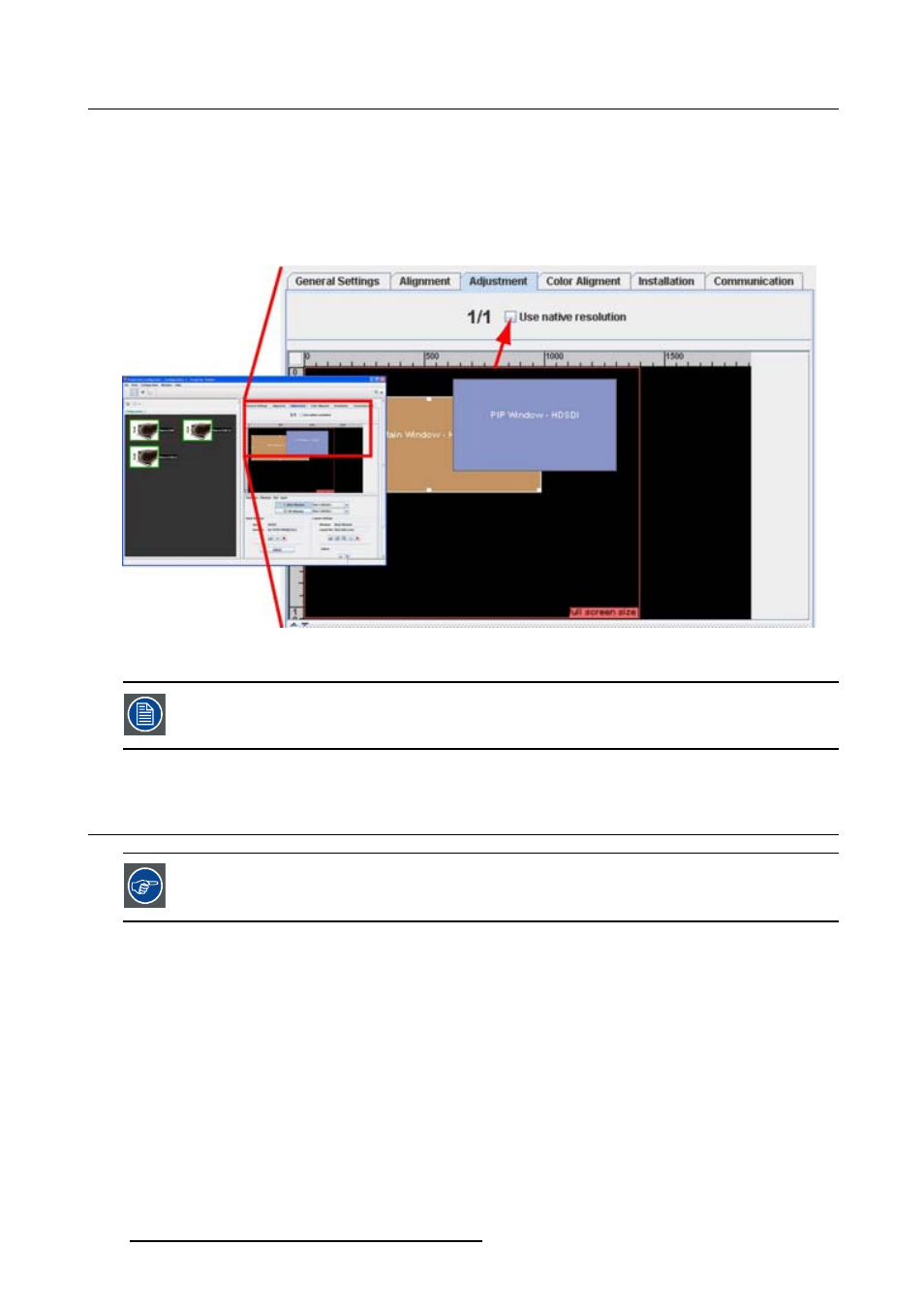

Image 8-2
Show native resolution

When Use native resolution is checked, some other menus such as Aspect ratio, timings
are greyed out.

8.2

Window and Source selection

When a certain window is not visible in the layout pane, that means that the window is
disabled.

What can be done?

The active window can be selected by clicking on a window in the window layout preview or by selecting
a window button.

The projectors can have a main window and a PiP (picture in picture) window.

Window selection

1. Click on the corresponding window in the window layout preview (a1)
