8. Configurator, Projector adjustment settings

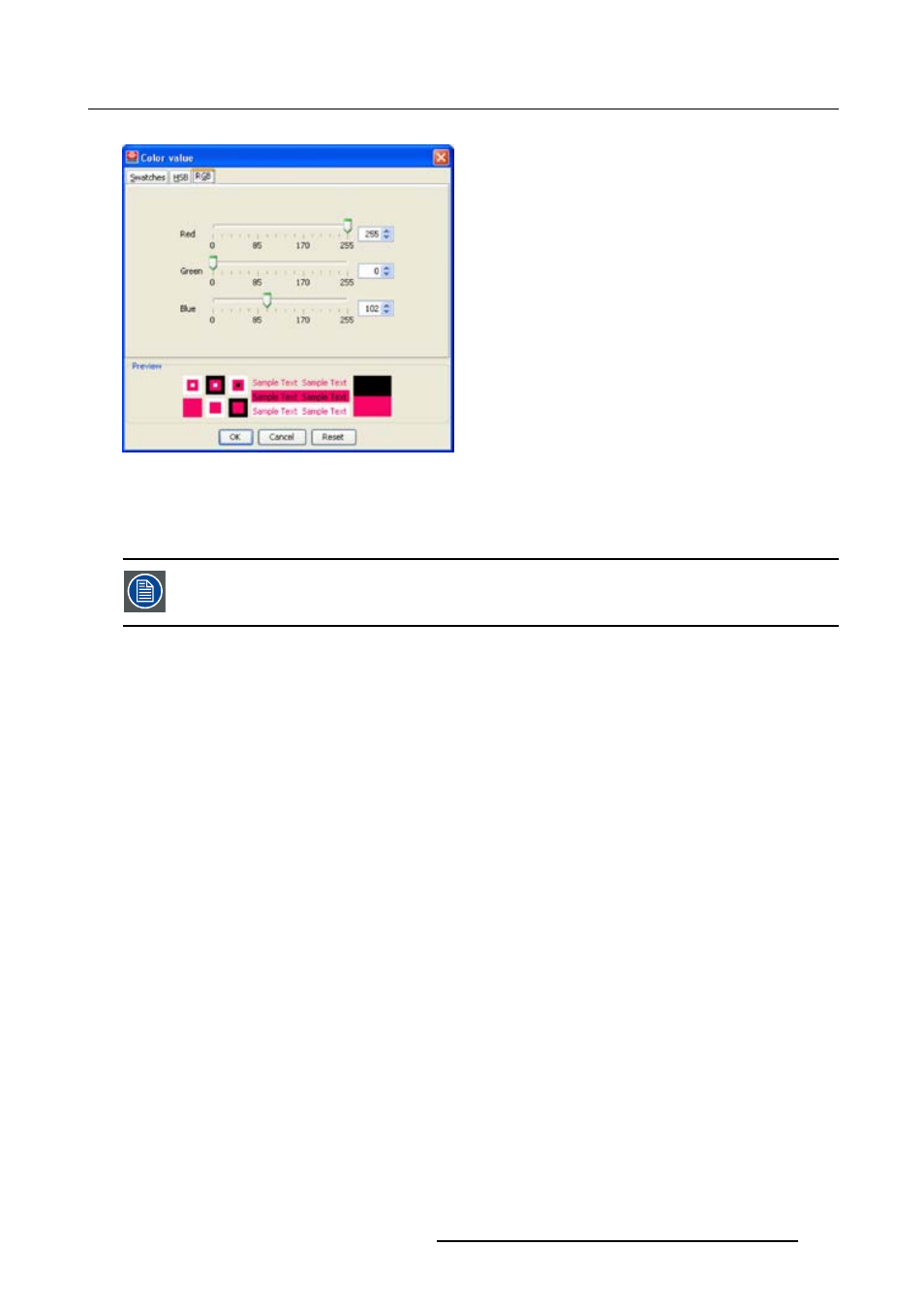

Image 8-51
Color value via RGB

8.7.13.3 Picture

To apply a picture to a window, a window must be selected first.

Insert a picture

1. Click on tab Picture (a).

The picture selection dialog box opens. (image 8-52)

2. Click on Select picture... (b).

The browse dialog box opens (c).

3. Browse to the desired image file (d) and click Open (e).

The selected picture is displayed in the preview area (f).

4. Check the desired option (g).

Scale

the picture is scaled so that the complete rectangular is filled.

Repeat

the picture is repeated as many times as necessary to completely fill the rectangular.

5. Click OK to insert the selected picture (h).
