7. Configurator, Projector alignment settings
1 Overlap area
2 DLP Leakage area
How to adjust the black level
1. Click on the slider an move this slider to the desired position. (image 7-23)
Or,
click on the up down control of the spin box of the selected color until the desired value is reached.
Or,
click in the input field of the spin box of the selected color and enter the desired value.
Adjust the black level of area A until the black level of area A, B and C are equal. (image 7-24)

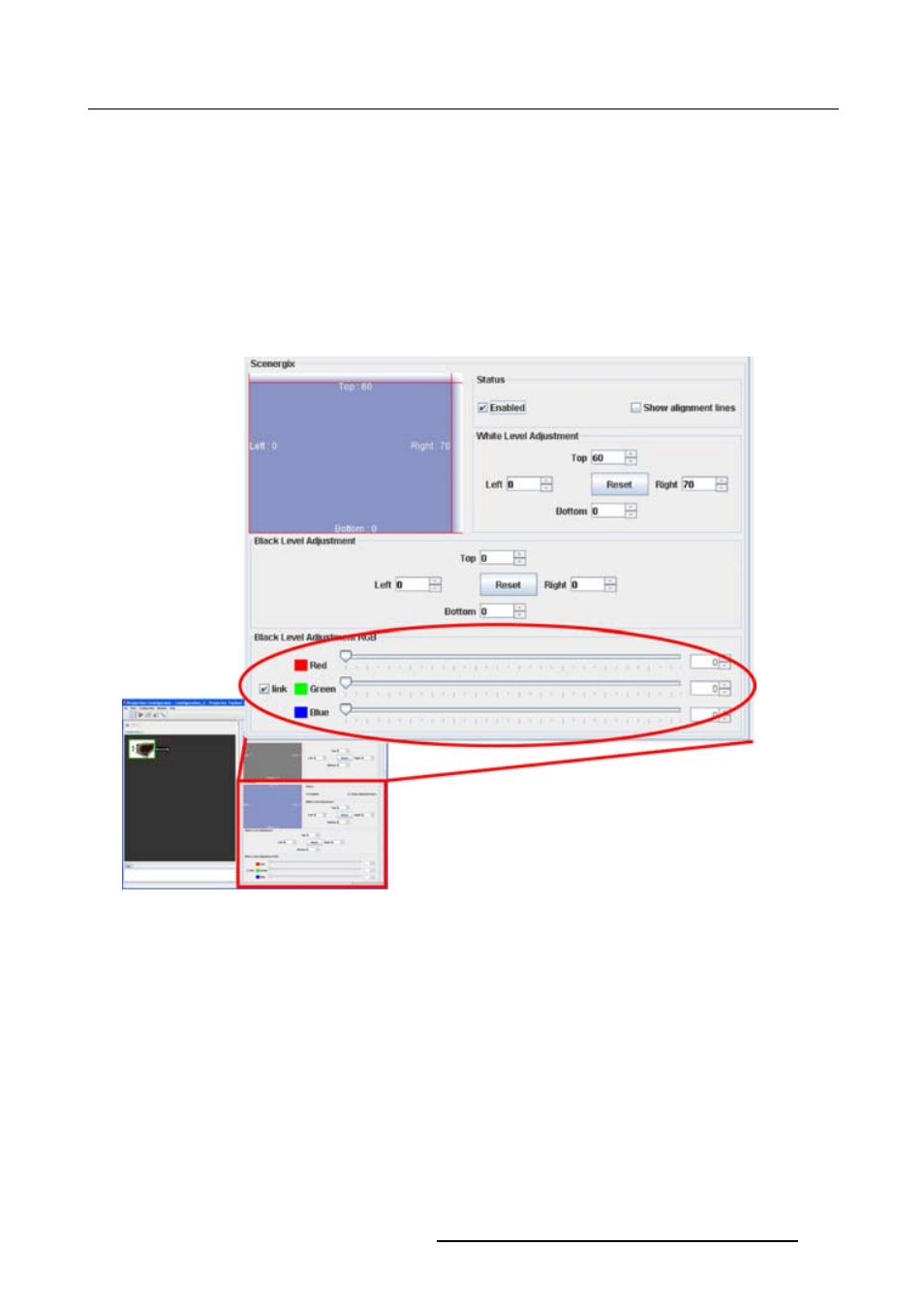

Image 7-23
Black level adjustment
