4-10
Connections
5976072 BARCOELM R12 05052000
Ay‚h‡vtГ‚ Г‚Гsy‚h‡vtÃvƒˆ‡
Floating
Non-Floating
E'ÃT’pÆryrp‡v‚
Trƒh h‡rƒp T’pÃt rr
- - - - -
Select with é or ê
then
to return.
Select with é or ê
then
to return.
Possible indication :
RGB-SS [CV] = separate sync is composite video signal H/C input.
RGB-SS [CS or HS&VS] = separate sync is composite sync or horizontal and vertical sync.
RGB-SOG = sync on green.

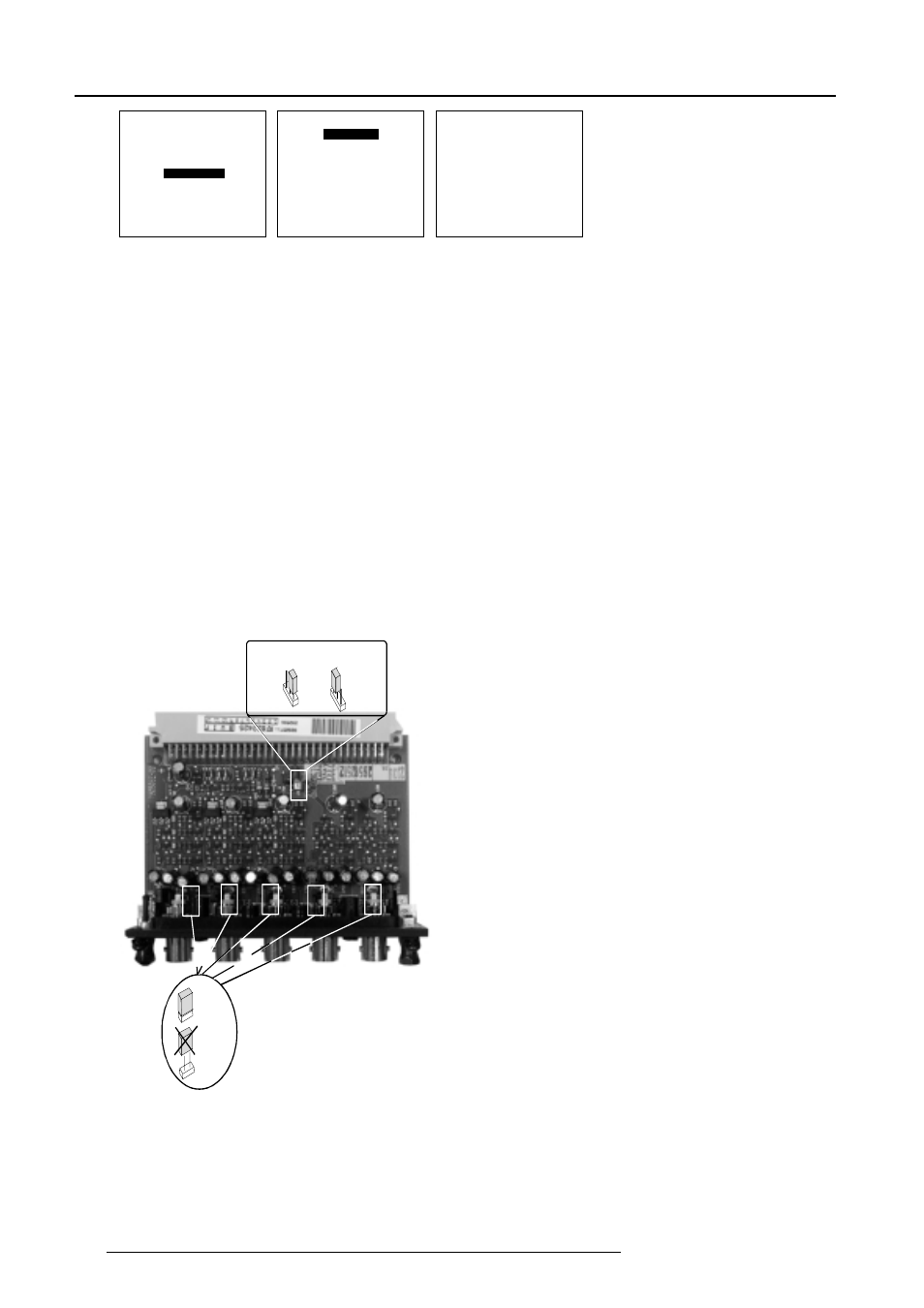

Straps on module level :
Floating or non-floating input.
Red : J3 : strap "yes" : non floating strap "no" : floating
Green : J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection : strap on module level.
J8 : see drawing
Factory preset : separate sync.
INPUT SLOTS INSTALLATION
INPUT SLOTS
800 PERIPHERAL
CONFIGURATION
OSD COLOR
INTERNAL PATTERNS
NO SIGNAL
LENS
ADJUSTMENT MODE
Select a path from below :
RANDOM ACCESS
INSTALLATION
SERVICE
Select with é or ê
to toggle
to return.
Slot Module type [Config]
1. RGB-SS [CV]
2. RGB-SOG
3. Video [Video]
4. Component Video
5. SDI
6. SDI
menu 1 menu 2 menu 3
